ASRock Motherboard Preview August 2006
The newest ASRock Motherboards

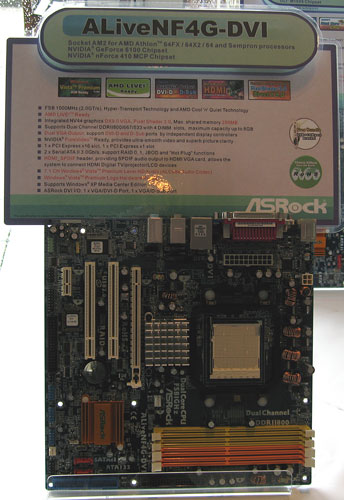

The new ASRock ALiveNF4G-DVI Motherboard ...
The new Socket AM2 Motherboard offers beside the usual PCI express Slot
owing to the
nVidia GeForce 6100/410 MCP chipset a Sub-D connection, and an integrated
DVI-D connection !
In addition the board is AMD LIVE! Ready according to ASRock and offers
hereby the optimal Multimedia platform
for Microsoft Windows XP Media center edition or Microsoft Windows Vista.
The dual monitor usage was demonstrated by the connection of two monitors,
without using any video card.
The manufacturers technical data for the ASRock ALiveNF4G-DVI Motherboard
...
Socket AM2 for AMD Athlon 64FX / Athlon 64X2 / Athlon 64 and Sempron
Processors AMD LIVE! Ready
NVIDIA GeForce 6100 Chipset
NVIDIA nForce 410 MCP Chipset
FSB 1000MHz (2.0GT/s)
Dual VGA Output: support DVI-D and D-Sub ports by independent display
controllers
Integrated NV44 graphics DX9.0 VGA, Pixel Shader 3.0, Max. shared memory
256MB
2 x Serial ATA II 3.0Gb/s, supports RAID 0, 1, JBOD and "Hot Plug"
functions
4-Phase power design
HDMI_SPDIF header, providing SPDIF audio output to HDMI VGA card, allows
the system to
connect HDMI Digital TV/projector/LCD devices.
1 x PCI Express x16 slot, 1 x PCI Express x1 slot
7.1 CH Windows Vista Premium Level HD Audio (ALC888 Audio Codec)
Supports Dual Channel DDRII800/667/533 with 4 DIMM slots, maximum capacity
up to 8GB
ASRock DVI I/O: 1 x VGA/DVI-D Port, 1 x VGA/D-Sub Port
Supports Windows XP Media Center Edition
Windows Vista Premium Logo Hardware Ready
