ASRock Motherboard Preview August 2006
The newest ASRock Motherboards
The new ASRock ALiveSATA2-GLAN Motherboard ...
Here's another new interesting feature from ASRock.
Because the current ALiveSATA2-GLAN Motherboard offers a special digital
HDMI_SPDIF audio output
to be attached directly to a HDMI VGA card and thus allows watching high-quality
HDMI videos.
The board is according to ASRock AMD LIVE! Ready and Microsoft Windows
Vista Premium tested.

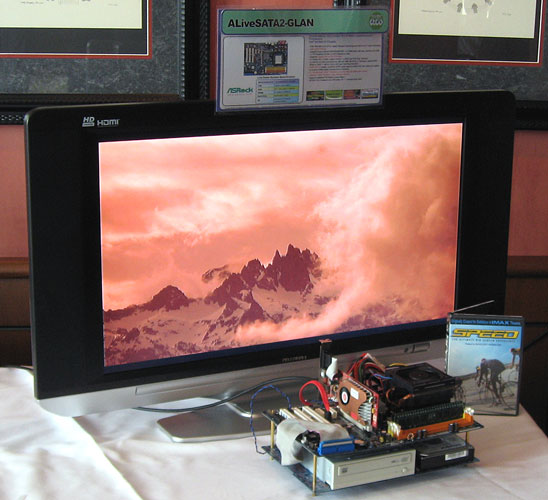

The picture of the video card was connected with the DVI-D output to
a HDMI LCD TV.
Unfortunately the HDMI demo file had to be played from the hard disk,
because there was no necessary Blue Ray
drive available for the showcase.

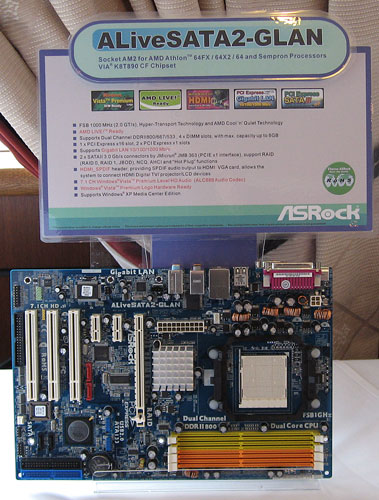

The manufacturers technical data for the ALiveSATA2-GLAN Motherboard
...
Socket AM2 for AMD Athlon 64FX / Athlon 64X2 / Athlon 64 and Sempron
Processors AMD LIVE! Ready
VIA K8T890 CF Chipset
FSB 1000MHz (2.0GT/s)
Supports Gigabit LAN 10/100/1000 Mb/s
2 x SATAII 3.0 Gb/s connectors by JMicron JMB 363 (PCIE x1 interface),
support RAID (RAID 0, RAID 1, JBOD), NCQ, AHCI and "Hot Plug"
functions
4-Phase power design
HDMI_SPDIF header, providing SPDIF audio output to HDMI VGA card, allows
the system to
connect HDMI Digital TV/projector/LCD devices.
1 x PCI Express x16 slot, 2 x PCI Express x1 slots
2 x Serial ATA 1.5 Gb/s, support RAID 0, 1, JBOD and "Hot Plug”
functions
7.1 CH Windows Vista Premium Level HD Audio (ALC888 Audio Codec)
Supports Dual Channel DDRII800/667/533 with 4 DIMM slots, maximum capacity
up to 8GB
Supports Windows XP Media Center Edition
Windows Vista Premium Logo Hardware Ready
