ASRock Motherboard Preview August 2007
The newest ASRock Motherboards

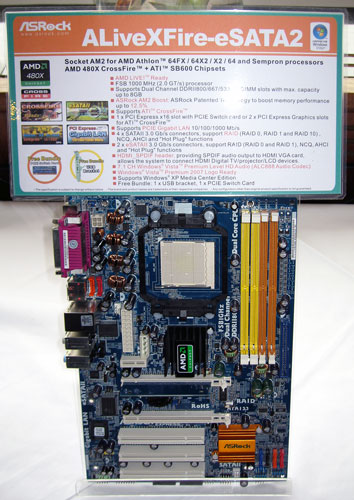

The new ASRock ALiveXFire-eSATA2 Motherboard ...
ASRock's ALiveXFire-eSATA2 supports thanks to the AMD 480X CrossFire chipset
two
AMD/ATI PCI Express
video cards in CrossFire mode.

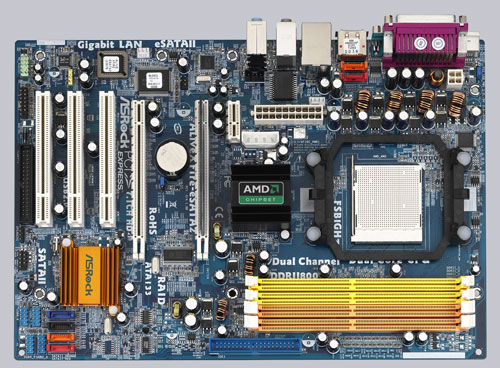

Here's another picture of the ASRock ALiveXFire-eSATA2 Motherboard ...
The manufacturers technical data for the ASRock ALiveXFire-eSATA2 Motherboard ...
- Socket AM2 for AMD Athlon 64FX / 64X2 / X2 / 64 and Sempron processors
- AMD 480X CrossFire Chipset
- ATI SB600 Chipset
- AMD LIVE! Ready
- Supports ATI CrossFire
- Bundled PCIE Switch card: allows better flexibility to choose
between
one PCI Express x 16 slot and
two PCI Express Graphics
slots for ATI CrossFire
- 1 x PCI Express x16 slot with PCIE Switch card
or 2 x PCI Express Graphics slots for ATI CrossFire
- Supports Dual Channel DDRII800/667/533, 4 x DIMM slots, with
max. capacity up to 8GB
- ASRock AM2 Boost: ASRock Patented Technology to boost
memory performance up to 12.5%
- Supports Gigabit LAN 10/100/1000 Mb/s
- 4 x SATAII 3.0 Gb/s, support RAID (RAID 0, RAID 1 and RAID 10),
NCQ, AHCI and Hot Plug functions
- 2 x eSATAII 3.0 Gb/s connectors (shared with 2 SATAII ports),
support RAID 0/1, NCQ, AHCI and Hot Plug
- HDMI_SPDIF header, providing SPDIF audio output to HDMI VGA
card, allows the system to connect HDMI Digital TV/projector/
LCD devices
- 7.1 CH Windows Vista Premium Level HD Audio (ALC888 Audio
Codec)
- Windows Vista Premium 2007 Logo Hardware Ready
- Supports Windows XP Media Center Edition
- Free Bundle: 1 x USB bracket
All pictures and article are subject to the copyright 2007 of www.ocinside.de
|
