| Name |
Chrome Orb |
Size over all
L/B/H |
o 70/80/50 mm
The heatsink is a little bit larger than the socket and e.g.
don't fit on the Abit KT7. |
| Cooling output |
++ 25 CFM (~5000 rpm) |
| Noise level |
+++ 29 dB (A)
It's possible to sleep well next to this fan ;-)
Listen to the sound: |
| Mounting |
++ Because of the big clip it's
easy to mount this fan, but be careful while removing
the fan not to scrape off the plastic portion of the socket
|
| Cooling results |
-- The cooling results were 48°C and 54°C at 1.9 Volt core voltage very bad
in comparison to most other coolers. |
| General impression |
+ I think this fan is only a
good choice for a maximum (non overclocked) CPU speed of 900
MHz.
Higher CPU rates or higher CPU voltages need very good case
cooling if you plan to use the Chrome Orb.
The cheap price and good design can't compensate for the cooling
results.
And because of the fixed metal clip (and bad cooling) it's
impossible to use it
with a Peltier Element.
|

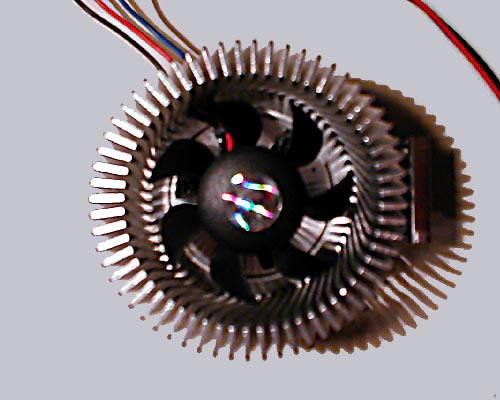

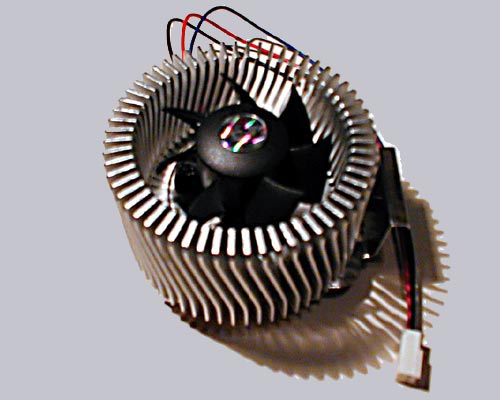

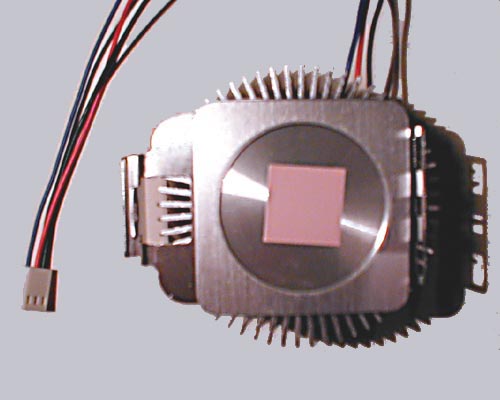

| Picture |
|
