| Name | Cooler Master CH5-5K12 |
| Size over all L/B/H |
+++ 61/50/50 mm The heatsink size isn't bigger than the Sockel. |
| Cooling output | o 11 CFM (~5500 rpm) |
| Noise level | + 35 dB (A) Even though the rotation speed is high the sound is not too loud. The cause could be the low CFM. Listen to the sound: |
| Mounting | ++ The metall clip is not good arrested
so the clip move to both sides but because of the low clip tension it's still easy to fit this heatsink. |
| Cooling results | -- 50° C at 1,75 Volt CPU voltage and 54° Celsius at 1,90 Volt. |
| General impression |
o This peculiar heatpipe construction
looks like a small refrigerator and i had to wait |

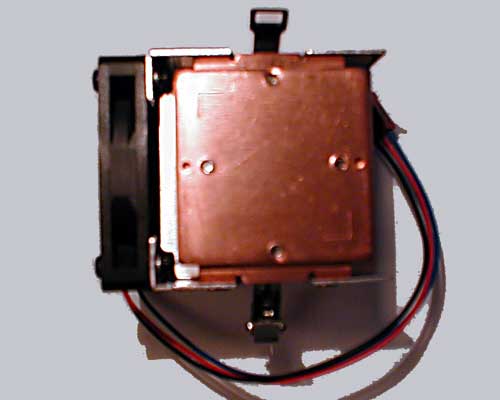

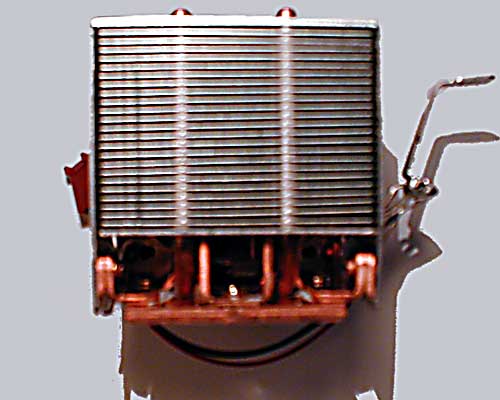

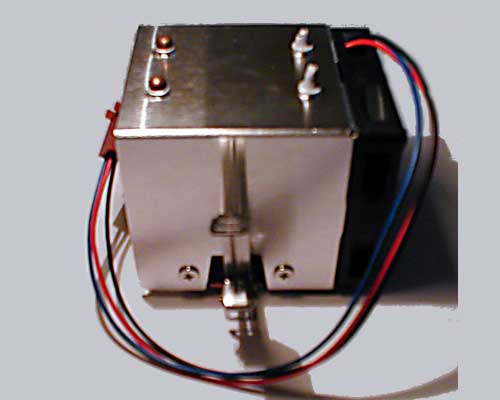

| Picture |
|
