ASRock 4Core1333-Viiv Motherboard Preview


This article shows you a preview of the current ASRock 4Core1333-Viiv Mainboard.

ASRock Motherboard Preview August 2007 The newest ASRock Motherboards

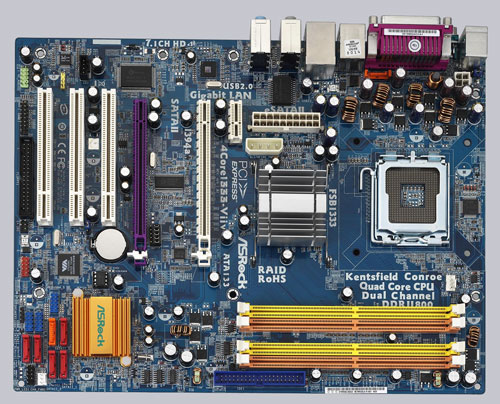

The new ASRock 4Core1333-Viiv Motherboard …

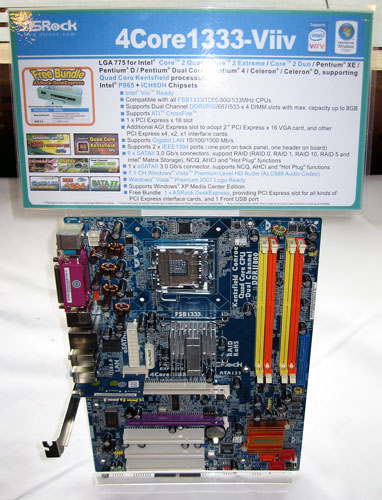

Here’s another picture of the ASRock 4Core1333-Viiv Motherboard …

The manufacturers technical data for the ASRock 4Core1333-Viiv Motherboard …

– LGA 775 for Intel Core 2 Quad / Core 2 Extreme / Core2 Duo / Pentium XE / Pentium D / Pentium Dual Core / Pentium 4 / Celeron / Celeron D, supporting Quad Core Kentsfield processors – Intel Viiv Ready – Compatible with all FSB1333/1066/800/533MHz CPUs – Supports Dual Channel DDRII800/667/533 x 4 DIMM slots, with max. capacity up to 8GB – Supports ATI CrossFire – 1 x PCI Express x 16 slot – Additional AGI Express slot to adopt 2nd PCI Express x 16 VGA card, and other PCI Express x4, x2, x1 interface cards – Supports Gigabit LAN 10/100/1000 Mb/s – Supports 2 x IEEE1394 ports (one port on back panel, one header on board) – 6 x SATAII 3.0 Gb/s, support RAID (RAID 0/1, 10, 5 and Intel Matrix Storage), NCQ, AHCI and Hot Plug – 1 x eSATAII 3.0 Gb/s (shared with 1 SATAII port), supports NCQ, AHCI and Hot Plug function – 7.1 CH Windows Vista Premium Level HD Audio (ALC888 Audio Codec) – Windows Vista Premium 2007 Logo Ready – Supports Windows XP Media Center Edition
