ASRock ALiveNF5-eSATA2+ Motherboard Preview


This article shows you a preview of the current ASRock ALiveNF5-eSATA2+ Mainboard.

ASRock Motherboard Preview August 2007 The newest ASRock Motherboards

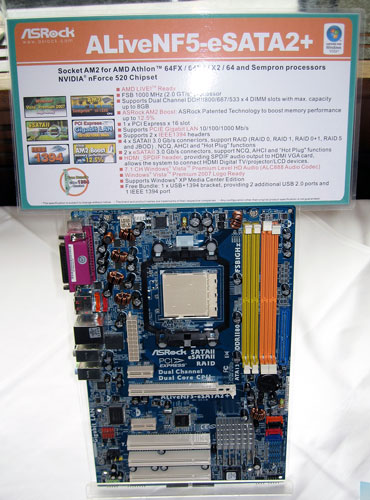

The new ASRock ALiveNF5-eSATA2+ Motherboard …

The ASRock ALiveNF5-eSATA2+ is based on nVidia’s nForce 520 chipset and is already tested on ocinside.de Here’s the Overclocking Review of the ASRock ALiveNF5-eSATA2+ Mainboard.

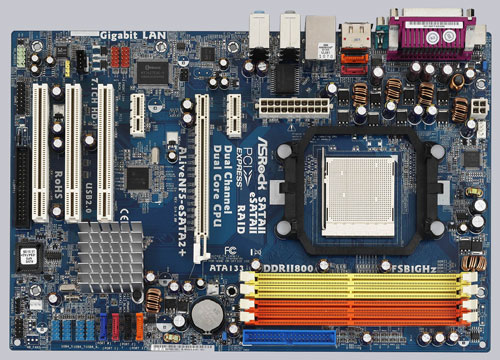

Here’s another picture of the ASRock ALiveNF5-eSATA2+ Motherboard …

The manufacturers technical data for the ASRock ALiveNF5-eSATA2+ Motherboard …

Socket AM2 for AMD Athlon 64FX / 64X2 / X2 / 64 and Sempron processors AMD LIVE! Ready Supports Dual Channel DDRII800/667/533, 4 x DIMM slots, with max. capacity up to 8GB ASRock AM2 Boost: ASRock Patented Technology to boost memory performance up to 12.5% 1 x PCI Express x16 slot Supports PCIE Gigabit LAN 10/100/1000 Mb/s 4 x SATA II 3.0 Gb/s, support RAID (RAID 0/1, RAID 0+1, RAID 5 and JBOD), NCQ, AHCI and Hot Plug 2 x eSATA II 3.0 Gb/s connectors (shared with 2 SATAII ports), NCQ, AHCI and Hot Plug 2 x IEEE 1394 headers HDMI_SPDIF header, providing SPDIF audio output to HDMI VGA card, allows the system to connect HDMI Digital TV/ projector/LCD devices 7.1 CH Windows Vista Premium Level HD Audio (ALC888 Audio Codec) Windows Vista Premium 2007 Logo Ready Supports Windows XP Media Center Edition Free Bundle: 1 x USB+1394 bracket, providing 2 additional USB 2.0 ports and 1 IEEE 1394 port
