BitFenix Colossus Venom Review

The technical data …

Form factor: The BitFenix Colossus Venom Mid Tower is designed for ATX and Micro ATX motherboards and offers enough space up to E-ATX motherboards with a size of 305×330 mm.

Dimensions: The overall height is 565 mm, the width is 245 mm and the depth is 590 mm.

Weight and material: The BitFenix Collossus case is made of steel with plastic parts and has a special softouch surface. Its basic weight is approximately 15.5 kg which is approx. three times heavier than conventional Midi-Tower cases. The shipping weight including packing is approximately 18 kg.

Drive bays: Overall there are 5x 5.25 inch front drive bays and one of them can be optional used as 3.5 inch front drive bay with the included 3.5″ mounting bracket and front bezel. Additionally there are 7x 3.5″ internal drive bays for hard disks available.

Slots: It’s possible to mount up to 8 expansion cards.

Cooling: The BitFenix Colossus Venom case is already equipped with two very big 230mm fans, which can be controlled with the integrated PWM fan controller. It’s possible to connect up to six fans with altogether up to 15W to the integrated PWM fan controller. 1x 230 mm fan in the chassis front, 1x 230 mm fan at the top of the case Optional it’s possible to mount 1x 140/120 mm fan at the case bottom and 1x 140/120 fan at the back of the case.

Miscellaneous: On the top of the case is a power button with LED, a reset button with LED, a light mode button, a light color button, a variable resistor for the fan controller, 2x USB 2.0 connectors, 2x USB 3.0 connectors, one eSATA connector and 2x 3.5mm jacks for a headset. Additionally it’s possible to lock the top box with the connectors.

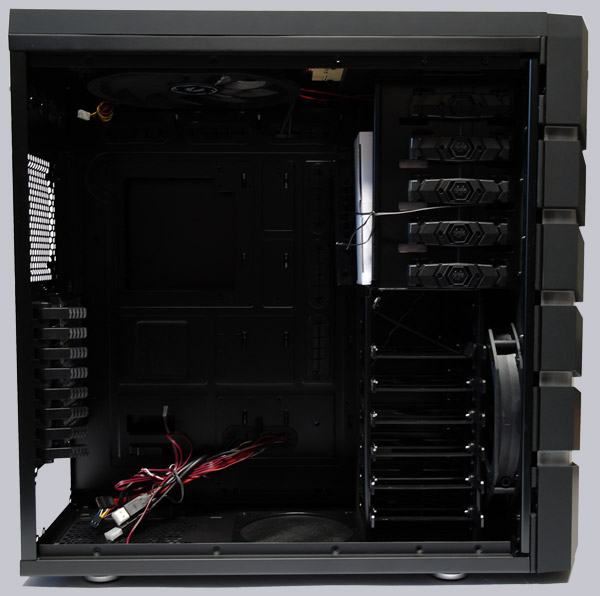

Here is a first view inside of the case:

Layout, Design and Features – The BitFenix Colossus Venom Case Exterior …
