Enermax Platimax D.F. 600W Power Supply Review

The technical data …

Manufacturer Enermax
Description Platimax D.F. 600W EPF600AWT
EAN 4713157722300
Dimensions 86 mm x 150 mm x 160 mm (HxWxD)
Weight 1800 grams
Color Black
Connections Power supply
2x PCI-E 8 pin.
2x CPU 8 pin. combinated plug
4x IDE/SATA 6 pin.
1x 20/24 pin. motherboard
1x 4 pin. CPU separate power supply
Cable 2x PCI-E two connectors 56 cm / 70 cm
2x SATA four connectors 45 cm / 58 cm / 73 cm / 89 cm
1x Motherboard 20/24 pin. 58 cm (52 cm 90° connectors)
1x CPU 2 x 4 pin. 72 cm / (67 cm 90° connectors)
2x Molex 4 pin. 45 cm / 60 cm / 75 cm
1x Floppy 4 pin. to Molex 4 pin. 14 cm
Protection PFC up to 99%
High Value 105° industrial capacitors for stabile voltages
Overcurrent, overvoltage, undervoltage DC, overload, short circuit, as well as unforeseen power surges
(OCP 3,3V/5V, OVP, UVP, OPP, SCP und SIP).
Voltage/current +12V 50A
-12V 0.3A
+5v 15A
+3,3V 16A
+5Vsb 2.5A
Efficiency 80 Plus Platinum
Up to 93% at 230V between 20-100% load
Others 5 years warranty
Dust Free Rotation – DFR fan with counter spin MTBF 100.000 hours
fully modular
Sleemax sleeved cables
ErP Lot 6 2013 ready!
The Platimax D.F. Supports compliance with the EU-Ecodesign Directive ErP/EuP Lot 6 2013 for computer systems < 0.5W in standby mode in combination with an ErP-Lot 6-compliant mainboard through highly efficient 5 volt standby rail (+ 5Vsb).

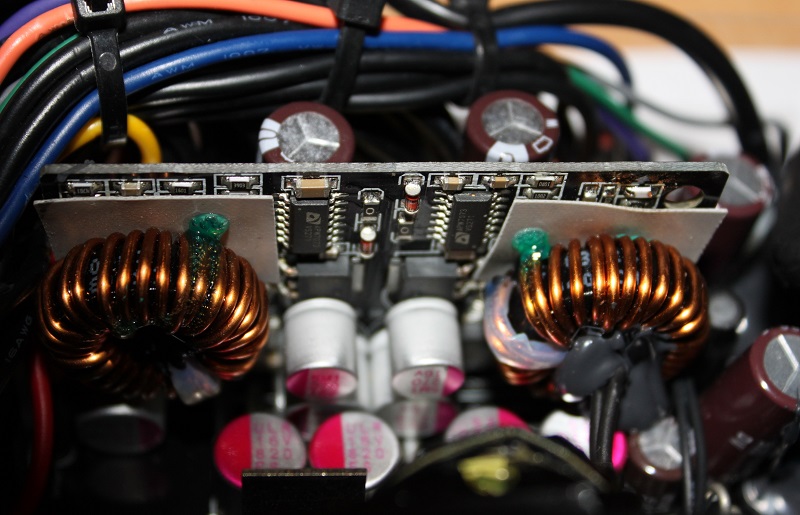

enermax_platimax_df_600w_17

Enermax Platimax D.F. power supply layout, design and features …
