BIOS and overclocking …

Let us continue with the BIOS / UEFI Setup options and the UEFI overclocking. After switching on the PC, press the Del or F2 key to access the UEFI setup.

The ASRock H470 Steel Legend UEFI BIOS has a graphical interface that allows intuitive operation with a mouse or can still be operated conventionally with a keyboard.

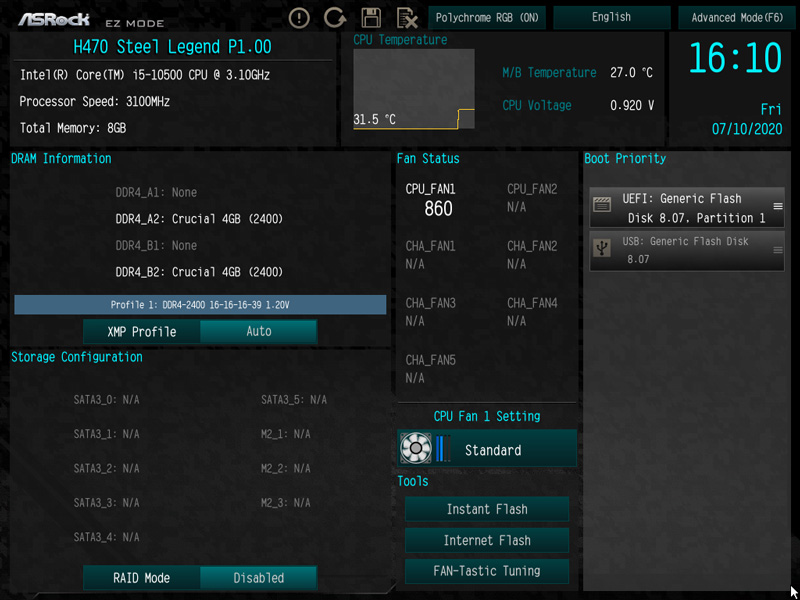

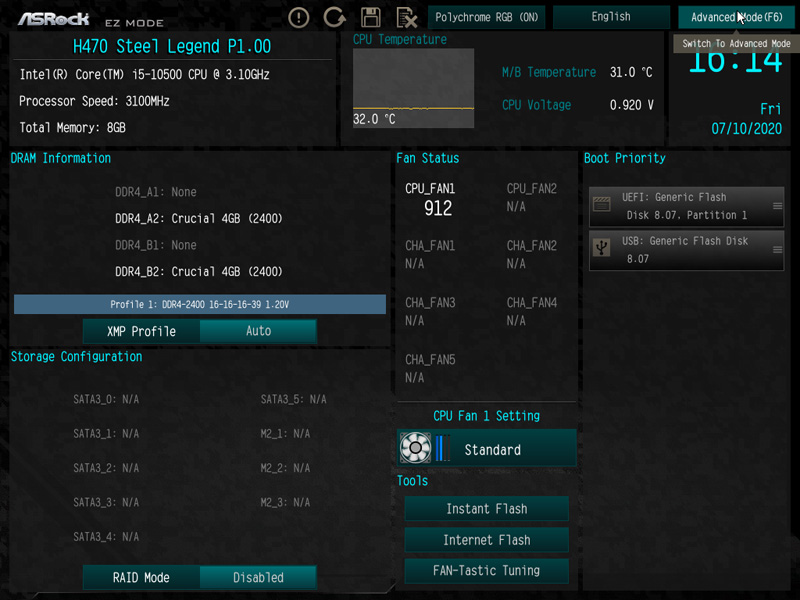

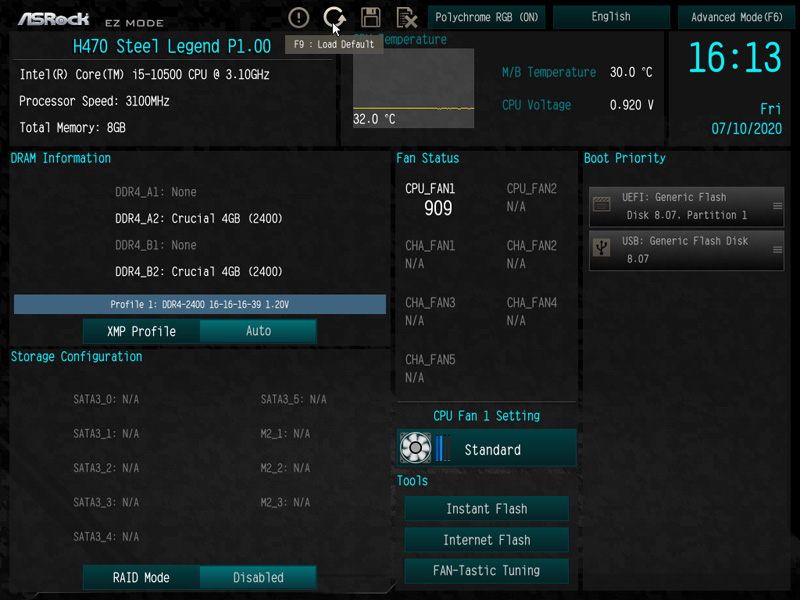

There is, as usual with the latest ASRock Intel motherboards, the ASRock EZ Mode – thus Easy Mode – which offers a clear entry page with many important information and still doesn’t look overloaded. To the basic information like time, date, CPU temperature, motherboard temperature, CPU voltage, first details about the hardware, fan speeds, hard disk population, RAID mode and fan settings with one click. New in the ASRock H470 Steel Legend is also the CPU temperature display as diagram.

The original Tools page has been consolidated in the lower right area.

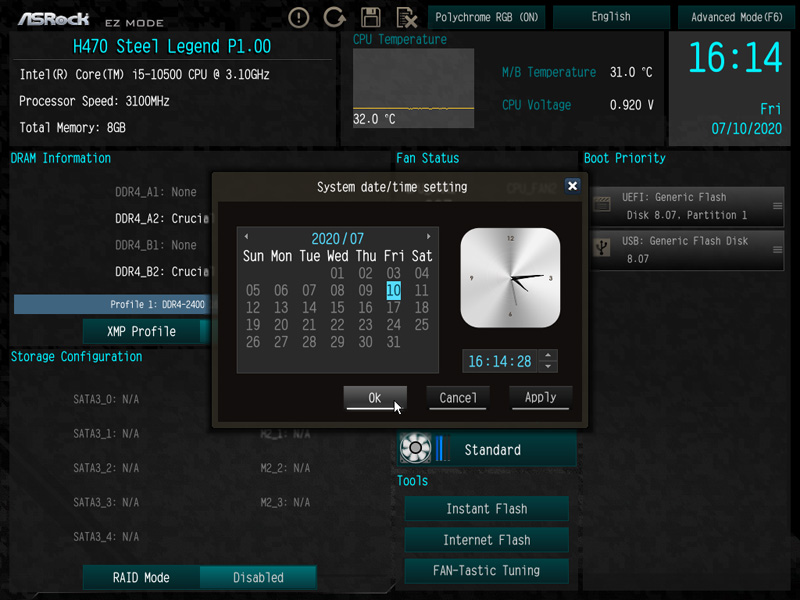

Of course you can also use the EZ menu to set the time and date.

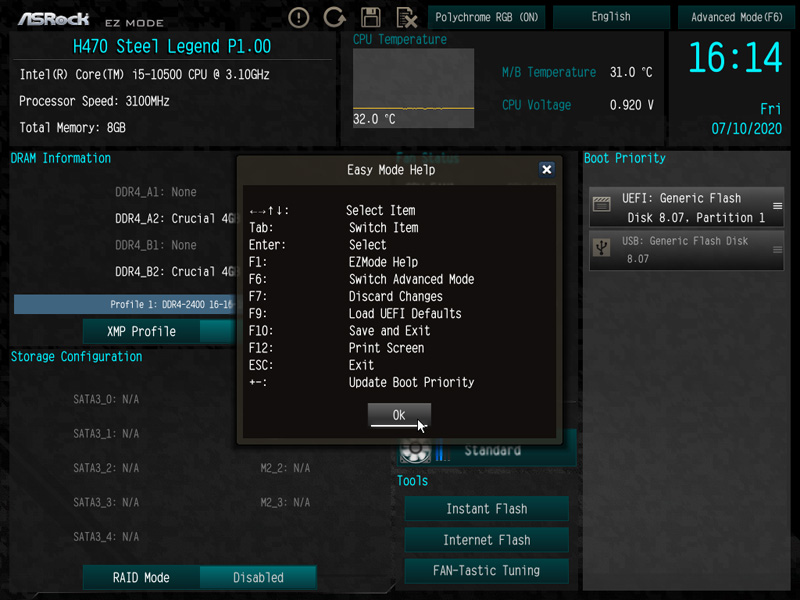

Many other functions can be operated optionally by means of function keys, which can be called up with F1. For example, if you want to publish a screenshot in our PC Forum, you can save it on a USB stick with F12.

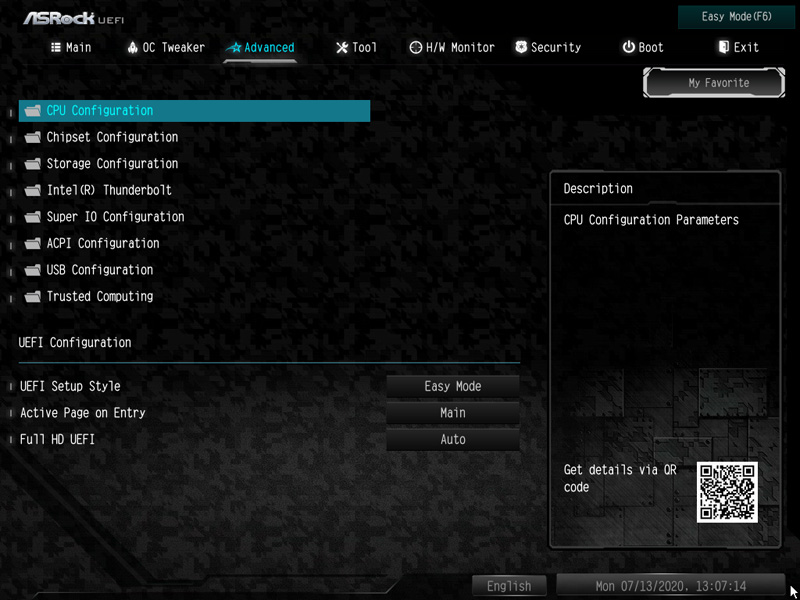

With the F6 key or the upper right button you get into the usual ASRock Advanced Mode, which you can also set as default.

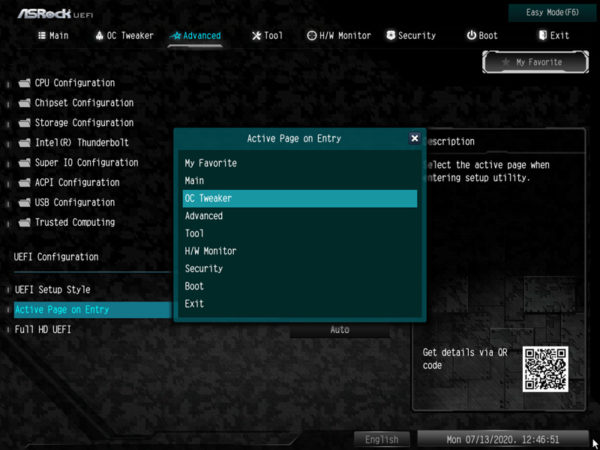

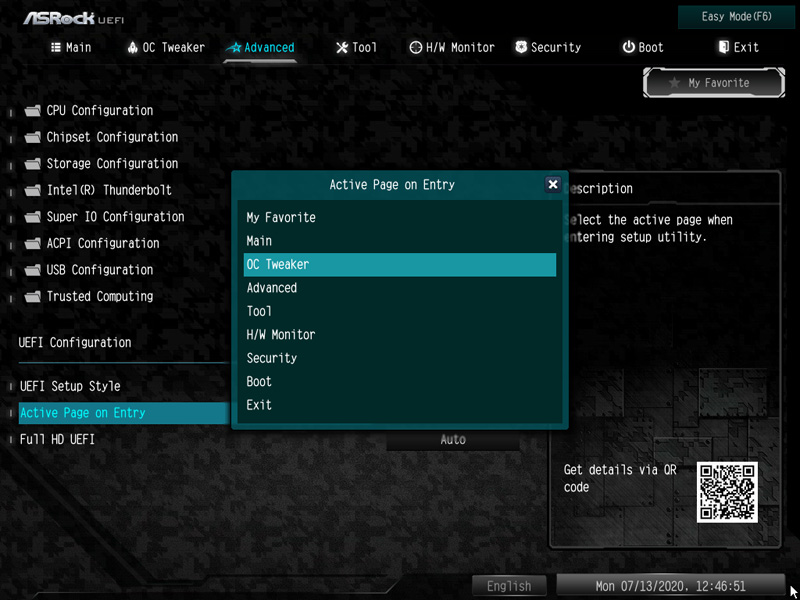

The System Browser view is no longer available on the ASRock H470 Steel Legend motherboard, but you will find again the Full HD UEFI selection and the Active Page on Entry selection, with which you can decide on which UEFI page you want to start in the UEFI setup. With the ASRock H470 Steel Legend you find the Active Page on Entry option and the Full HD UEFI selection under Advanced.

UEFI BIOS Update …

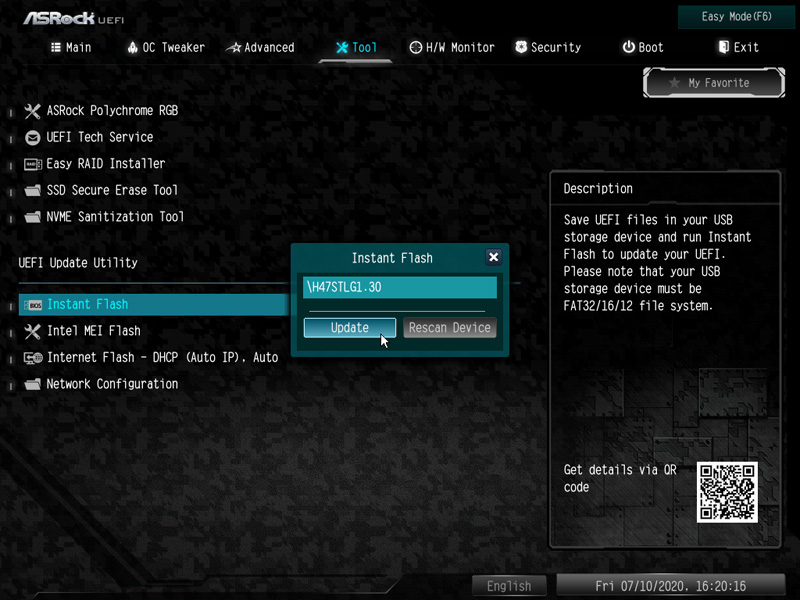

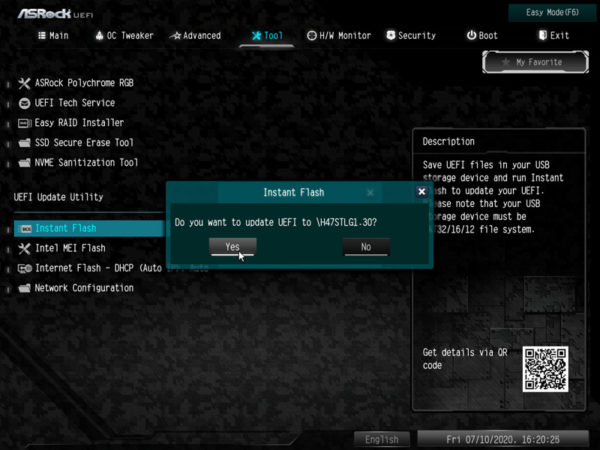

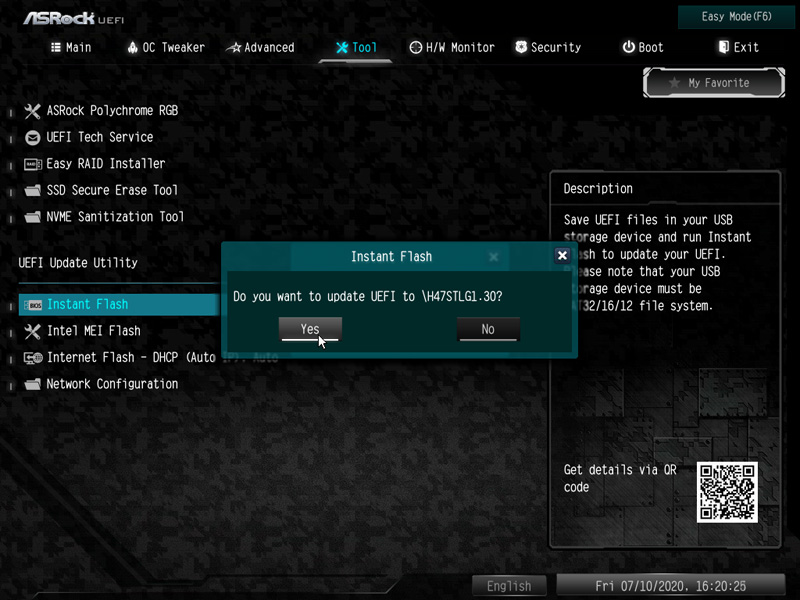

Before we start with UEFI overclocking, we update the UEFI BIOS to the latest version. Since ASRock regularly integrates new functions, better memory support and new processors, the BIOS update is recommended in most cases. For flashing the UEFI update ASRock offers several possibilities, e.g. the very simple Instant Flash or even the ASRock Internet Flash with a direct connection to the Internet. Via the so-called ASRock Instant Flash Option in the Tool Screen or via the F6 key when starting the PC you can access the ASRock Instant Flash Utility. You can simply install a previously downloaded ASRock BIOS without boot CD or similar by starting the ASRock Instant Flash Utility. Then select the BIOS Flash ROM from the desired drive, e.g. from a USB stick, which you have to unpack after downloading.

At the time of testing the UEFI BIOS version P1.30 was available as the latest download, which we installed over the pre-installed P1.00 version.

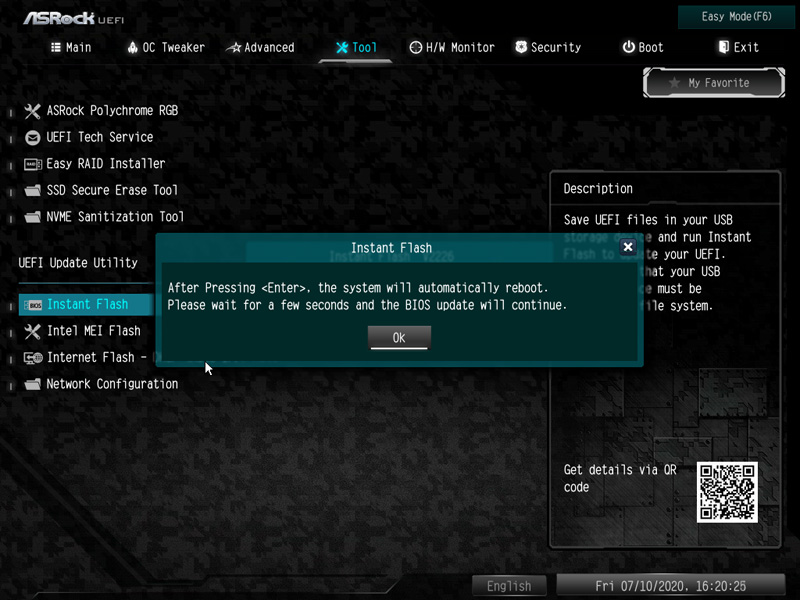

After a reboot the new BIOS version is then available.

Here you can see the new P1.30 EZ BIOS entry page with the Intel Core i5-10500 CPU.

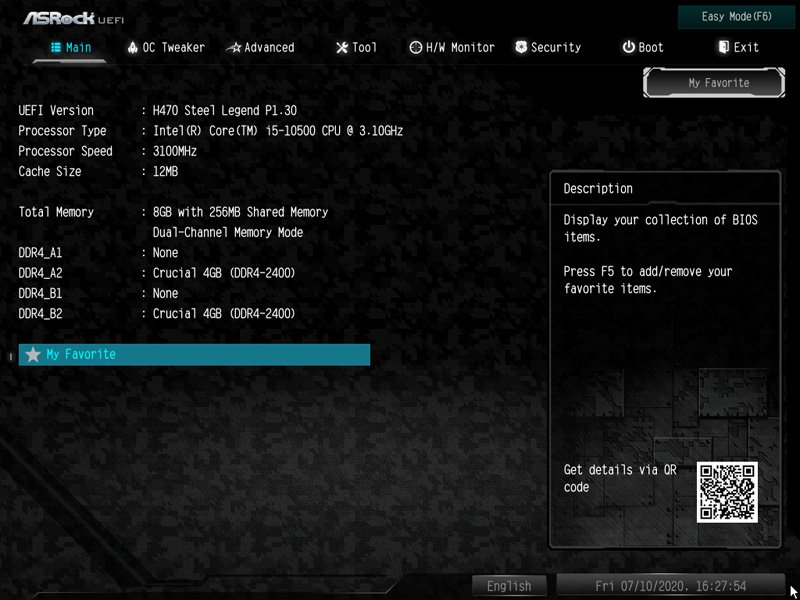

And here you can see the new P1.30 Advanced BIOS entry page with the Intel Core i5-10500 CPU.

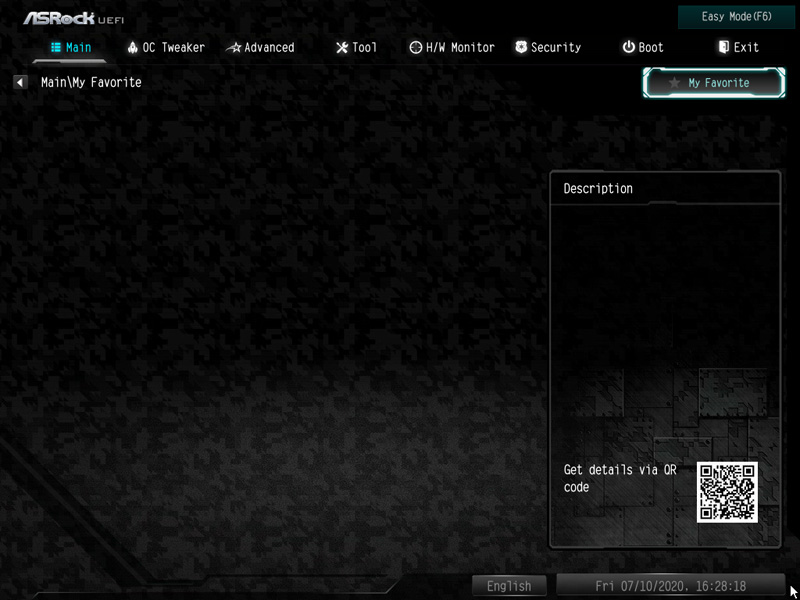

The My Favorite function is very helpful, because you can store frequently used menu items here, so that you can easily see them on a page and access them more quickly. You start with an empty page – by the way, it is unfortunately also emptied after a BIOS update.

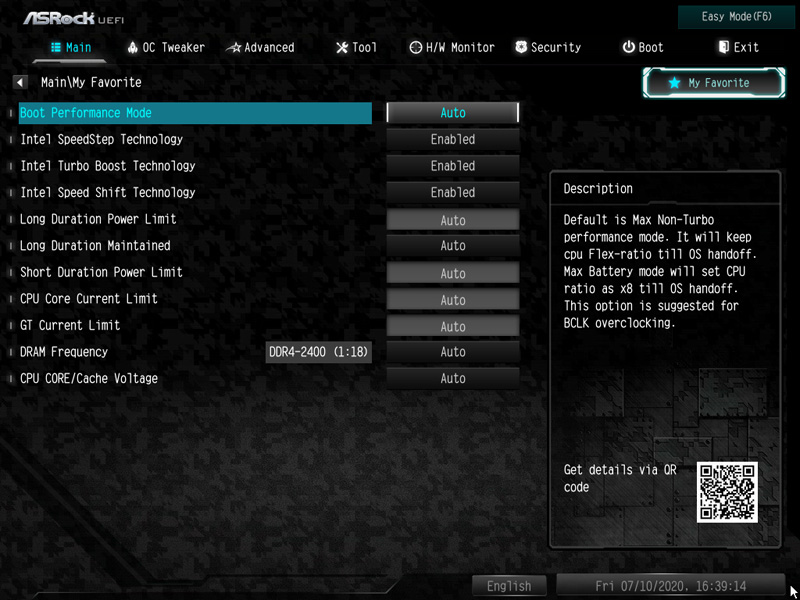

The My Favorite page is now filled with your own menu items by simply going to the respective menu item, then pressing F5 and the desired functions are already included in the My Favorite overview page. Here you can see a selection of possible favourites.

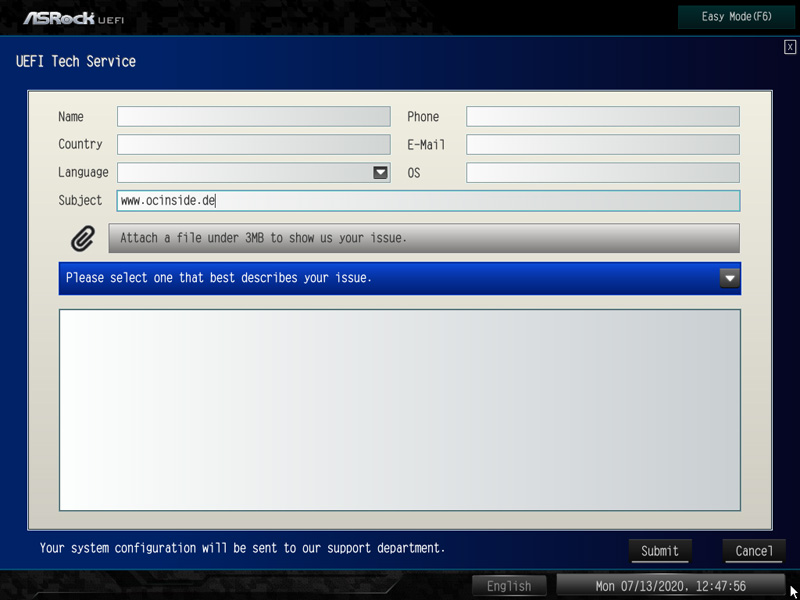

If you need technical UEFI support, you can even select the errors via the UEFI setup and even contact the ASRock Tech Service via network connection.

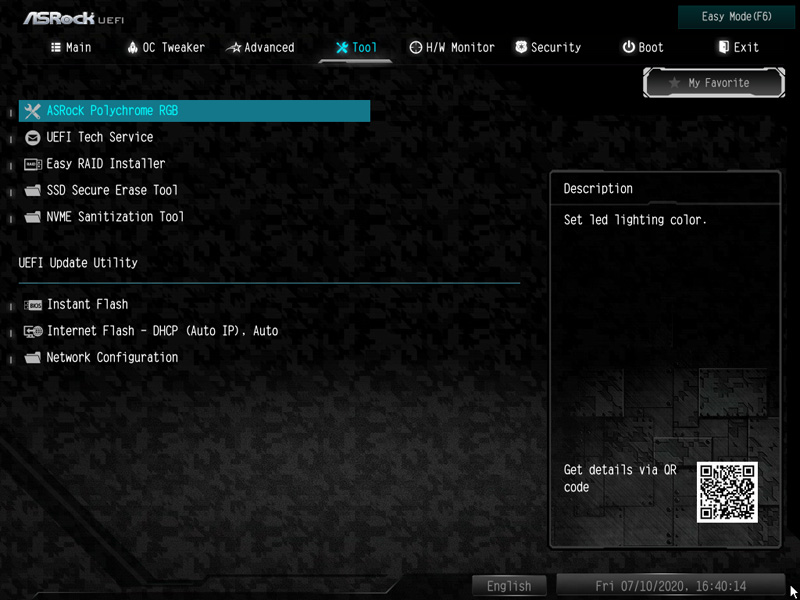

On the tools page of this ASRock H470 Steel Legend motherboard is the ASRock Polychrome RGB LED entry, which is almost identical to the ASRock Polychrome RGB software, which we already mentioned on the previous page.

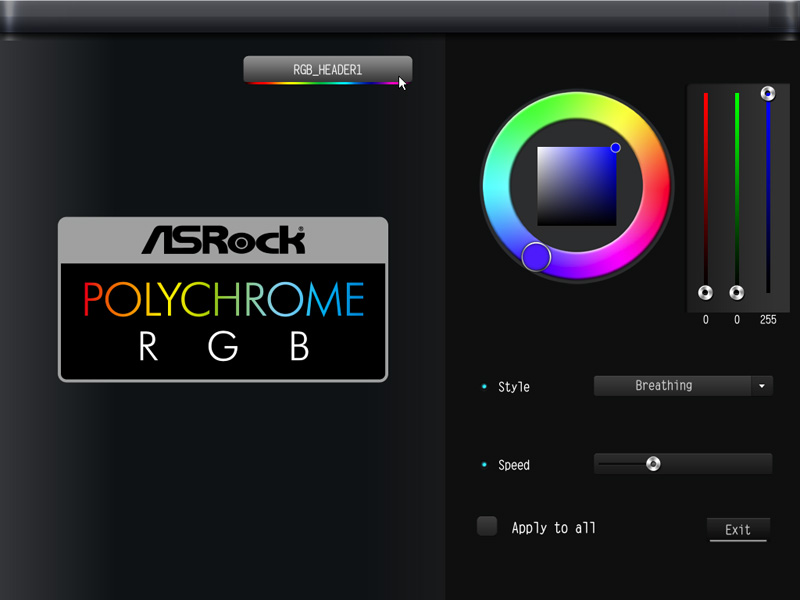

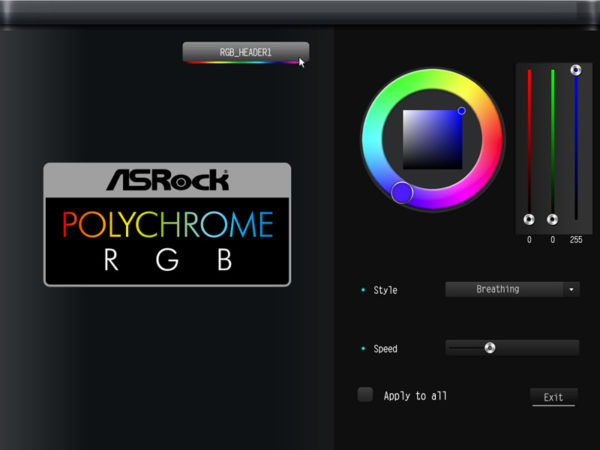

The Polychrome RGB LED menu has numerous setting options. You can select the color in an RGB color selector.

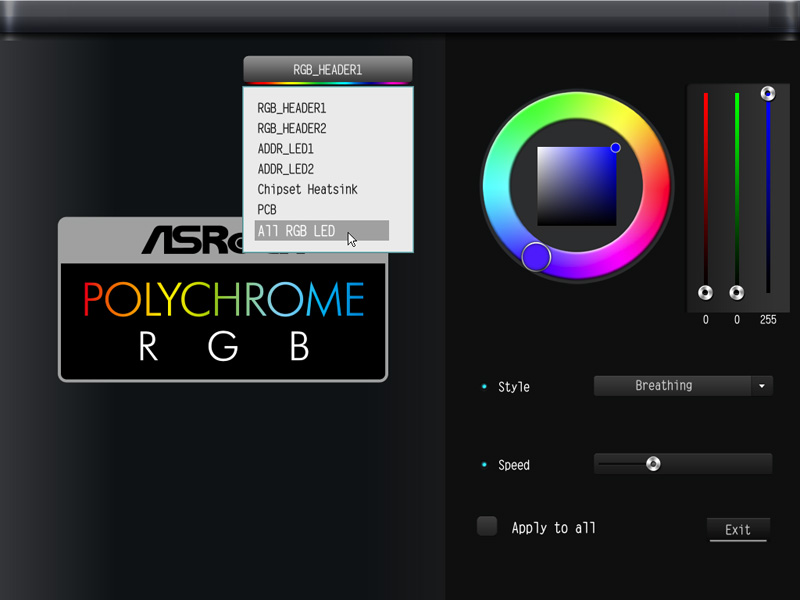

You can choose whether to control the RGB headers separately or all together.

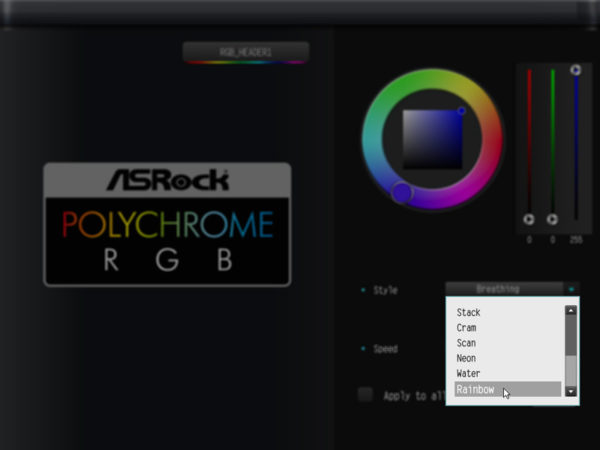

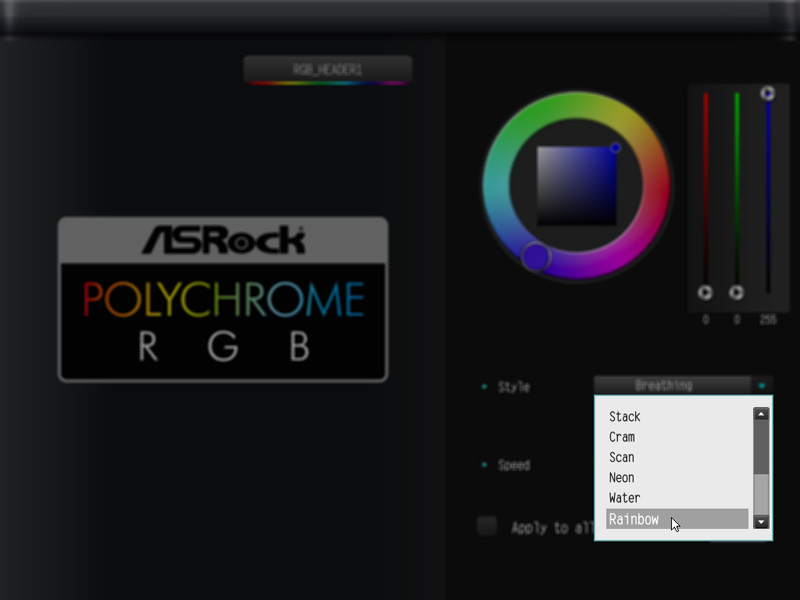

And you can set in the Polychrome RGB LED menu whether the LEDs should shine continuously, “breathe”, be controlled randomly or even to music. So the user has numerous possibilities how and how fast the LED stripes should light up. And if you don’t need the lighting, you can of course disable it completely.

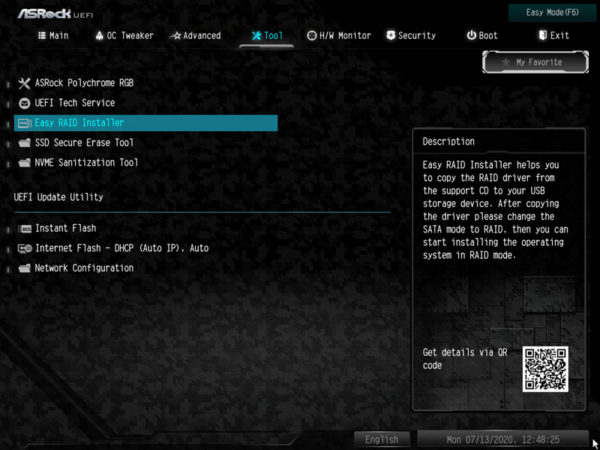

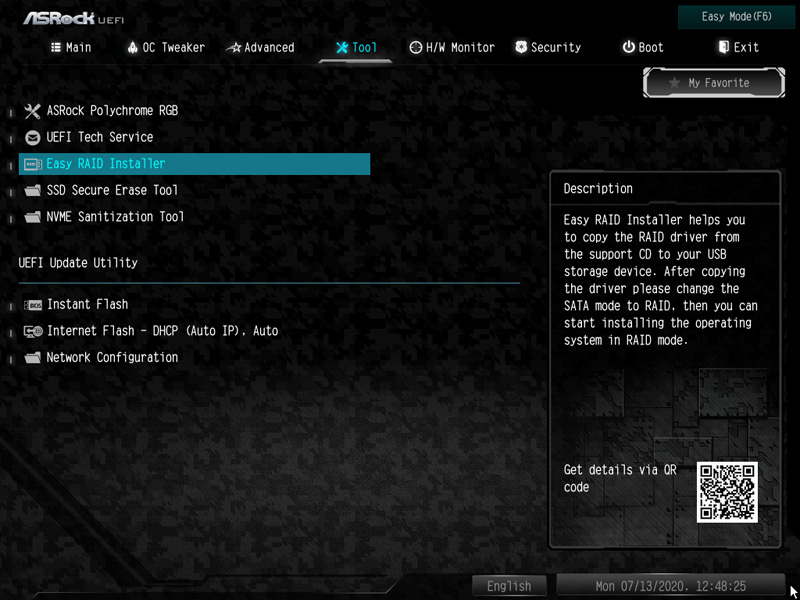

Although ASRock does not offer an Easy Driver Installer option like on the B460 motherboard, ASRock makes the RAID driver installation very easy for the user by offering the Easy RAID Installer as an easy way to download the latest RAID drivers.

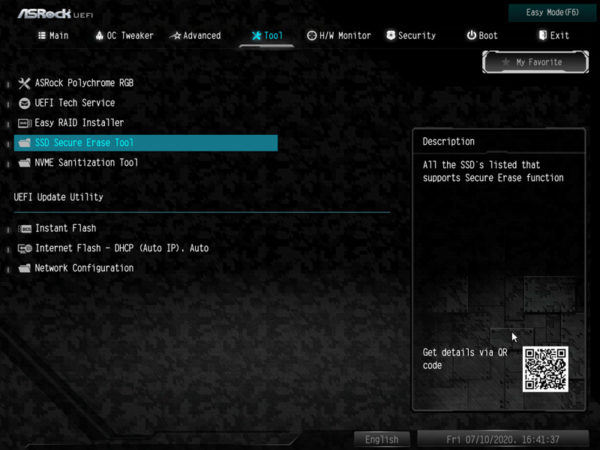

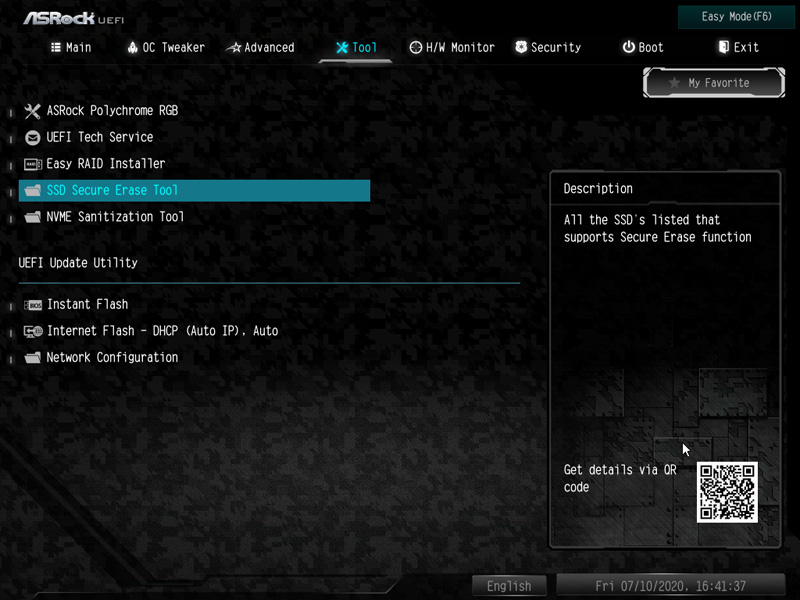

The handy SSD Secure Erase BIOS tool, which we first saw since the ASRock Z390 Phantom Gaming 9 motherboard, is also integrated.

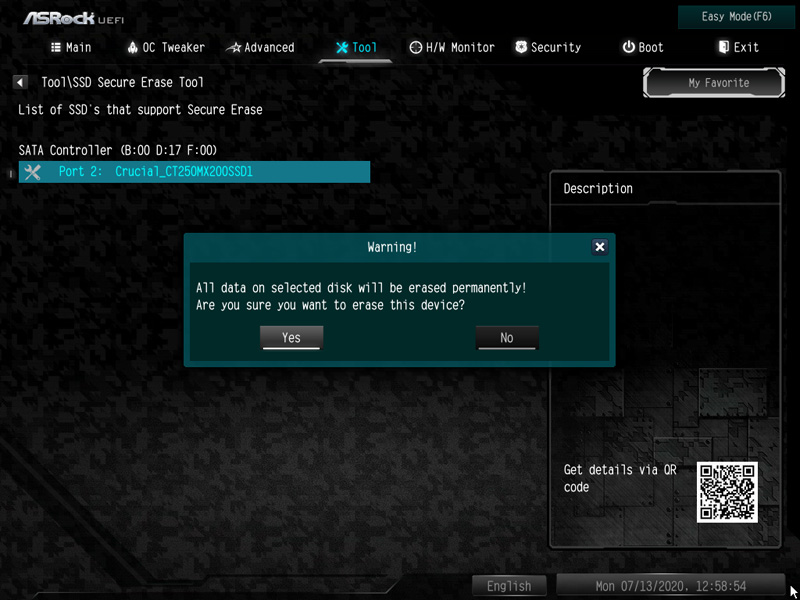

Simply select the desired SSD and it will be deleted quickly and safely – for example, for secure deletion prior to SSD sale or in case of serious partitioning problems. Great thing, but use with care!

ASRock H470 Steel Legend Overclocking …

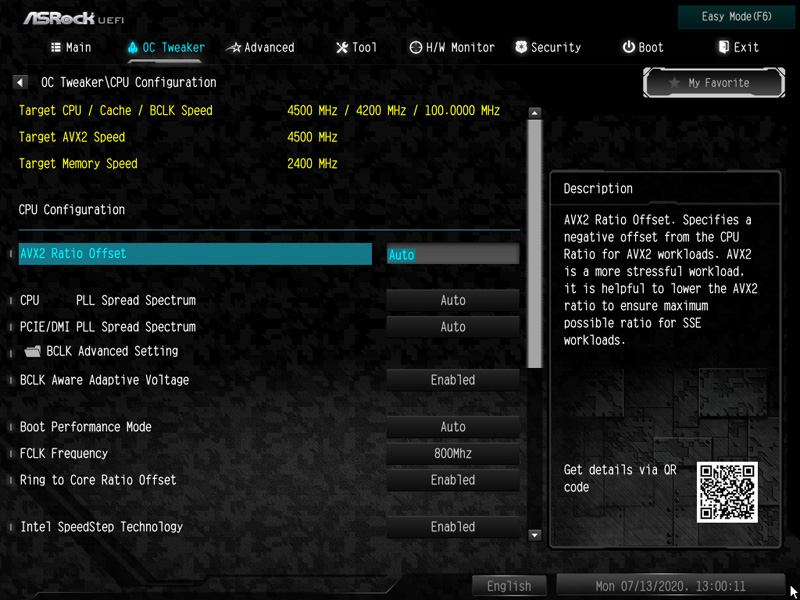

Now we come to the Intel LGA 1200 overclocking with the H470 chipset on the ASRock H470 Steel Legend motherboard. ASRock separates the OC-Tweaker menu of the ASRock H470 Steel Legend into CPU Configuration, DRAM Configuration and Voltage Configuration.

The view into the OC-Tweaker menu is at least much more pleasant than with the previously tested ASRock B460 Steel Legend motherboard. Nevertheless, even with an Intel “K” CPU with unlocked multiplier you wouldn’t have any setting options for the multiplier or the BCLK and this is unfortunately exactly what Intel wanted for the B460 and H470 in contrast to the Z490. So you can’t increase a multi on an Intel H470 motherboard and currently you can’t even raise the BCLK a bit to overclock the CPU. But there is the Boot Performance Mode setting for the speed during the boot process …

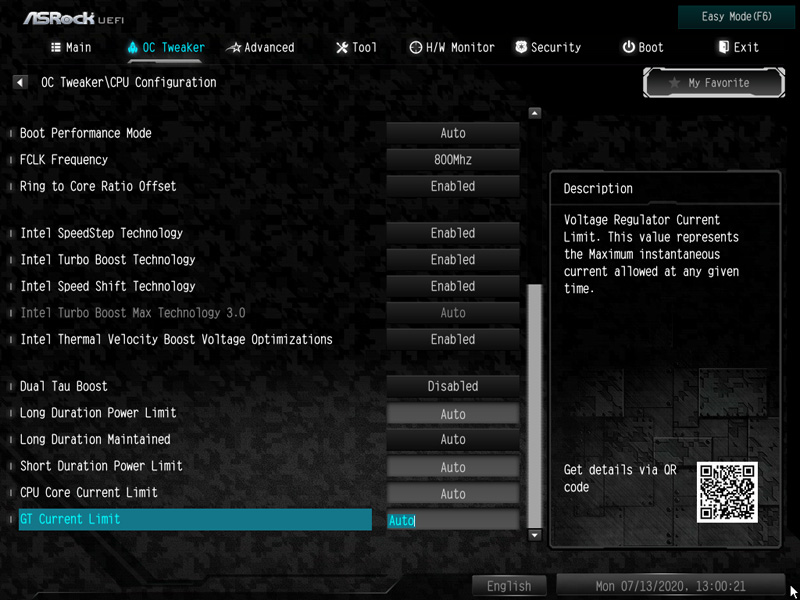

… and at least some power limit settings.

An Intel H470 motherboard is thus as badly overclockable as an Intel B460 motherboard, because even an Intel Core i9-10900K CPU can only be operated with the standard or turbo clock. If we discover possibilities for H470 overclocking, we will publish them as usual in the Intel OC Forum or directly with an OC tutorial in the PC Workshop.

ASRock BFB – Base Frequency Boost …

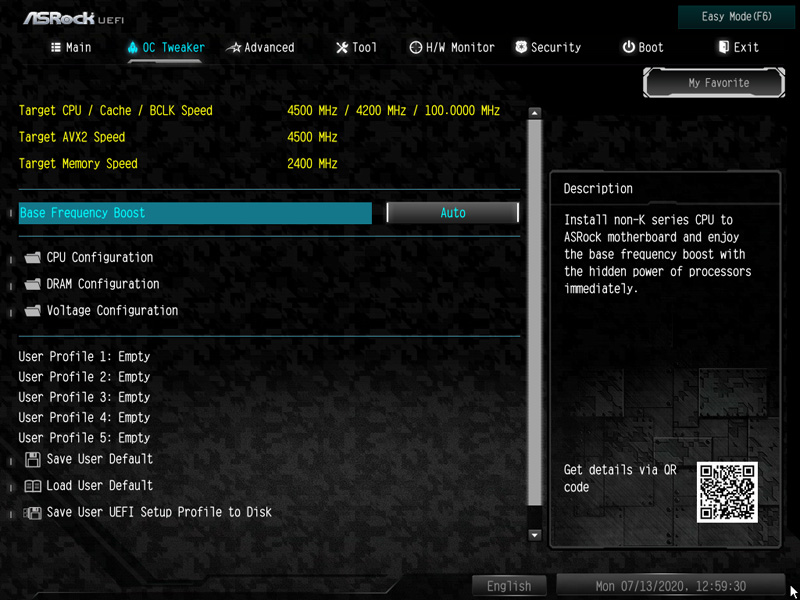

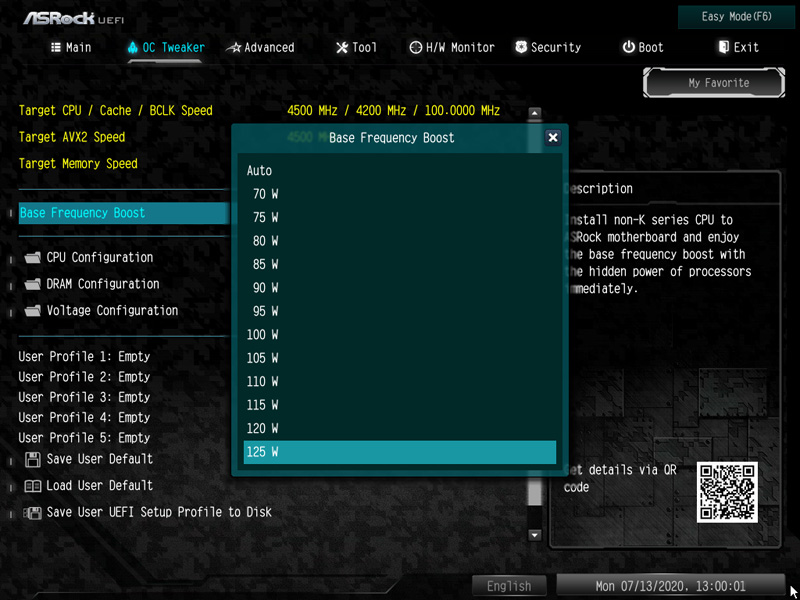

But wait, there was still something with BFB? That’s right! On the OC Tweaker entry page there is the so-called Base Frequency Boost option, with which you can overclock even a CPU with locked multiplier. You won’t get overclocking by multiplier, but you can adjust the powerlimit. Normally, the Core i5-10500 CPU is specified by Intel with a power limit of 65 watts. That means, if the turbo clock frequency requires more than 65W power limit over a certain period of time, this is prevented by Intel with the power limit throttling. We have already explained Intel Turbo Boost Short Power Max, Turbo Boost Power Max, Turbo Boost Power Time Window, Primary Plane Current Limit, Short Duration Power Limit, Long Duration Power Limit and similar power limits several times in our OC guides, because higher power limits play an important role in overclocking. Especially when it comes to maintaining higher clock rates over a longer period of time. ASRock now offers the Base Frequency Boost option in the OC Tweaker UEFI to raise this limit to keep the turbo clock frequency beyond the 65W power limit, more precisely up to 125W. Of course it is very helpful that ASRock has improved the VRMs on this H470 Steel Legend in contrast to the B460 Steel Legend.

We have done extensive tests with the ASRock Base Frequency Boost Option with Intel B460, Intel H470 and Intel Z490 in comparison and will shortly go into more detail about the overclocking possibilities and results, how much this type of BFB overclocking can achieve with a locked Intel Core i5-10600 CPU, or similar.

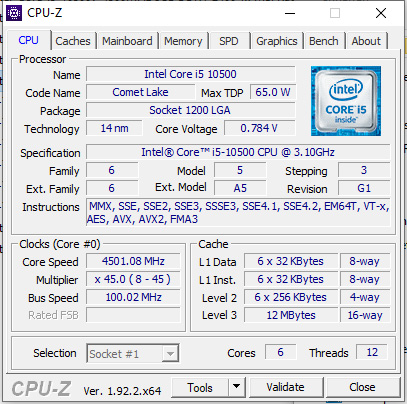

Here you can see a CPU-Z screenshot of the Intel Core i5-10500 CPU with a maximum TDP of 65W and a maximum turbo of up to 4501.08 MHz for a short time instead of 3100 MHz!

ASRock H470 Steel Legend memory settings …

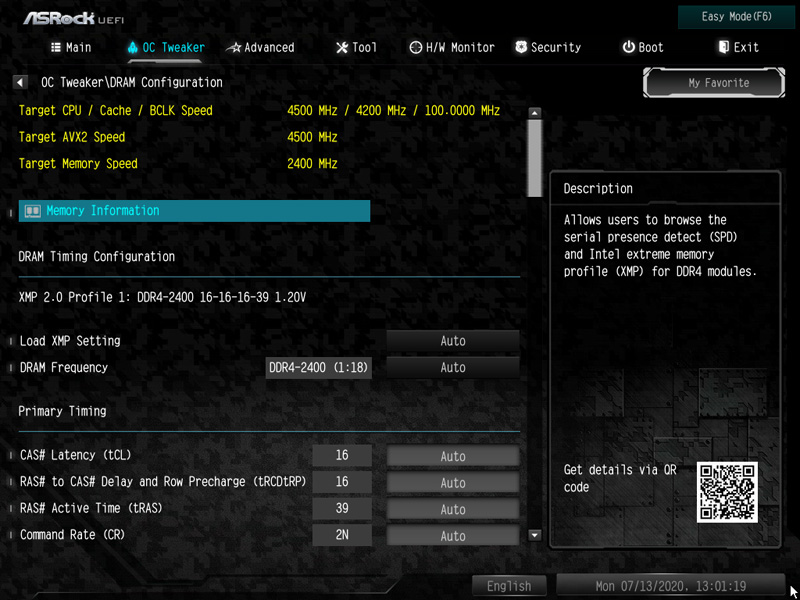

The DRAM Configuration Menu contains all important memory settings.

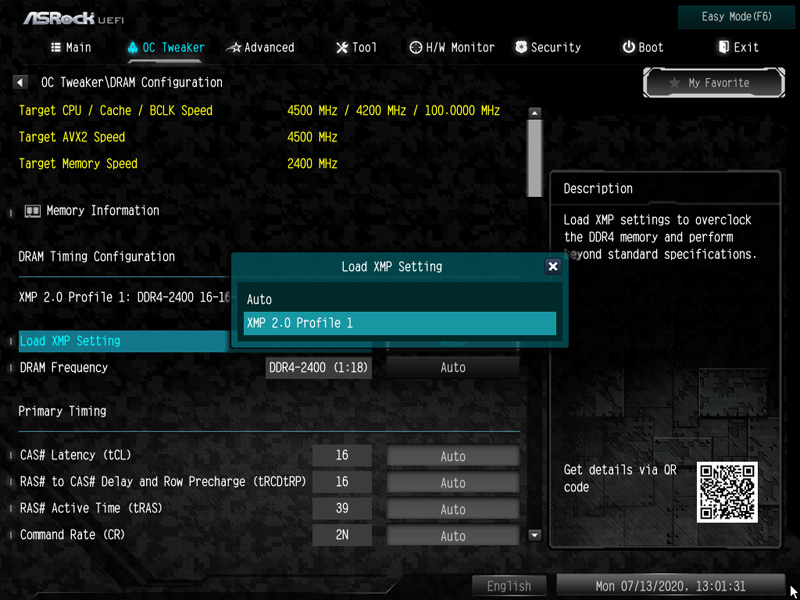

Thanks to Load XMP Setting support, XMP memory modules can be set correctly in the UEFI BIOS with just one mouse click.

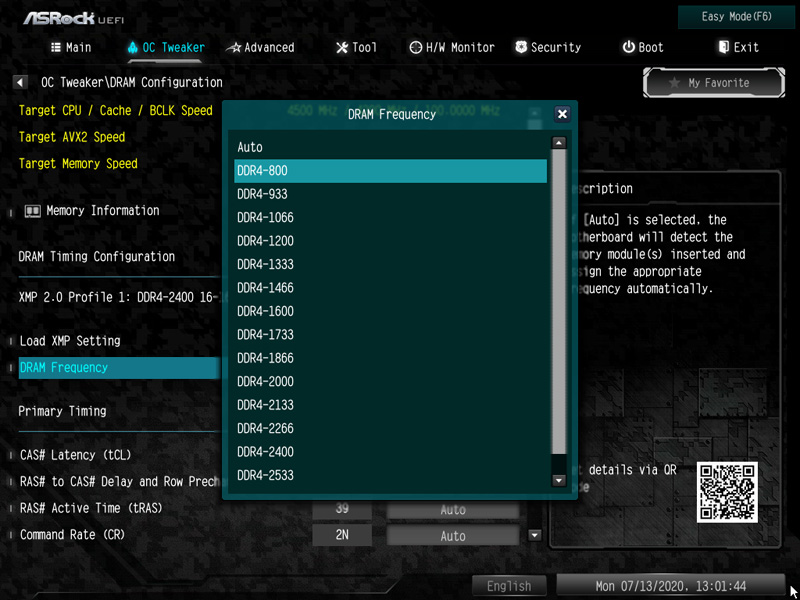

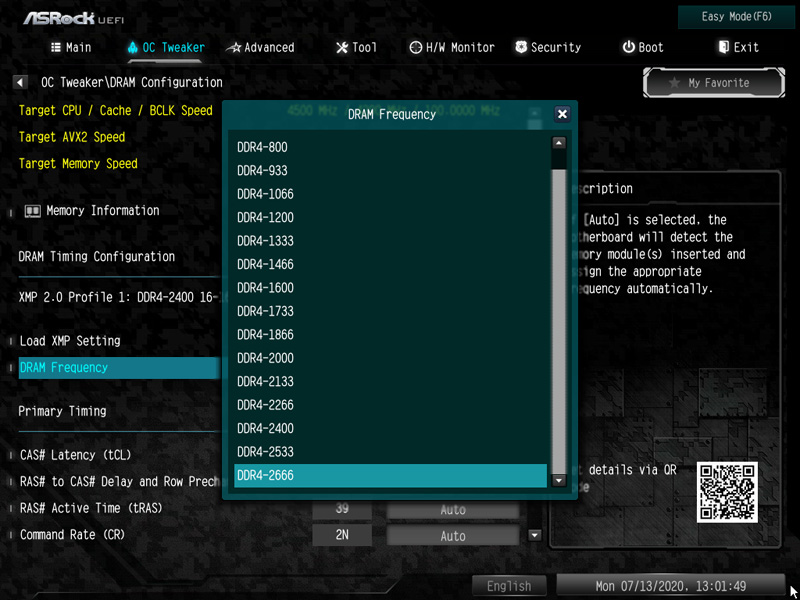

Alternatively you can select the values yourself. With the DDR4 memory clock, for example, you can select values from DDR4-800 …

… to a maximum of DDR4-2666, since no BCLK is increased. For Intel Core i7 and Intel Core i9 up to DDR4-2933 is supported.

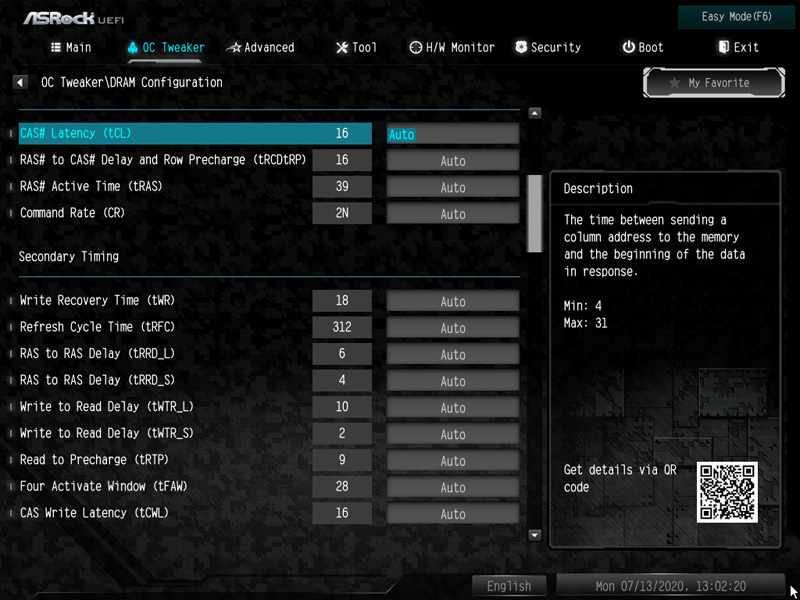

All DDR4 timings can optionally be adjusted manually.

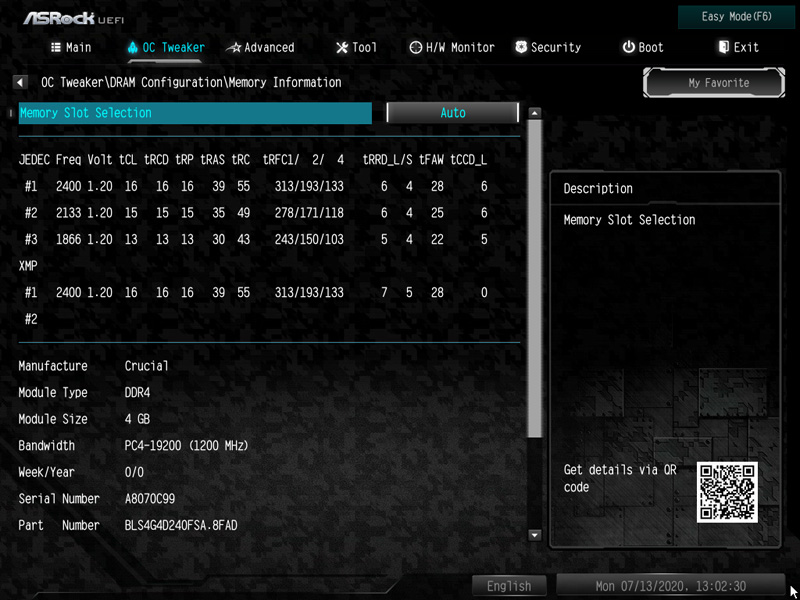

The ASRock H470 Steel Legend offers under Memory Information an overview with all SPD and XMP memory values, which are no longer available for direct selection as in the DRAM Configuration Menu.

ASRock H470 Steel Legend voltage settings …

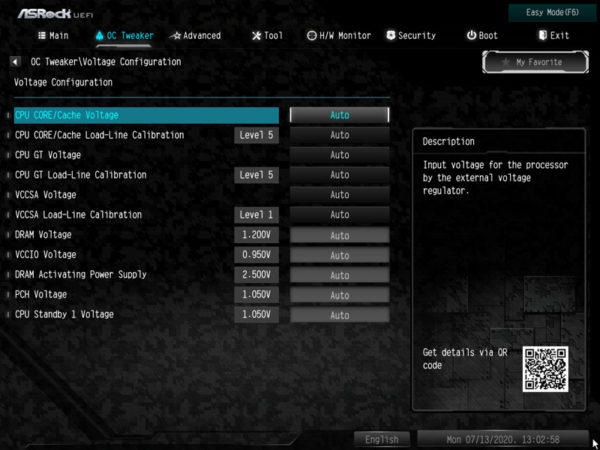

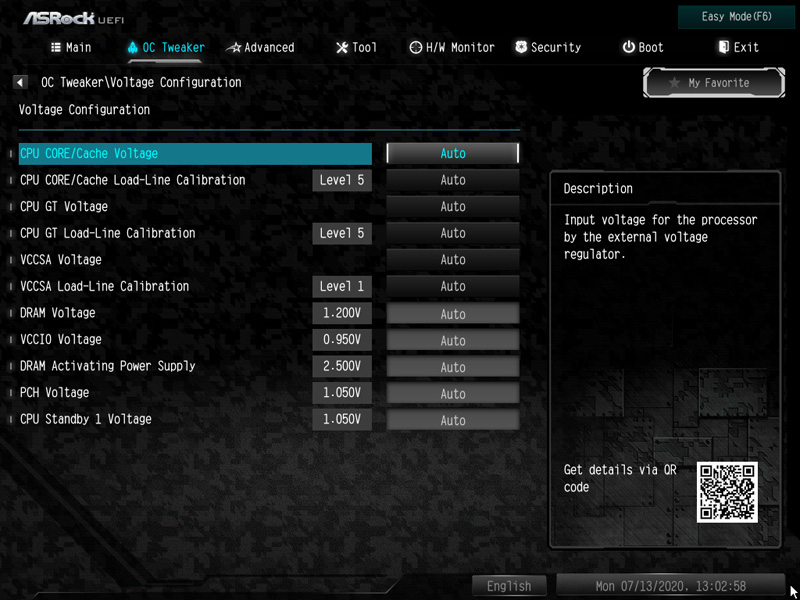

Now we come to the different voltage values that can be set in the BIOS. The ASRock H470 Steel Legend motherboard already provides clearly more voltage settings under Voltage Configuration than its B460 counterpart. It has e.g. the PCH Voltage, VCCSA Voltage, VCCIO Voltage, GT Voltage, and the DDR4 voltage can also be set in the Voltage menu, as we already showed on the second review page in the technical details.

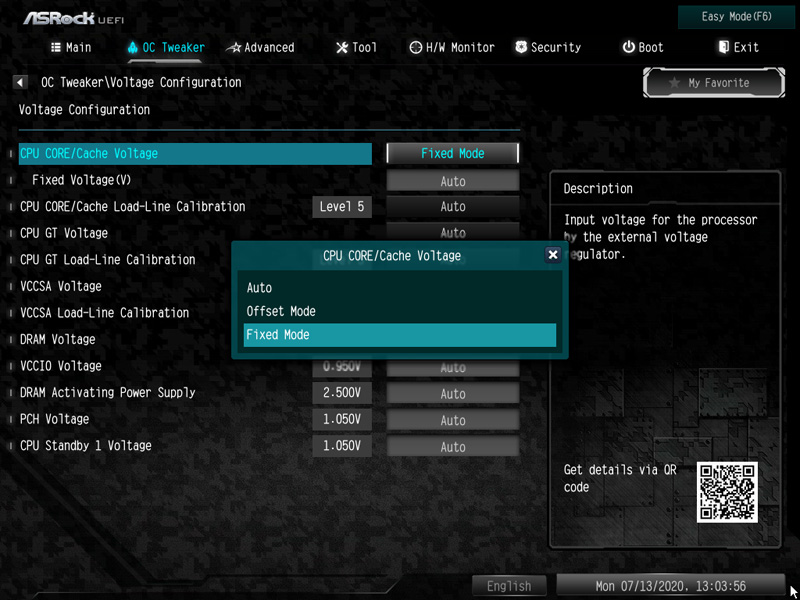

With the CPU Core/Cache Voltage you can fortunately set offset and fixed mode again. On the Intel Core i5-10500 Test CPU the Fixed Mode could be set from 0.800 Volt to 1.520 Volt and the Vcore Offset from -0.100V to +0.300V.

ASRock H470 Steel Legend even easier overclocking …

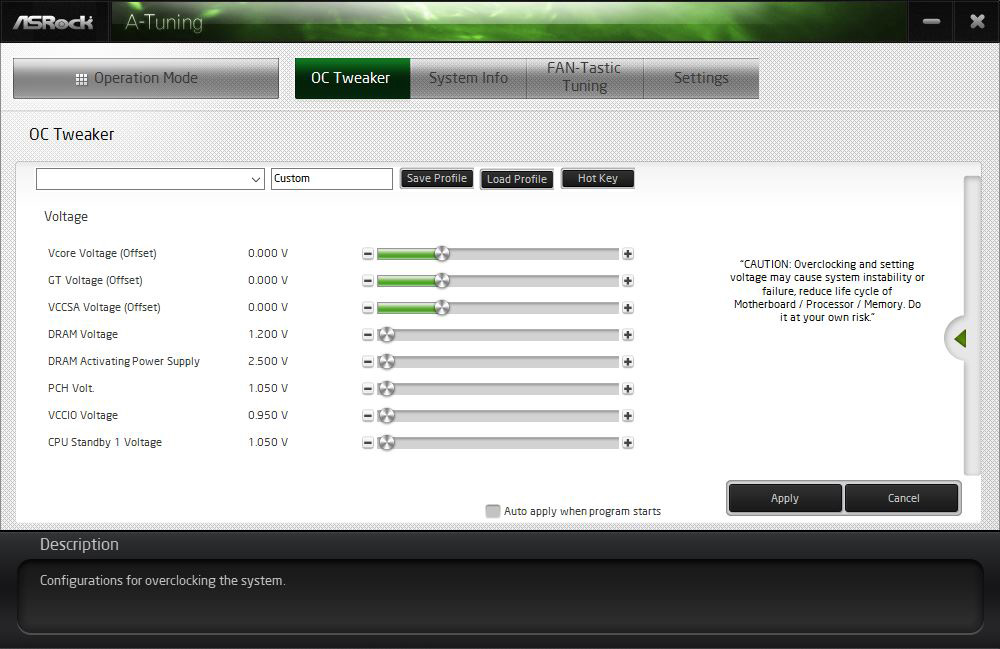

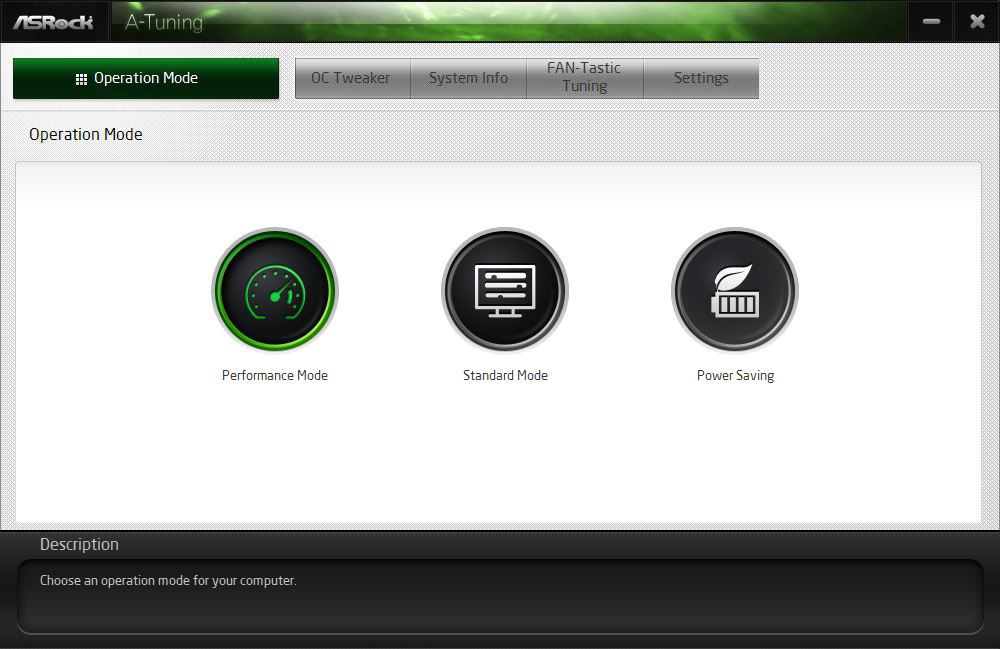

If you prefer overclocking in Windows, you can do the above mentioned voltage settings with the ASRock A-Tuning Tool.

The CPU cannot be overclocked here either. Here you can see some settings of the ASRock A-Tuning Tool.

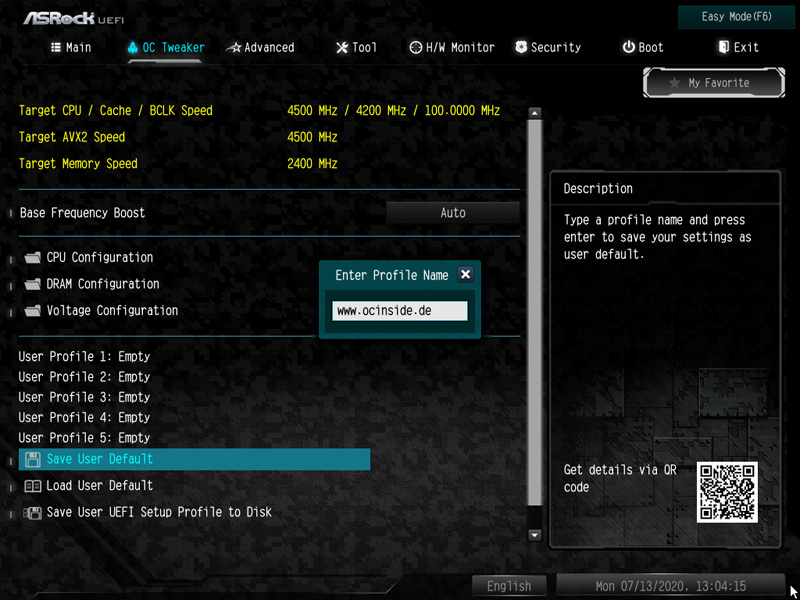

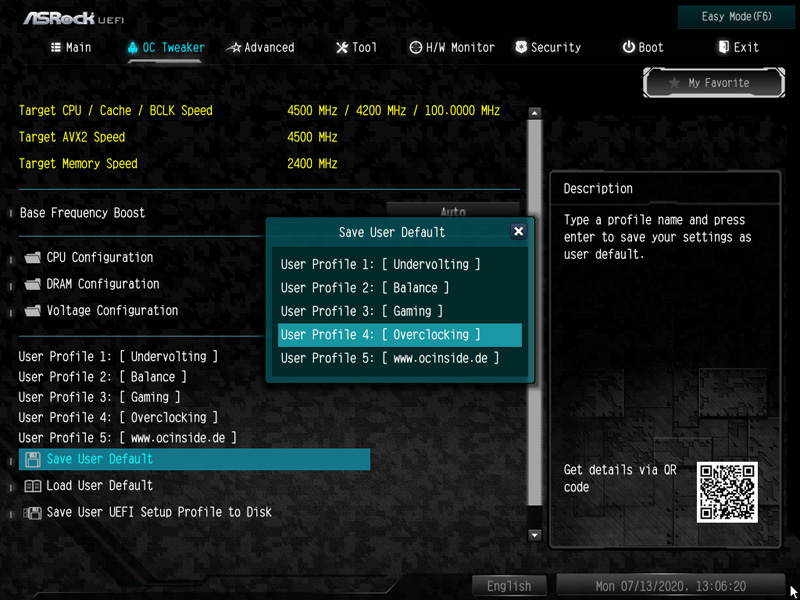

If the desired settings are found, you can save up to five different BIOS settings with names in UEFI under OC Tweaker.

For example, one could store undervolting values, balanced BIOS settings, office or gaming settings as undervolting, balance and gaming user profile to be able to quickly reload these values at any time.

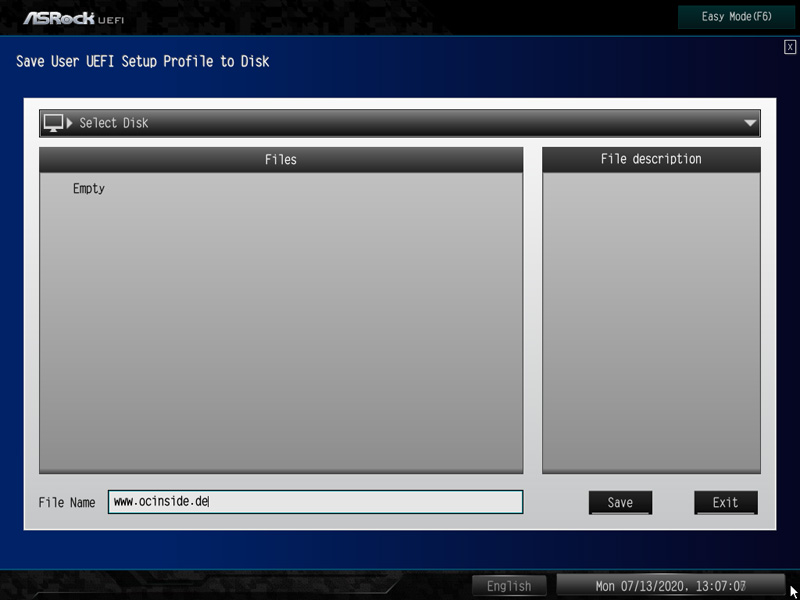

Interesting is also Save User UEFI Setup Profile to Disk. Simply click on it and save your UEFI settings on the hard disk or on a USB stick.

BIOS Undervolting …

The downclocking or undervolting is also tested in this review. It was not possible to lower the Intel Core i7-8700K CPU frequency over the BIOS. You can lower the voltage to reduce the power consumption. Of course, underclocking is like overclocking outside of the manufacturers specification, so it is necessary to have some luck. ASRock gives several options for easy PC undervolting. There are many other UEFI settings to choose from, such as CPU Configuration, Chipset, Storage, Intel Thunderbolt, Super IO Configuration, ACPI Configuration, USB Configuration and Trusted Computing.

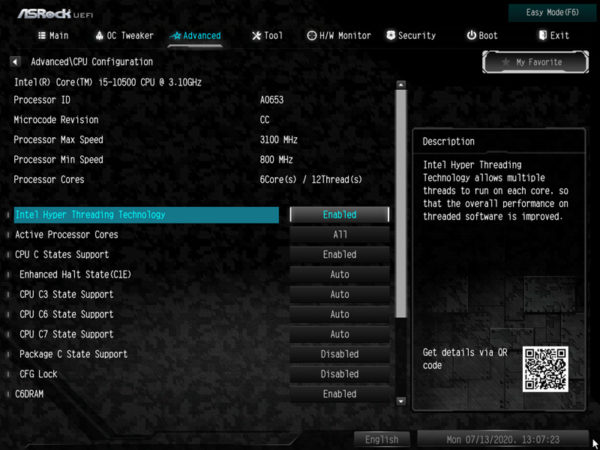

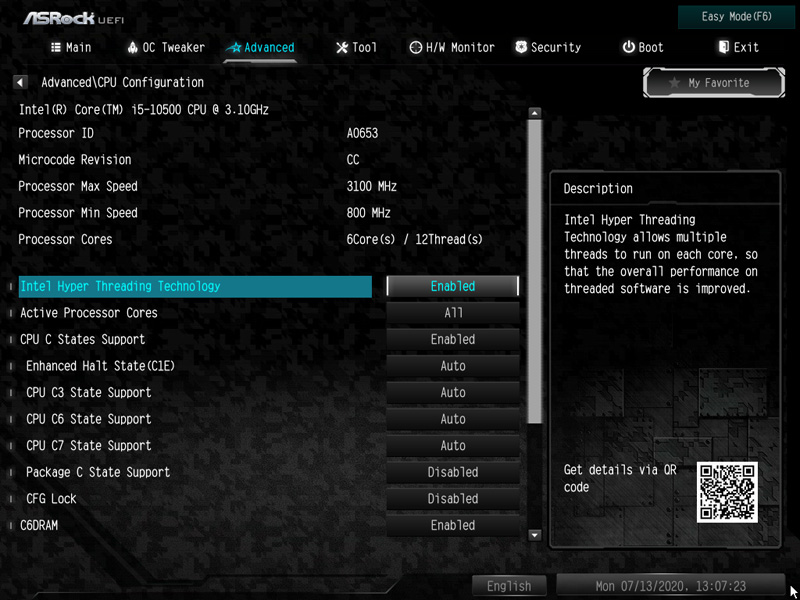

If you want to save power when using a PC with an Intel LGA1200 PC or if you use Intel Virtualization Technology to support multiple, simultaneous operating systems, you should also check the CPU Configuration menu under Advanced.

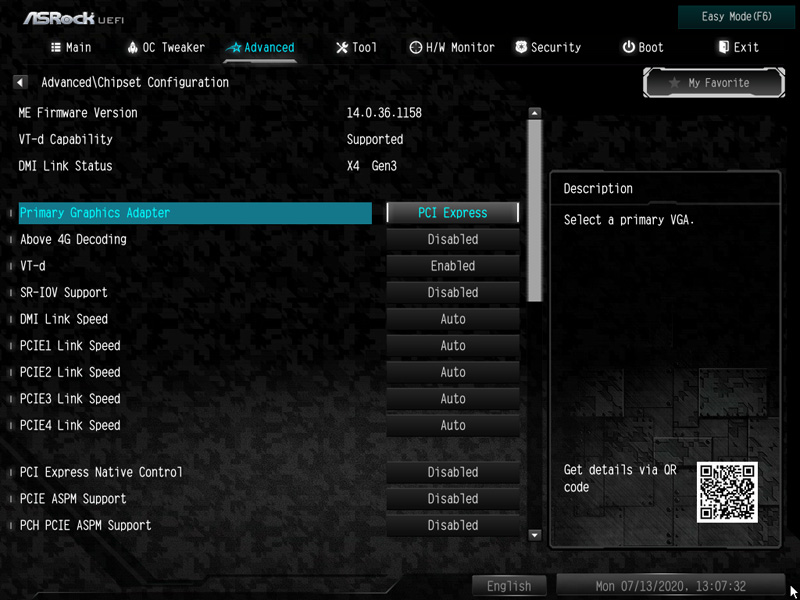

But also the settings in Advanced Chipset Configuration with the individual speeds of the PCIe slots, selecting the first graphics card, etc. are interesting.

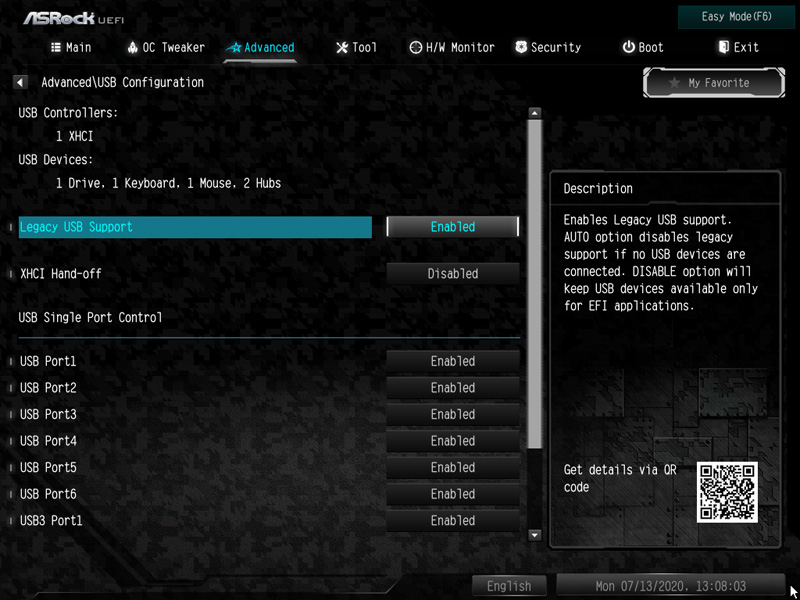

In the UEFI it is even possible to manually deactivate each individual USB port.

Fan control …

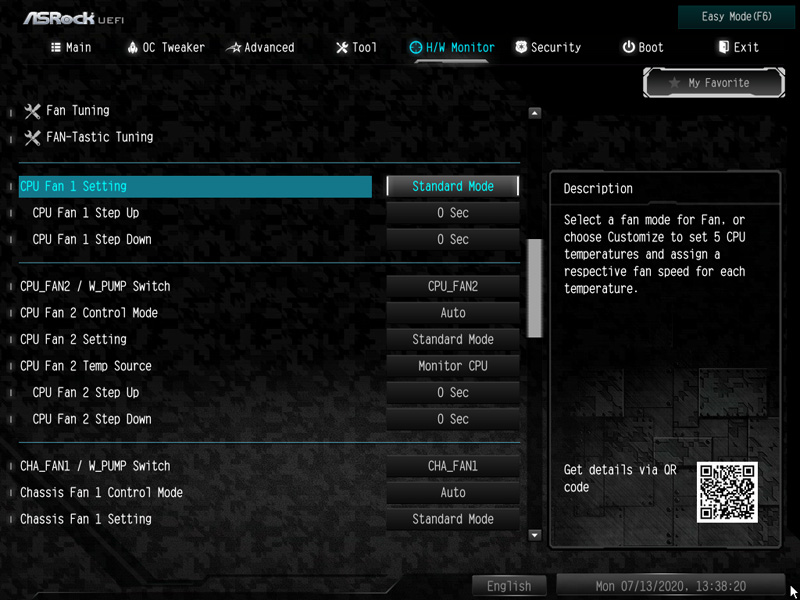

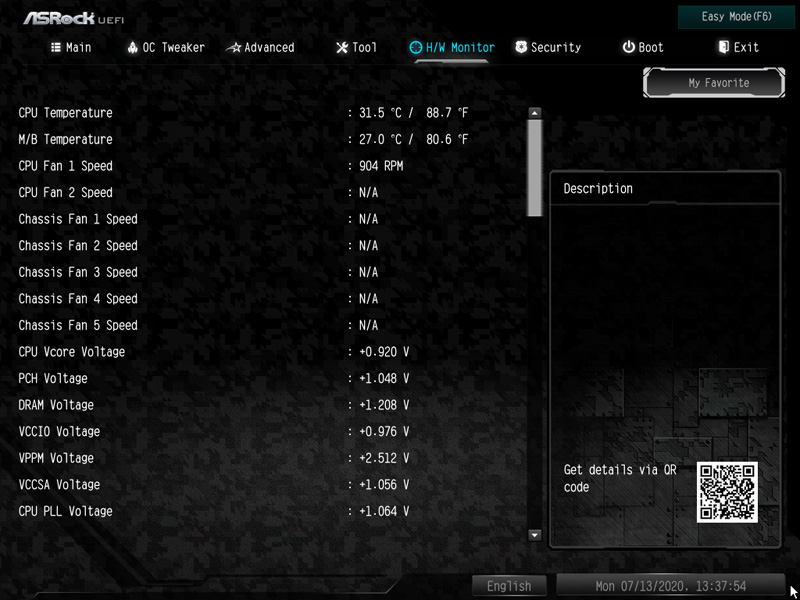

The UEFI Setup of the passive cooled H470 Steel Legend motherboard also features an extensive temperature controlled fan control. The settings for the fan controller can be found in H/W Monitor directly below the temperature and voltage display.

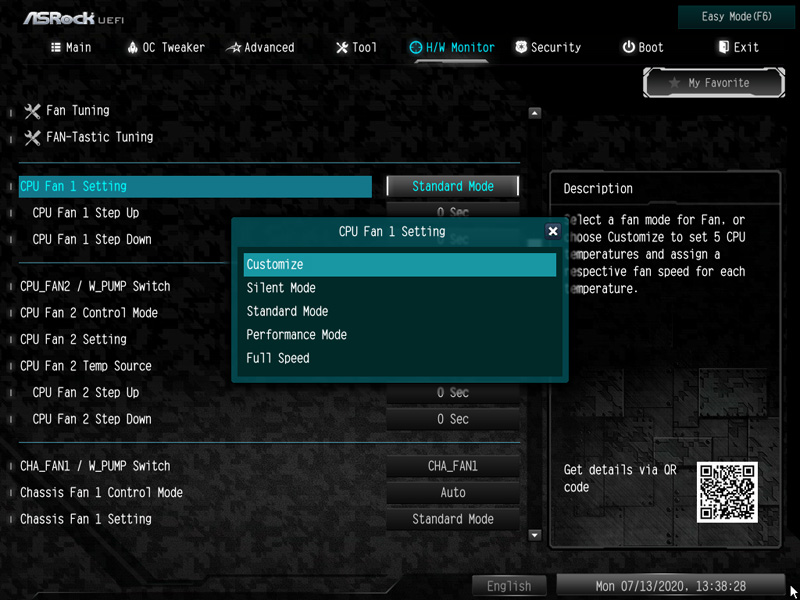

Here are settings for the CPU fan, chassis fans or W_Pump switch.

You have the choice between Customize, Silent, Standard, Performance and Full Speed.

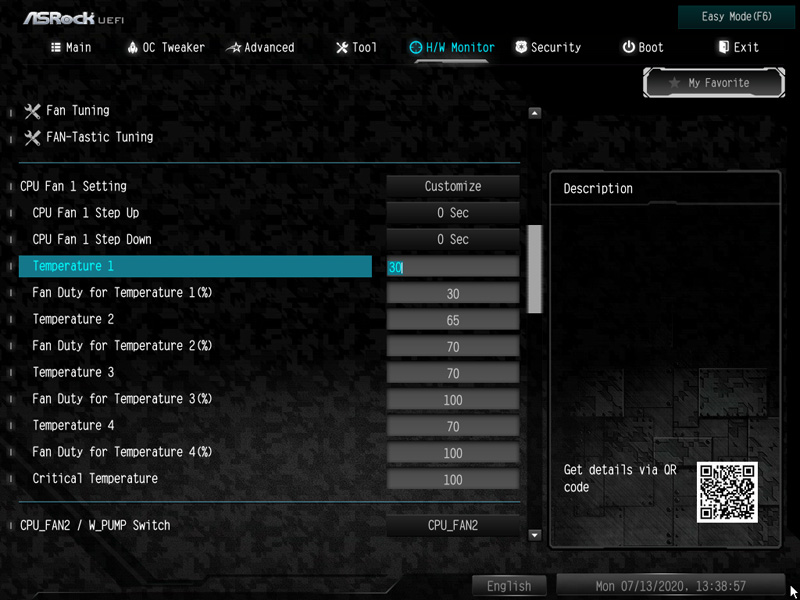

In Customize Mode, several temperature steps are available to which the desired fan speed can then be assigned. The fan settings are changed immediately and can therefore be heard immediately.

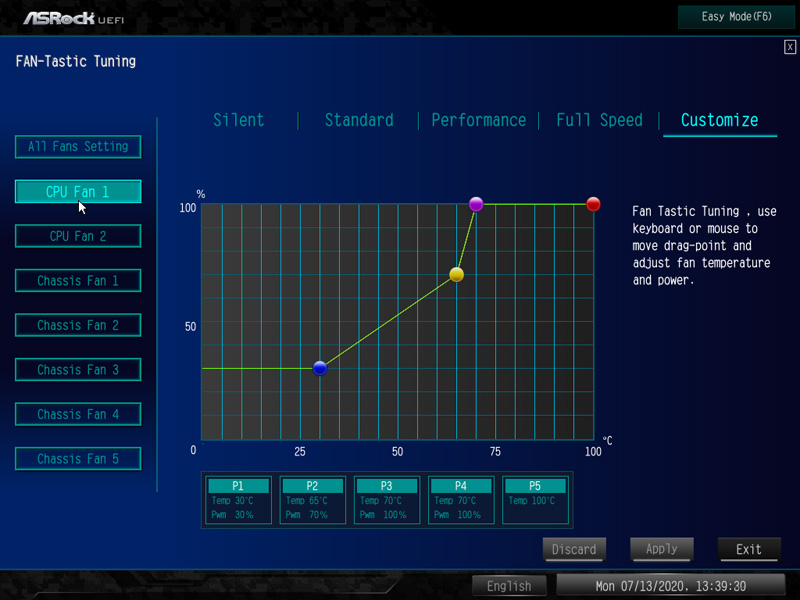

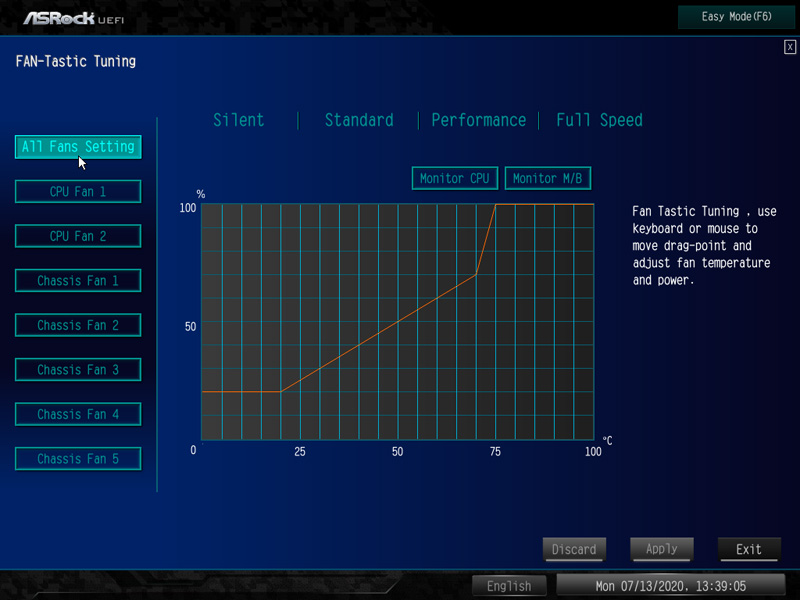

ASRock has also integrated the graphical user interface for controlling the fans in the UEFI setup. The FAN-Tastic Tuning menu item can also be found in the H/W monitor and can be used for all settings. Simply select the respective fan connector on the left side and then select the mode on the right side: Silent, Standard, Performance or Full Speed.

In Customize mode, you can set all values directly in the chart and save.

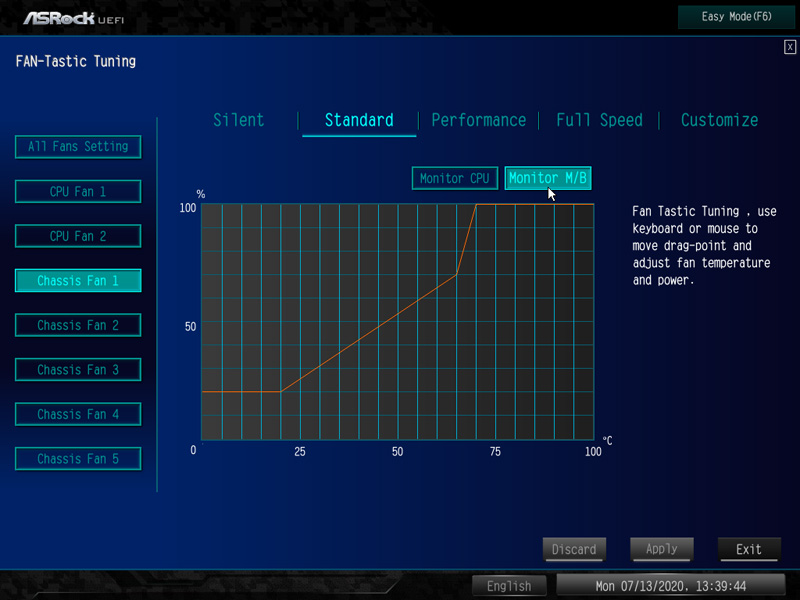

For the chassis fan connectors you can even select, which source you want to use for temperature measurement – Monitor CPU or Monitor Motherboard. Then click on apply and save the values.

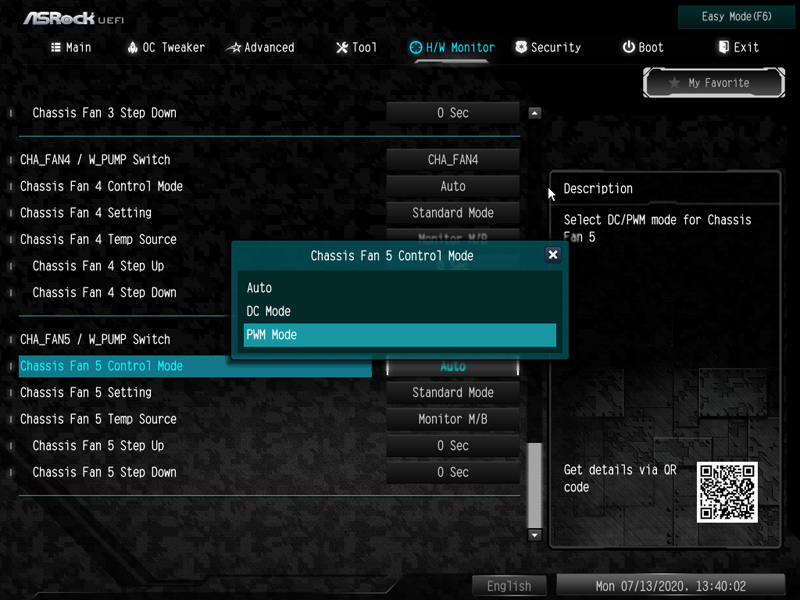

And even the control of the 3-pin chassis fans is possible with the DC/PWM mode switch.

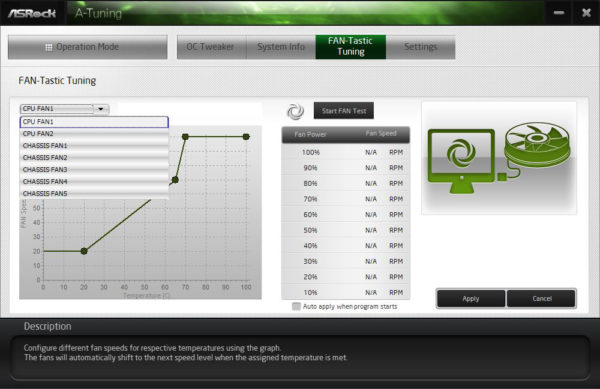

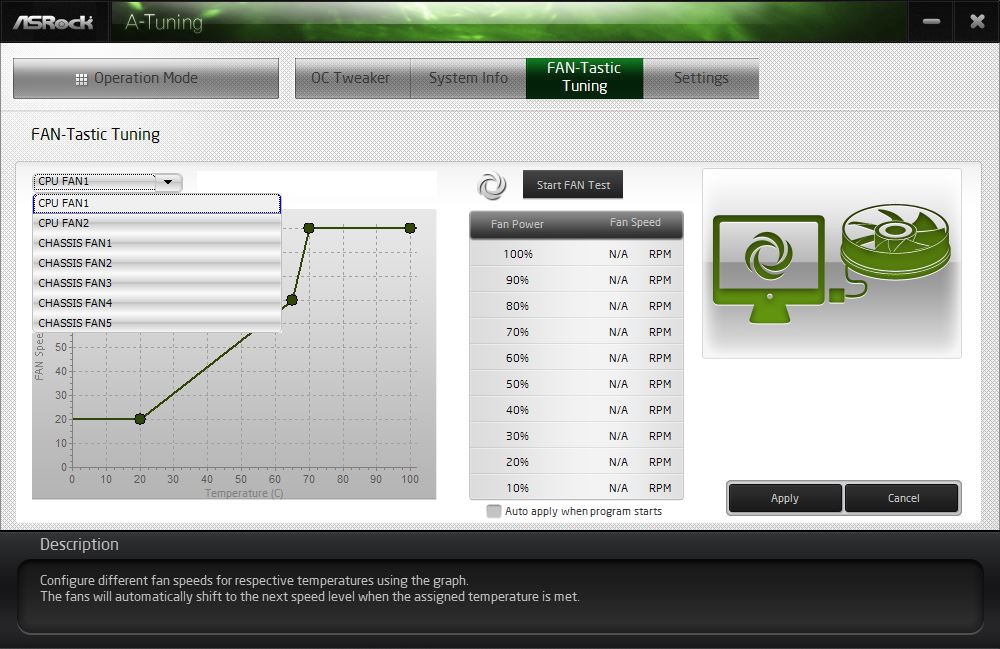

Who would rather set the values in Windows, you can use also the ASRock A-Tuning tool.

You can usually get along without an expensive Fan Controller, because the fans are controlled with this fan control based on CPU or motherboard temperature.

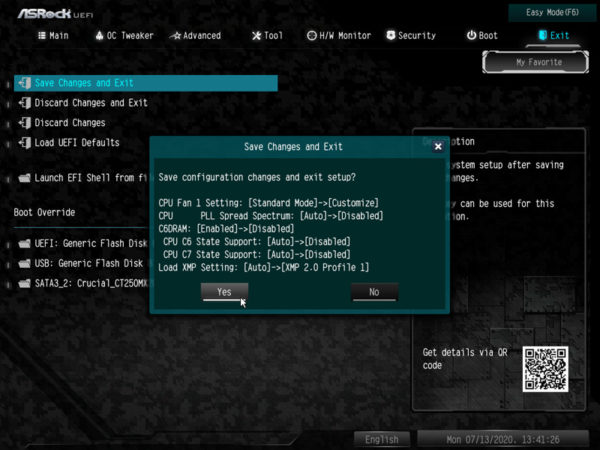

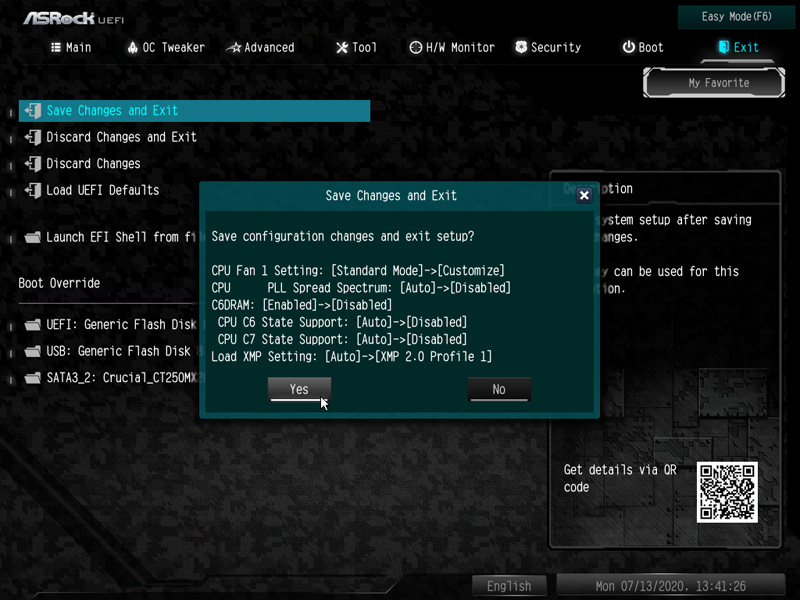

If everything is set, simply store the settings as usual with the F10 key and confirm with Z or on an English keyboard with Y. A new feature of ASRock is that all changes made are shown to the user before saving them – very practical!
