The assembly of the acrylic glass display holder without front screen...
First of all remove the internal protective plastic film from the acrylic
glass holder, because you cannot take it
easy off after the assembly.
The outside protective plastic film can remain up to the end of the assembly
on the acrylic glass holder,
but if you work carefully you can directly take it off.
Here you see a pic from the acrylic glass holder without
plastic film ...
Here's a picture of the wedges contained in the set (2x wood and 1x
plastic) ...
Here's a picture from the top of the acrylic glass holder ...
Simply put the two wood wedges at both sides between the frontscreen
and the rear mounting plate, the wood wedges may not rise up into the
recess of the display, if you cannot put the display in the acrylic glass
holder.

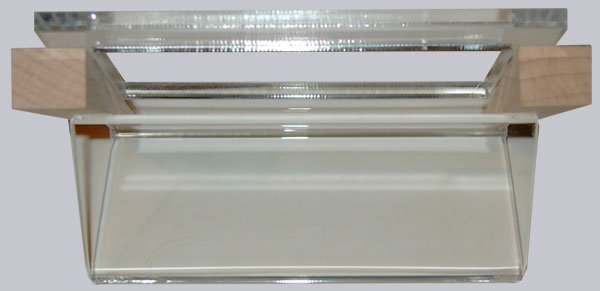

If you have done so far, it looks like this ...

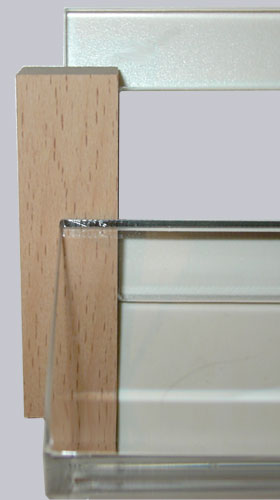

Here's a picture how to put in the wood wedges ...
Now you can insert the display carefully from the rear into the recess,
have a look that you don't scratch
with the display.
If the distance of the rear mounting plate is not far enough away from
the front, push the wood wedges
simply again a little bit.
After this you use the provided plastic wedge with the grooved side for
rear mounting plate,
this should be still loose then (approx. concisely with the display plate)
- imprint this not firmly!

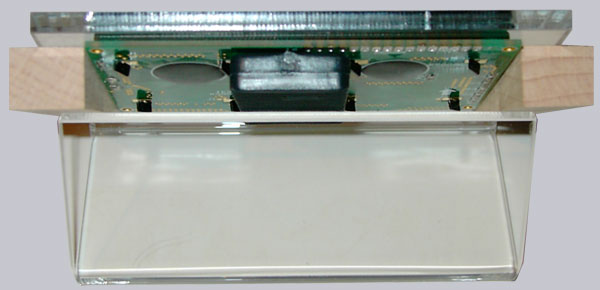

After this it should look like this ...
Now you pull simply the two wood wedges and the black plastic wedge
will be pressed against the display,
with which the display is held.

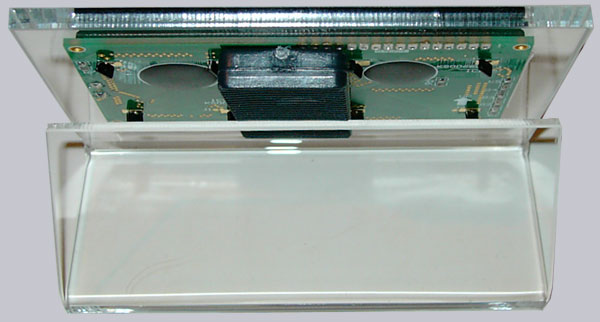

That's it! Have a look from the rear ...
And a view from the front ...
For cleaning use little detergent or antistatic plastic cleaner on a
lint free cloth and everything is cleaned.
Please don't use other cleaning stuff to the acryl parts because they
could get scratches !
