Manufacturer Gigabyte
Name GA-K8NF-9
Type / Chipset Socket 939 / nVidia nForce4-4X Chipset
Dimensions
+ 18 mm (40 mm radius) around the socket to the next capacitor or other parts of the
mainboard - for further information see Fit for Fan.
The overall size is 305 x 245mm.
Slots ++ 3x pci, 1x PCI Express 1x16/2x1, 4x DDR PC2100 - PC3200 (max. 4GB RAM)
Connectors

+++ 1x Floppy, 4x UDMA133, 4x SATA150 RAID 0+1, 1x serial, 1x IrDA, 1x parallel, 2x PS/2,
onBoard 10/100/1000 Mbps base-T Ethernet LAN (Vitesse 8201 phy),
10x USB 2.0/1.1 (6x internal, Slot bracket for 2x int. is included), 3x IEEE1394b Firewire,
8-Channel AC'97 RealTek ALC850 onboard with 6x 3.5 mm connectors
(1x int. CD in, ext. S/PDIF In, ext. S/PDIF Out, ext. Line in, ext. Mic, ext. Front out,
ext. Side out, ext. Rear out, ext. Center/Subwoofer) and 2x fan connectors.

Vcore ++++ BIOS between 0.80 Volt and 1.75 Volt
Multiplier ++++ BIOS between 4x and 25x (max multi depends on used CPU) and 1x to 4x HT
Host Frequency ++++ BIOS between 200 and 456 MHz (PCIe 100 - 150 MHz)
VIO, VDD, etc. ++++ VDDR +0.1 - +0.2 / VPCIe +0.1 - +0.3 / V HT-Link +0.1 - +0.3
Performance**** ++++ Benchmark ratings with AMD Athlon 64 3000+ Venice Processor.
1x Gigabyte GV-NX66T128VP Nvidia 6600 GT PCIe graphic card: 7558 points with 3DMark 2003
Manual and
Labeling
++++ Very well readable, complete motherboard inscription, a very detailed motherboard manual
in English and short guide for fast beginning.

Overall

+++ The GA-K8NF-9 Socket 939 PCIe board has at present a price of approx. 80 Euro (11/2005)
and is appropriate thereby in the lower to middle price segment of the Socket 939 PCIe boards.

Gigabyte brought the K8NF-9 a Socket 939 board with only one PCIe 16x Slot on the market,
which might be surely nevertheless interesting for several PCs.
Because due to the standardized Motherboard size one has unfortunately the choice between
3 pci Slots with 1x PCIe 16x Slot or 2 pci Slots with 2x (SLI) PCIe 16x video card Slots.

On this quite inexpensive nForce4 Motherboard was selected the variant with 3 pci Slots,
which can naturally quite have their meaning if you're using various pci interface cards.
Furthermore the four S-ATA 150 RAID connectors, 2 connectors for up to 4 UDMA-133 HDDs
and the 4 DDR memory modules with DUAL channel support (up to 4GB) are controlled by the
nVidia nForce4-4X chipset.
The sound chip is the well-known 8-channel ALC850 with six 3,5mm jacks for the 8 channel sound.
Besides Gigabyte used even the Vitesse 8201 LAN chip, which provides up to 1 Gigabit network
speed and thus can be used optimally for a fast home network.

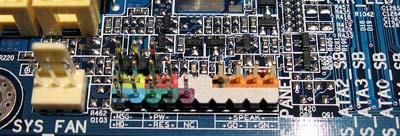

All connectors are exemplary colored marked and the LED connector pin row are marked with
small "+" symbols, well done!

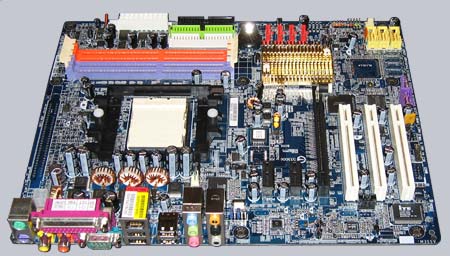

Click to enlarge !

Regarding the overlocking and the tuning options of the components Gigabyte gave the BIOS
several options, which are made accessible partially only with a hidden CTRL+F1 key combination.
Because it's possible to get further features in the BIOS, if one presses CTRL + F1 key, since this releases the Advanced chipset menu with many memory timing and the HT clock options.
Whereby other important voltage adjustments e.g. Vcore (CPU), VDDR (memory),
PCIe core voltage are alterable without this key combination.
Furthermore all frequencies are extensively alterable like the host frequency, memory frequency
and PCIe frequency, so it's very easy to overclock with this mainboard.
BTW Gigabyte eliminated the frequency input bug in the meanwhile, by permitting the
frequency choice only with the selection field.
However one shouldn't overdraw the overclocking without further cooling measures straight
with the HT multi, since the nForce 4 chipset is unfortunately only passive cooled and becomes
quite warm already with the usual frequency and moderate voltages.
Thus as always absolutely respects good cooling, whereby the overall height of an active chipset
cooler may not be too high, so that the video card can be completely inserted.

Result: The Gigabyte GA-K8NF-9 Socket 939 PCI express Motherboard offers beside the good
basic equipment a great performance, extensive overclocking options and a well board layout
for little money.
Thus who attaches no importance to the second PCI express 16x Slot for SLI and would like to
acquire an inexpensive and stable PCIe board, is with this motherboard served in the best way
for current Socket 939 processors.

Special thanks to Gigabyte for their support.


Click to enlarge !

Click to enlarge !



**** All Socket 939 motherboard reviews since 01.11.2005 are based on an AMD Athlon 64 3000+ Venice processor,
1x (or SLI systems with 2x) Gigabyte GV-NX66T128VP Nvidia 6600 GT PCI Express video cards and the
following software configuration:
Microsoft Windows XP SP2, DirectX 9.0c, Forceware 81.85 video driver and 3DMark 2003.
All benchmark results should only offer a comparison among themselves for a comparison.

Back to the Mainboard comparison !
