Crucial M550 512GB M.2 SSD Review

Manufacturer Crucial
Article number CT512M550SSD4
Capacity 512GB (512GB NAND)
Interface M.2 SATA 6Gb/s
Cache 512MB
Controller Marvell
Flash Type Micron MLC – Multi-Level-Cell
Size M.2 (80 x 22 x 3,5mm)
Weight approx. 13 gramm
Speed Read up to 550 MB/s / Write up to 500 MB/s
Seek Time
Power Consumption ~ 0.15 Watt average in operation
MTBF 1.5 million hours
Other SMART Support, 256-Bit AES-Encryption, TCG Opal 2.0 compliant firmware, RAIN, ECC, TRIM, DEVSLP, Adaptive Thermal Protection, Power Loss Protection

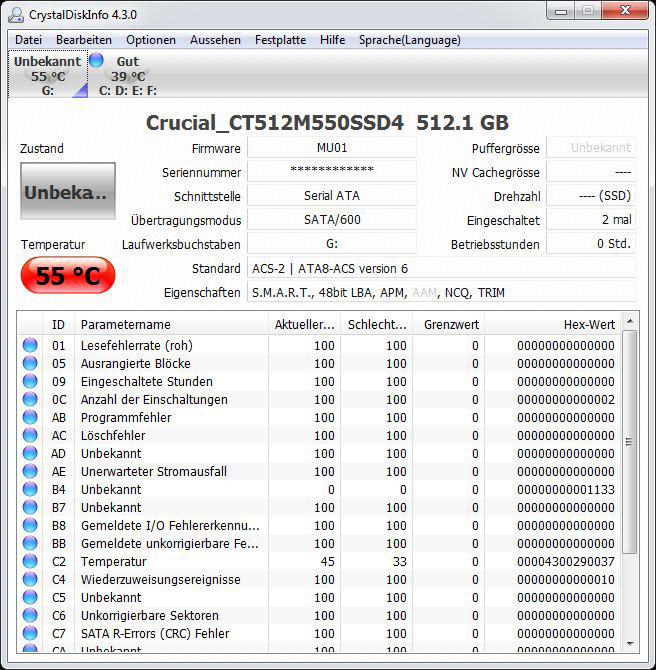

Here is a screenshot of Snipping the CrystalDiskInfo 4.3.0 SSD and HDD information software, where is immediately noticeable, that the Crucial SSD is now also equipped with a temperature sensor, which is able to throttle the SSD speed if the SSD reaches too high temperatures. BTW., in our test we have achieved up to approx. 67°C temperature, which is already very high.

SSD firmware update …

At review date, Crucial offered no newer firmware download than the already installed MU01 firmware for the M.2 M550 SSD.
