Enermax Platimax D.F. 600W Power Supply Review

Installation and operation …

The Enermax Platimax D.F. power supply was tested with the following system:

PC:
Intel Core i7 6700K @ 4 GHz
4x 4 GB DDR4 RAM
ASRock Z170 Extreme6+
Asus Strix Nvidia GeForce 980ti
Samsung Pro 840 Pro 256 GB SSD
CM Storm Stryker case

Software:
Windows 10 Professional 64 Bit
Furmark
Prime95

Gauge:
Uni-T TRMS UT71A

The installation went smoothly, as expected.

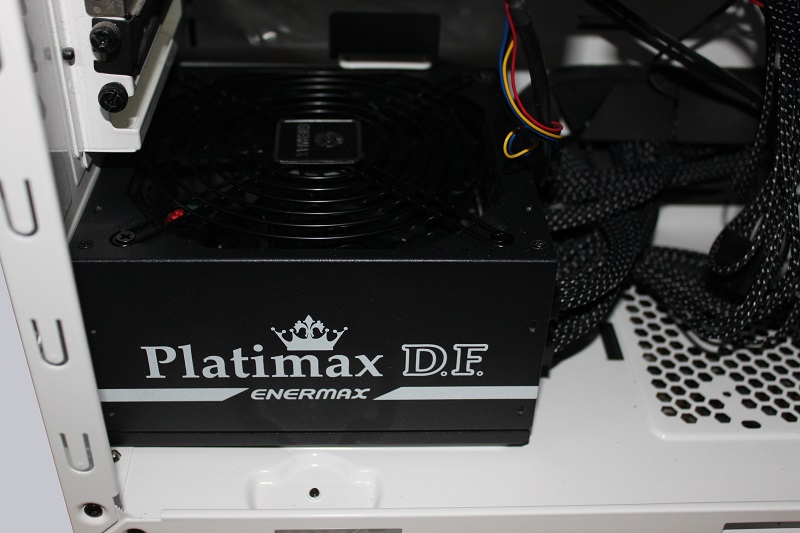

enermax_platimax_df_600w_19

Even the cables were no problem in our large test case. At the first start, the fan of the power supply could not be heard separately from the total noise of the PC. Even under load, the installed fan with Twister bearing quietly performed its service.

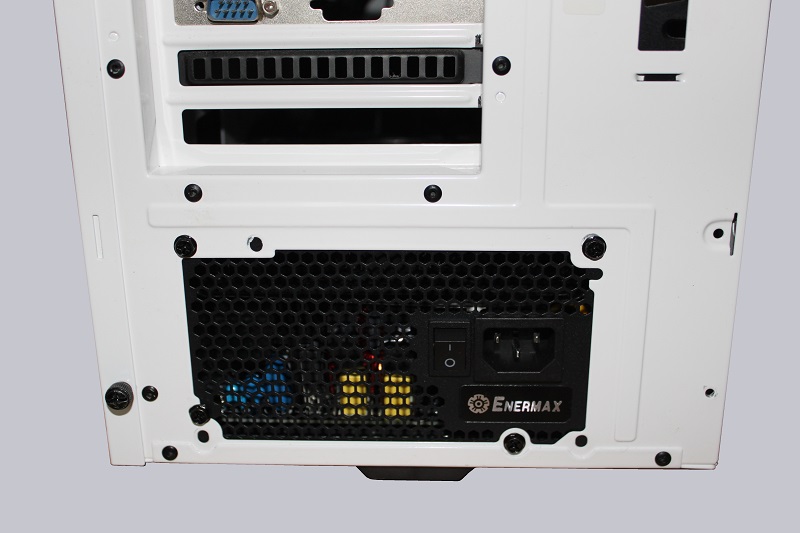

enermax_platimax_df_600w_20

The power consumption was approximately 430 watts under full load, which corresponds to a utilization of the power supply of approx. 72%. During the operation, we were also unable to hear the feared coil whining. This occurs when the coils are not firmly attached to the ferrite cores and begin to vibrate under load. This is often the case with graphics cards, but has also been observed on motherboards and power supplies.

This can be used to calculate the electricity consumption and the electricity costs:


Interactive power consumption calculator

In the following diagram, we summarized the voltages that the Enermax Platimax D.F. 600W generated under load as well as in idle mode.

Voltage measurements
Voltage Idle Load
3,3 Volt 3,38 V 3,38 V
5 Volt 5,08 V 5,08 V
12 Volt 12,19 V 12,20 V

“Electrifying” is actually nothing about this table. As expected, the Enermax offers an absolutely stable output voltage even under high loads.

The function of the fan, when turned on only in the opposite direction and then to switch to the cooling mode, also ran without problems. Whether this function actually minimizes the dust consumption of the power supply, only the long-term test will show.
