The technical data …
| Manufacturer | Sapphire |
| Description | Nitro+ Radeon RX 5700 XT 8G SE |
| Dimensions | 306 x 135 x 49 mm (LxWxD) |
| GPU | Navi 10 XL RDNA 1.0 Shader units: 2560 Textur units: 160 ROPs: 64 Default clock 1770 MHz Boost: 1905-2010MHz |
| RAM | GDDR6 8 GB 1750 MHz 256-Bit memory interface 448 GB/s memory bandwidth |
| Cooling | 2-slot cooler 3x axial-fans (2x 95mm + 1x 87mm, detachable) 0dB-Zero-Fan-Mode |
| Connections | 2 x Display Port 1.4 2 x HDMI Port 2.0b |
| Miscellaneous | PCI-Express 4.0 DirectX 12 OpenGL 4.6 max. resolution 7680×4320 Pixel HDCP Support 2.2 LED-lighting (RGB) Base-clock overclocked (+165MHz) Boost-clock overclocked (+105MHz) Power consumption 265 W |

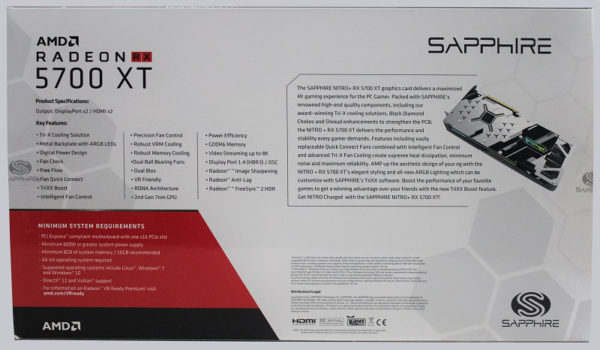

Sapphire Nitro+ Radeon RX 5700 XT 8G SE graphics card Layout, design and features …
