Technical Data …
| Manufacturer | Streacom |
| Description | F7C alpha optical |
| Dimensions (W x H x L) | 240 x 100 x 250mm |
| Weight | 2.10 kg |
| Coulour | matte-silver (also available in black) |
| Supported motherboard sizes | Mini-ITX |
| Expansion slots | external: 1x optical SlimLine Slot-in, internal: 2x 2.5″ + 2x 3.5″ or 5x 2.5″ |
| Fan | 1x 90 oder 80mm |
| CPU heatsink | maximum height 55mm (28mm with 3,5″ HDD installed) |
| Video card | maximalum length 230mm (low-profile) |
| Ports | 2x USB 3.0 |
| Other | Nano-PSU obligatory, MCE Compatible IR Receiver & Remote (not Included), 4mm material thickness |

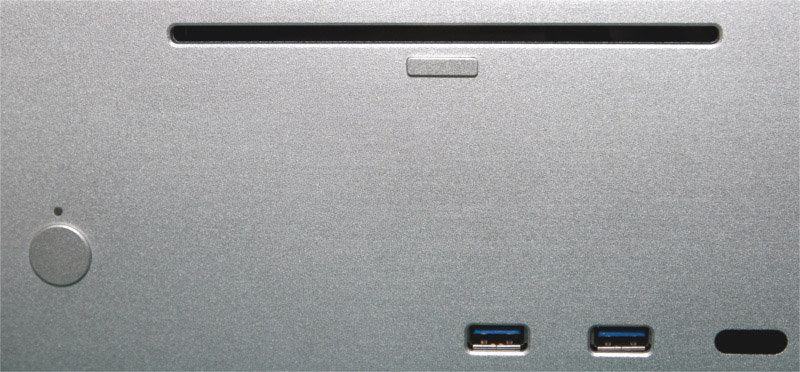

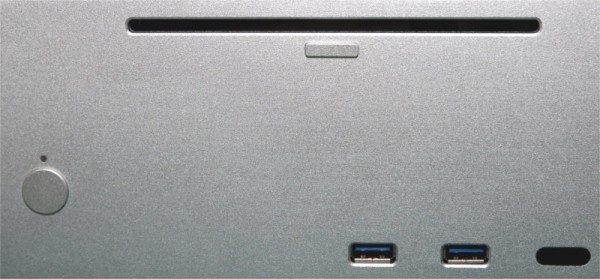

Streacom F7C layout, design and features exterior …
