ASRock Motherboard Preview August 2007
The newest ASRock Motherboards

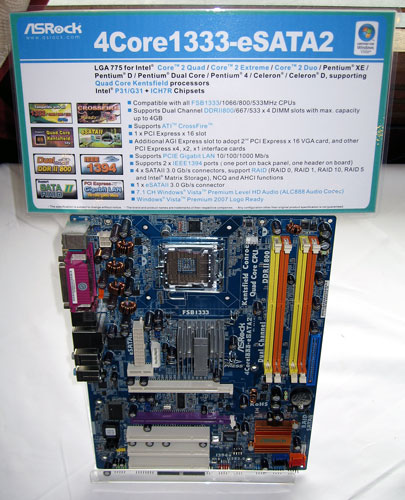

The new ASRock 4Core1333-eSATA2 Motherboard ...

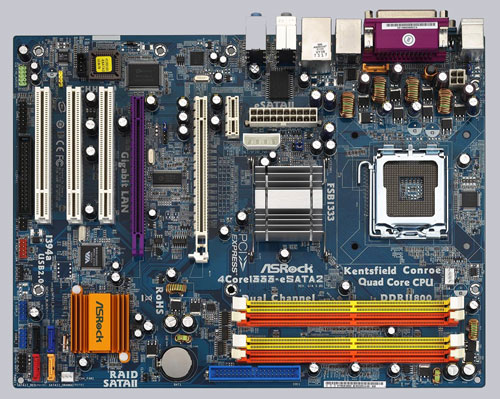

Here's another picture of the ASRock 4Core1333-eSATA2 Motherboard ...
The manufacturers technical data for the ASRock 4Core1333-eSATA2 Motherboard ...
- LGA 775 for Intel Core 2 Quad / Core 2 Extreme / Core 2 Duo / Pentium XE / Pentium D / Pentium Dual Core / Pentium 4 / Celeron / Celeron D, supporting Quad Core Kentsfield processors
- Compatible with all FSB1333/1066/800/533MHz CPUs
- Supports Dual Channel DDRII800/667/533 x 4 DIMM slots, with max. capacity up to 4GB
- Supports ATI CrossFire
- 1 x PCI Express x16 slot
- Additional AGI Express slot to adopt 2nd PCI Express x16 VGA card,
and other PCI Express x4, x2, x1 interface cards
- Supports PCIE Gigabit LAN 10/100/1000 Mb/s
- Supports 2 x IEEE1394 ports (one port on back panel, one header on board)
- 4 x Serial ATAII 3.0 Gb/s, support RAID (RAID 0, 1, 10, 5 and Intel Matrix Storage), NCQ and AHCI
- 1 x eSerial ATAII 3.0 Gb/s (shared with 1 SATAII port)
- 7.1 CH Windows Vista Premium Level HD Audio (ALC888 Audio Codec)
- Windows Vista Premium 2007 Logo Ready
All pictures and article are subject to the copyright 2007 of www.ocinside.de
|
