ASRock Motherboard Preview August 2007
The newest ASRock Motherboards

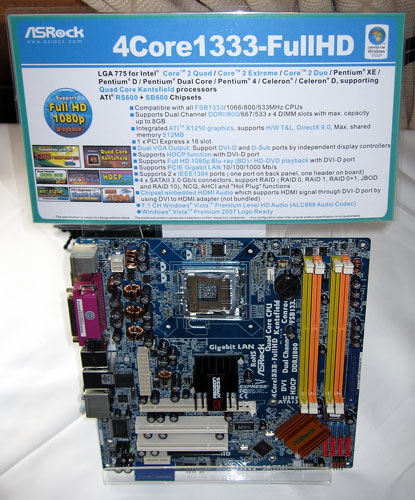

The new ASRock 4Core1333-FullHD Motherboard ...

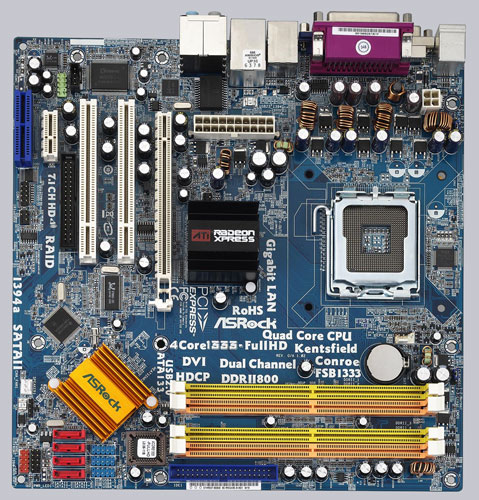

Here's another picture of the ASRock 4Core1333-FullHD Motherboard ...
The manufacturers technical data for the ASRock 4Core1333-FullHD Motherboard ...
- LGA 775 for Intel Core 2 Quad / Core 2 Extreme /
Core 2 Duo / Pentium XE / Pentium D / Pentium
Dual Core / Pentium 4 / Celeron / Celeron D, supporting
Quad Core Kentsfield processors
- Compatible with all FSB1333/1066/800/533MHz CPUs
- Supports Dual Channel DDRII800/667/533 with 4 DIMM slots, maximum capacity up to 8GB
- Integrated ATI X1250 graphics, DirectX 9.0, Max. shared memory 512MB
- 1 x PCI Express x16 slot
- Dual VGA Output: Support DVI-D and D-Sub ports by independent display controllers
- Supports HDCP function with DVI-D port, to enjoy better quality with High Definition HDCP Encryption contents
- Supports 1080p Blu-ray (BD) / HD-DVD playback with DVI-D port
- Supports PCIE Gigabit LAN 10/100/1000 Mb/s
- Supports 2 x IEEE 1394 ports (one port on back panel, one header on board)
- 4 x SATAII 3.0 Gb/s, support RAID (RAID 0, 1, 0+1, JBOD and RAID 10) , NCQ, AHCI and Hot Plug functions
- 7.1 CH Windows Vista Premium Level HD Audio (ALC888 Audio Codec)
- Windows Vista Premium 2007 Logo Ready
