Antec HCG 750W Gold Power Supply Review

The technical data …

Manufacturer Antec
Description HCG 750W Gold
Dimensions 140 mm x 150 mm x 86 mm (LxWxH)
Weight 1.57 kg without cable
2.85 kg total incl. packaging
Color Black
Connections Power cable
2x mainboard
4x 6 pin SATA/Molex
5x 8 pin PCI-E/CPU
Cable 1x 24 pin (20+4)
4x PCI-E 8 pin (6+2)
2x CPU 8 pin (4+4)
3x Molex
1x Floppy
Protection functions OPP, OVP, UVP, OCP, OTP, NLO, SIP

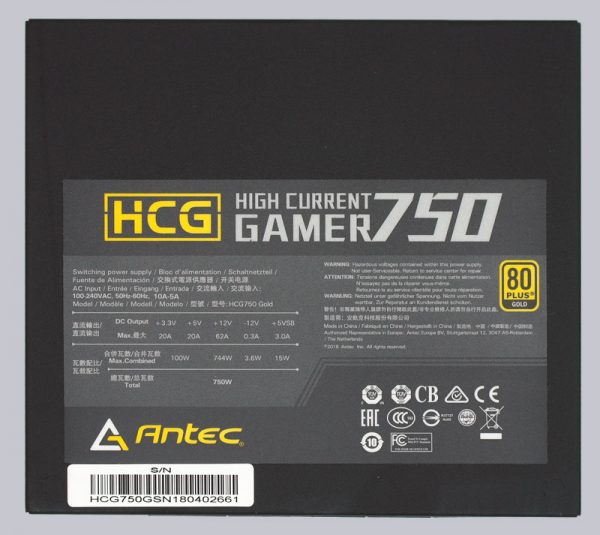

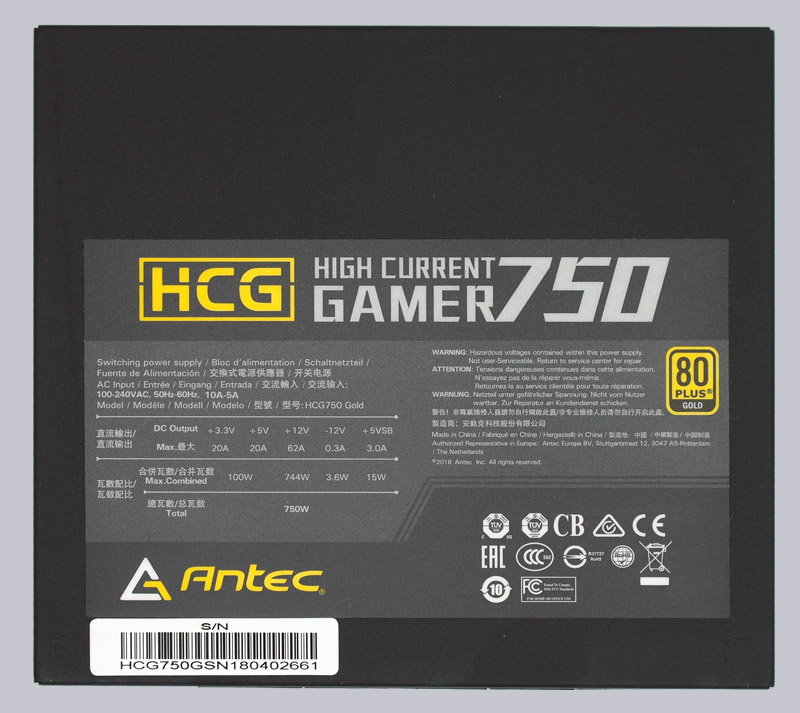

voltages/currents 230V 50-60 Hz 4.5-9.5A AC
+12V DC 62A 744W
-12V DC 0.3A 3,6W
+5 VSB 3A 15W
+5V and +3.3V 20A combined 100W
Power 750W
Miscellaneous Efficiency 80 Plus Gold
2-stage Hybrid, Normal
120 mm FDB fan
fully modular
10 years manufacturer’s warranty/td>

Antec HCG 750W Gold Layout, Design and Features …
