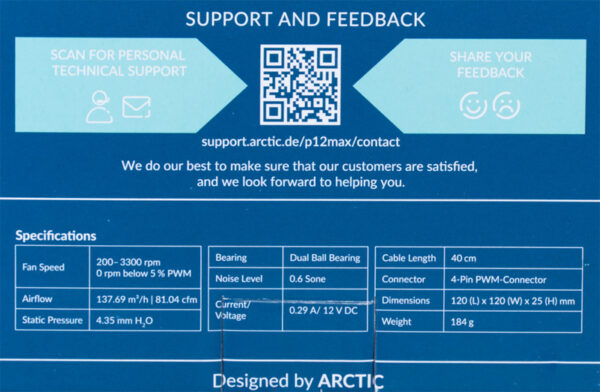

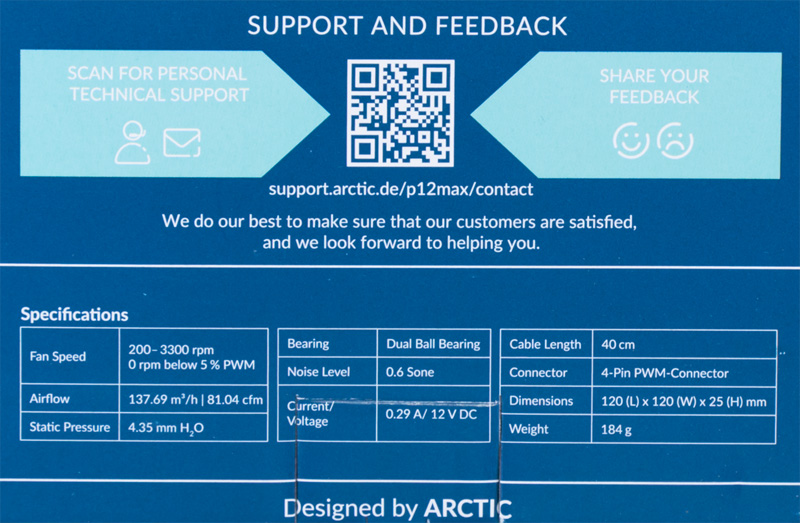

The technical data …
| Manufacturer | Arctic |
| Description | P12 Max |
| Manufacturer number | ACFAN00280A |
| Fan Dimensions | 120 x 120 x 25 mm |
| Fan Weight | 184g |
| Fan bearing | double ball bearing |
| Rated voltage | 12V |
| Fan Power consumption | 0.29A / 3.48W |
| Fan Starting voltage | 3.9V or 5% PWM |
| Fan speed | 200 – 3300 rpm 0 rpm at <5% PWM |
| Lighting | not available |
| Connection | 1x 4 Pin PWM connector |
| Cable length | 400mm |
| Air flow | 81.04CFM / 137.69m³/h |
| Static pressure | 4.35 mmH²O |
| Volume | 0.6 Sone |
| Lifetime | 500000h MTTF |
| Warranty | 6 years |
We are pleased that Arctic also provides a fabulous 6-year warranty for these high-revving fans. 500000 hours MTTF are also impressive and let us hope for a long, worry-free operation of the fans.
Arctic P12 Max Layout, design and features …
