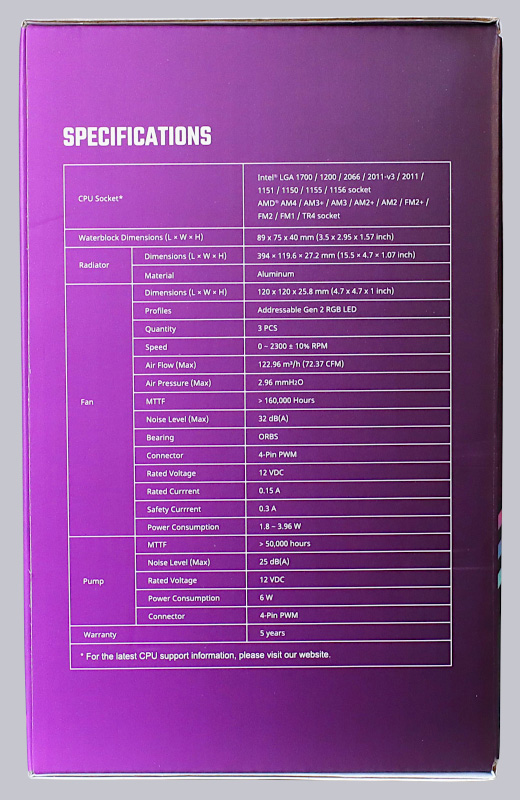

The technical data of the Cooler Master MasterLiquid PL360 Flux …
| Manufacturer | Cooler Master |
| Description | MasterLiquid PL360 Flux |
| Product number | MLY-D36M-A23PZ-R1 |
| Dimensions Radiator fan | 120 x 120 x 25 mm (HxWxD) |
| Fan speed | 0 – 2300 rpm |
| Air flow | 122.96 m3/h – 72.37 CFM |
| Volume | max. 32 dBA |
| Air pressure | 2.96mmH2O |
| Dimensions Radiator | 27.2 x 119.6 x 394 mm (HxWxD) |
| Material Radiator | Aluminium |
| Connection type | 3x 4 pin PWM (fan) + 4 pin (pump) + 3 pin aRGB 5V |
| Special features | aRGB illumination |
| Socket compatibility | Intel 1150/1151/1155/1156/1200, 1700 (Mounting kit for socket 1700 possibly not yet included. 1700 conversion kit available free of charge), 2011-0/2011-1/2011-3/2066 AMD AM2/AM2+/AM3/AM3+, AM4, AM5, FM1/FM2/FM2+, TR4/sTRX4/sWRX8/SP3 |
Cooler Master MasterLiquid PL360 Flux Layout, design and features …
