Benchmark values and test results …
Let us continue with the benchmark results. SATA3 drives are tested with an ASRock 890GX Extreme3 motherboard and test results of M.2 modules are performed using an ASRock Z97 Extreme6 motherboard. At present, Microsoft Windows 7 Ultimate Edition is used as the operating system.
The SSD drive speed was examined and compared with the following benchmark software:
AS SSD Benchmark 1.4.3704.27281 – Download
ATTO Disk Benchmark v2.46 – Download
CrystalDiskMark 3.00 – Download
HD Tach 3.040 – Download
SiSoftware Sandra 2011 – Download
AS SSD benchmark results …
The SSD benchmark values offers a very good reference point of the maximal possible reading and writing performance, the speed with smaller files and the respective access time. The 1 TB Crucial drive achieved an extremely high sequential read and write speed in AHCI mode.
Although you should operate the SSD in AHCI mode, we have spared no effort to run all benchmarks additionally in IDE mode. The total score in the IDE mode (indicated by pciide below firmware MU01) reached 363 points. But in AHCI mode the result is more than double that.

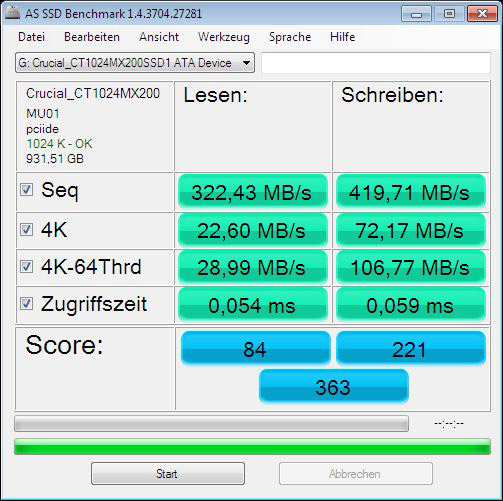

Here is a Snipping screenshot of AS SSD benchmark values (SATA3 IDE):
In AHCI mode also another result beneath the read performance was much higher than in the IDE mode and that is the important value “4K-64Thrd”. 4K means that small 4K blocks are read and/or written and with the 4K 64Thrd this is distributed on 64 Threads at the same time. Thus the benchmark program simulate for example a typical program start.

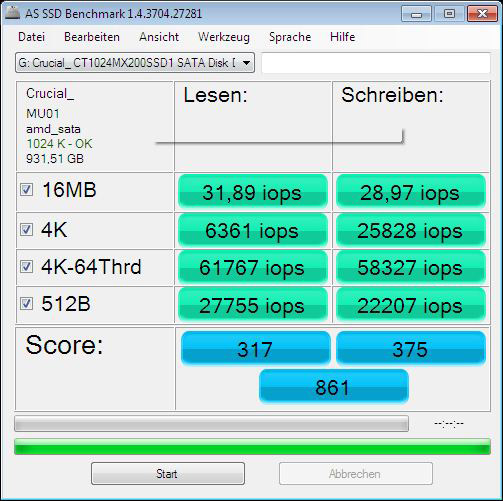

Because the weighting of this value in the AS SSD benchmark tool is very high, the total score in AHCI mode is more than twice as high with 861 points. The Crucial M500 480 GB SSD reached 685 points, the Crucial M550 512 GB SSD reached 907 points, the Crucial MX100 512 GB SSD reached 856 points and the Crucial MX200 512 GB SSD reached 882 points – each in AHCI mode on the same test system. The usable capacity is slightly higher than the M500, but compared to the MX100 and M550 it has fallen back slightly.
Who think now about changing its SATA port in the BIOS from native IDE and/or legacy IDE to AHCI, should change first for example (if possible) only one part of the SATA port, where the drive with the operating system is not installed. Because if one like to save the new Windows installation, one must install the hard disk controller driver before changing SATA mode from IDE to AHCI – alternatively there are also Registry entries for it. If you like to upgrade from HDD to SSD, you should not copy the content 1:1 only with a tool like Norton Ghost or Acronis Backup. It is better to install a fresh Windows 7 or Windows 8 or adjust at least the SSD Alignment. We help you with questions to this topic or all other PC related questions at any time 24/7 in our PC Forum.
The comparison of the AS SSD benchmark results is extended with each new HDD/SSD test. Here you can see some SSDs in comparison to the Crucial MX200 1 TB 2.5″ SSD, and the graphic will be updated periodically with new SSD drives. At the moment the top of total AS SSD scores is lead from a Plextor M6e 256GB M.2 SSD, closely followed by the Crucial M550 512 GB mSATA, M.2 and SATA SSD – then followed by the new MX200 500GB and 1 TB SSD.
ATTO disk benchmark results …
The ATTO disk benchmark values gives a very good overview about the write and read rate on different file sizes. These values are maximum ratings, which are different to the previously continuous transfer rate benchmarks, since this benchmark may even reach a higher overall performance with slower SSDs.

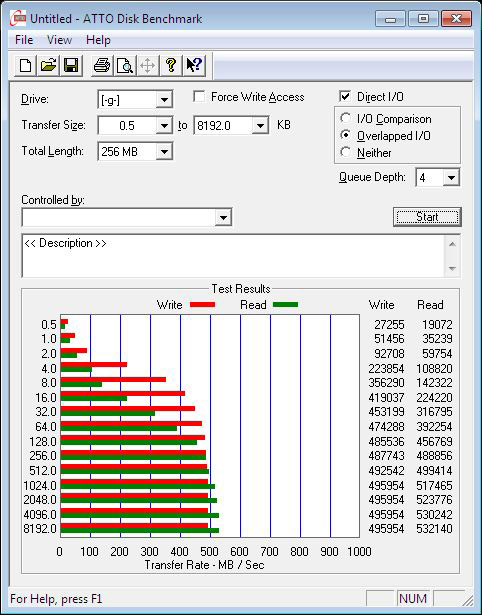

At the Crucial MX200 500 GB SSD is the reading speed (green) from a transfer size of about 256KB higher than the write speed (red) and reaches the maximum read speed of 532140 KB at a transfer size of 2048KB.
The ATTO disk benchmark values are compared with a small transfer size of 32KB and a large transfer size of 8192KB. The bar chart already includes a comparison to some SSDs and HDDs, which joins the Crucial MX200 in ATTO between the MX100 and the M550.

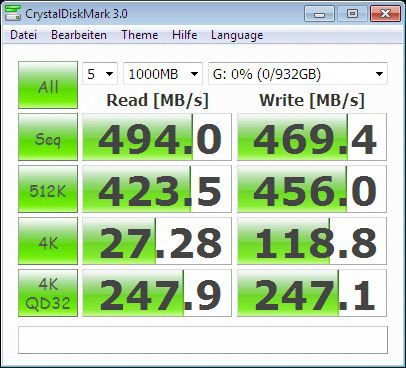

Here especially the 4K-64Threads values like before has enormously high sequential read values of 494.0 MB/s and write values of 469.4 MB/s.
The following diagram shows the CrystalDiskMark results once again compared with other SSDs and platter drives, which are extended step by step. In the CrystalDiskMark comparison one can see significant differences between the to-date tested of the Solid State Drives and Hard Disk Drives, where the Crucial MX200 1 TB SSD can not reach the top.
HD Tach result …
With HD Tach one can measure the gradient of the performance, but the SSD transfer is not comparable with a conventional HDD. New logical NAND cell access of the SSD controller results like some other equal designed SSDs in strong varying values with the latest HD Tach Version 184.108.40.206 version, which is written for hard disk drives.

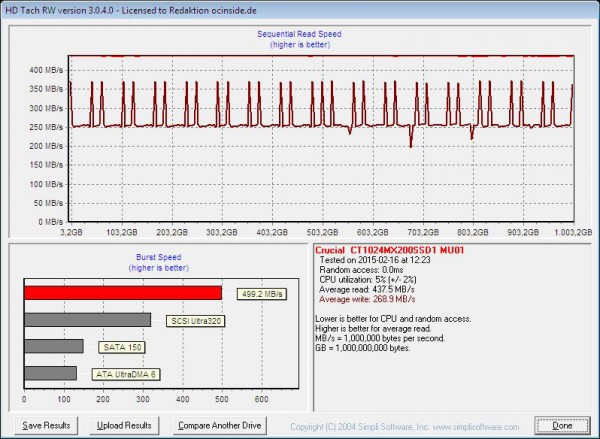

HD Tach shows the Crucial MX200 1TB SSD in AHCI mode during write operations uniform peaks and a continuous read rate with the lowest displayed access time display of approx. 0.0ms.
To compare these results you can move the mouse over the following drives to see their respective benchmark results:
Crucial MX200 1TB 2.5″ SSD at SATA3 AHCI, ADATA S511 120GB SSD at SATA3 AHCI, ADATA S511 120GB SSD at SATA3 AHCI, Crucial MX100 512GB 2.5″ SSD at SATA3 AHCI, Crucial MX200 500GB 2.5″ SSD at SATA3 AHCI, Crucial M500 480GB 2.5″ SSD at SATA3 AHCI, Crucial M550 512GB 2.5″ SSD at SATA3 AHCI, Crucial M550 512GB M.2 SSD at SATA3 AHCI, Crucial M550 512GB mSATA SSD at SATA3 AHCI, 2x Crucial m4 128GB 2.5″ SSD at SATA3 RAID, Crucial m4 128GB 2.5″ SSD at SATA3 AHCI, Crucial m4 128GB 2.5″ SSD at SATA3, Crucial m4 256GB 2.5″ SSD FW 000F at SATA3 AHCI, Crucial m4 256GB 2.5″ SSD FW 0309 at SATA3 AHCI, Crucial m4 256GB 2.5″ SSD FW 0002 at SATA3 AHCI, Crucial m4 256GB SSD FW 0309 at SATA3 IDE, Crucial m4 256GB 2.5″ SSD FW 0002 at SATA3, Crucial C300 64GB 1,8″ SSD at SATA3, Crucial RealSSD C300 256GB 2.5″ SSD at SATA3, Crucial RealSSD C300 256GB 2.5″ SSD at SATA2, Hitachi 7K1000.C 1TB HDD, MX-DS Fusion 60GB SSD SATA3 IDE, MX-DS Fusion 60GB SSD SATA3 IDE, MX-DS Turbo 120GB SSD at SATA3 AHCI, OCZ Agility 128GB SSD, Plextor M6e 256GB M.2 SSD PCIe AHCI, 2x Plextor M5 Pro Xtreme 256GB 2.5″ SSD at SATA3 RAID0, Plextor M5 Pro Xtreme 256GB 2.5″ SSD at SATA3 AHCI, Plextor M5M 128GB mSATA SSD at SATA3 AHCI, Samsung Series470 128GB SSD AHCI, Samsung Series470 128GB SSD Legacy IDE, Seagate Constellation.2 1TB 2.5″ HDD at SATA3, Toshiba MK8007GAH 1.8″ Festplatte.
The comparison of HD tach benchmark results shows the enormous speed of the Crucial MX200 1 TB SSD, which delivers in HD Tach a head to head race with the MX100 and M550 512 GB SSD and is well above the Crucial M500 480 GB SSD.
Of course, SiSoftware Sandra benchmark should not be missing in this test series. SiSoftware offers with their SiSoft Sandra program a very comprehensive tool, which contains a lot of tools to get very reliable test results of all hardware components.
The average access time of the Crucial MX200 1 TB SSD is in SiSoftware Sandra with 24us extremly low and the drive index of 540.67 MB/s is very high

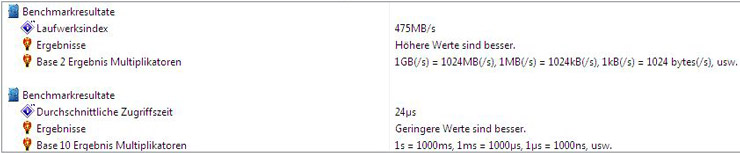

In the write performance measurement, the average access time of the Crucial MX200 1 TB SSD in SiSoftware Sandra is also at extremely low 24us and the drive index reached very high 475 MB/s.
