The technical data of the Enermax Liqmax III 120 …
| Manufacturer | Enermax |
| Description | Liqmax III 120 |
| Product number | ELC-LMT120-HF |
| Dimensions Radiator | 120 x 154 x 27 mm |
| Dimensions with fan | 120 x 154 x 53.1 mm |
| Material | Aluminum |
| Fan type | UCHF12P-LMT |
| Fan dimensions | 120 x 120 x 25 mm |
| Rated voltage | 12V |
| Fan power consumption | 0.27A | Fan speed | 500 – 2000 rpm +/- 10% |
| Estimated lifetime | 160 000 Std |
| Connection | 4 Pin PWM |
| Material CPU Block | Copper |
| Pump rated voltage | 12V |
| Pump current consumption | 0.45A |
| Power consumption LED | 0.22A |
| Estimated lifetime | 50 000 h |
| Connection | 3 Pin + SATA (via supplied adapter) + 4 Pin RGB Header |
| Socket compatibility | Intel 1150, 1151, 1155, 1156, 1366, 2011, 2011-3, 2066 AMD FM1, FM2, FM2+, AM2, AM2+, AM3, AM3+, AM4 |
| RGB compatibility | Asus Aura, ASRock Polychrome Sync, MSI Mystic Light, Gigabyte RGB Fusion 2.0 |
The technical data of the Enermax Liqmax III 120 RGB …
| Manufacturer | Enermax |
| Description | Liqmax III 120 RGB |
| Product number | ELC-LMT120-RGB |
| Dimensions Radiator | 120 x 154 x 27 mm |
| Dimensions with fan | 120 x 154 x 53.1 mm |
| Material | Aluminum |
| Fan type | UCHF12P-RGB |
| Fan dimensions | 120 x 120 x 25 mm |
| Rated voltage | 12V |
| Fan power consumption | 0.53A | Fan speed | 500 – 1600 rpm +/- 10% |
| Estimated lifetime | 160 000 h |
| Connection | 4 Pin PWM + 4 Pin RGB Header |
| Material CPU Block | Copper |
| Pump rated voltage | 12V |
| Pump current consumption | 0.45A |
| Power consumption LED | 0.22A |
| Estimated lifetime | 50 000 h |
| Connection | 3 Pin + SATA (per mitgeliefertem Adapter) + 4 Pin RGB Header |
| Socket compatibility | Intel 1150, 1151, 1155, 1156, 1366, 2011, 2011-3, 2066 AMD FM1, FM2, FM2+, AM2, AM2+, AM3, AM3+, AM4 |
| RGB compatibility | Asus Aura, ASRock Polychrome Sync, MSI Mystic Light, Gigabyte RGB Fusion 2.0 |

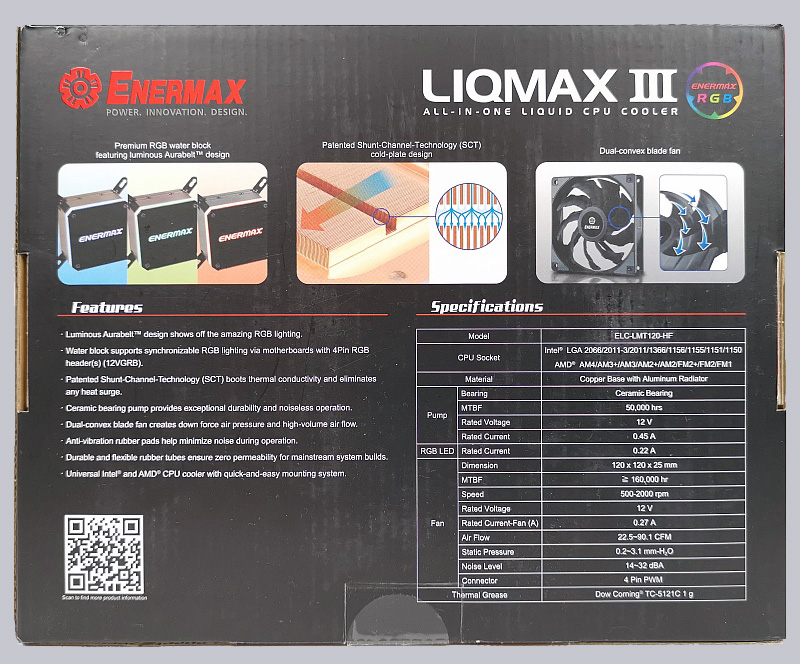

Enermax Liqmax III 120 Layout, design and features …
