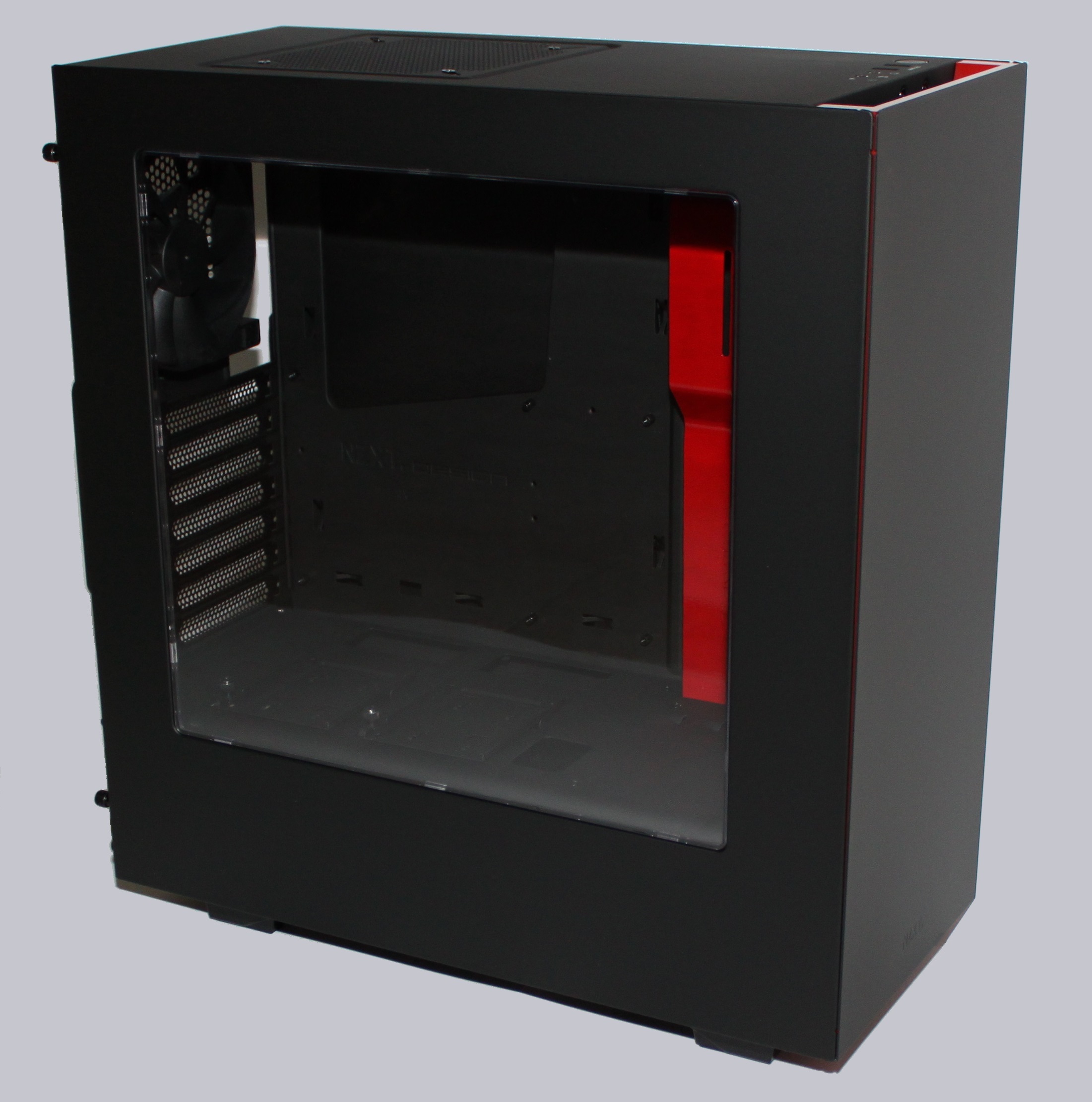

NZXT S340 Review

The technical data …

Manufacturer NZXT
Article number Source 340 Midi Case CA-S340W-B1 (black), CA-S340W-W1 (white)
Material SECC Steel, ABS plastic
Dimensions 200 mm x 445 mm x 432 mm
Color Black/Red
Weight 7.05 kg
Fans two installed fans,
1x top 120 mm / 140 mm (120 mm FN V2 fan installed)
1x back 120mm (120 mm FN V2 fan installed)
2x front, 2x 120 mm / 140 mm (no fan installed)
Bays External 5.25″: 0
Internal 3.5″: 2+1
Internal 2.5″: 2+1
Various Two dust filter (front and bottom)
Form Factor Mini-ITX, MicroATX, ATX
1x Audio/Mic / 2x USB 3.0 / On-/Off-button
Radiator slots
Front 2x 140/2x 120mm / 1x 240 mm / 1x 280 mm
Rear 1x 120mm
Graphics cards length: 334 mm with mounted radiator, 364 mm without mounted radiator
CPU Cooler: 161 mm maximum height
Manufacturer Warranty: 2 years


The attentive reader has of course already identified some points that seem quite strange. But of course we will discuss, as usual all the important features at

NZXT S340 Layout, Design and Features Exterior …
