| Manufacturer | Samsung |
| Article number | MZ5PA128HMCD |
| Capacity | 128GB |
| Interface | SATA2 3GB/s |
| Cache | 256 MB DDR2 SDRAM |
| Controller | Samsung 3-core MAX Controller |
| Flash Type | Samsung Toggle DDR NAND Flash memory MLC – Multi-Level-Cell |
| Size | 2.5″ (100 x 69 x 9mm) |
| Weight | 68 gramm |
| Speed | Read up to 250 MB/s / Write up to 220 MB/s |
| Seek Time | not specified |
| Power Consumption | 0,14 Watt idle / 0,24 Watt in operation |
| MTBF | 1.5 million hours |
| Other | TRIM Support, SMART Support, GC Support, Samsung Magician Software |

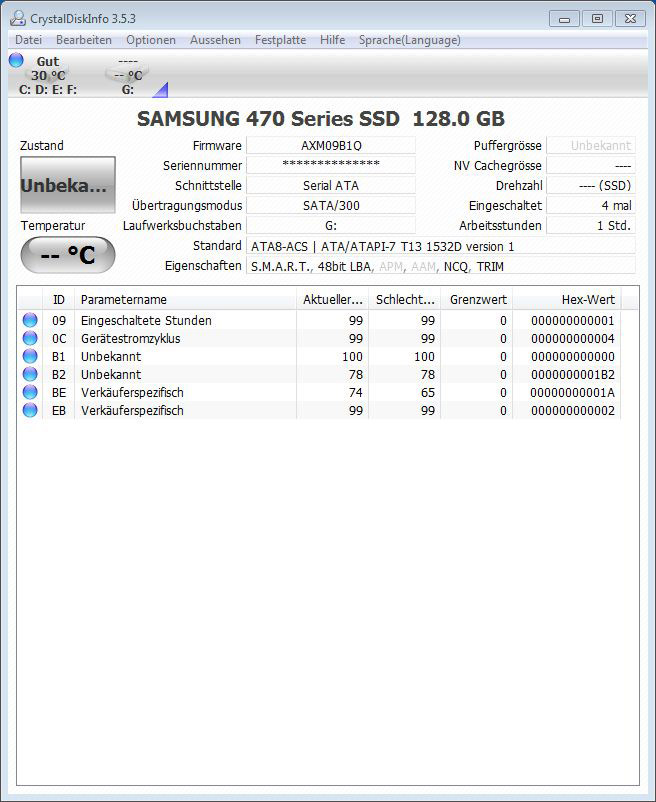

Here is a Snipping screenshot of the CrystalDiskInfo 3.5.3 SSD and HDD information software:
SSD firmware update …
Usually we update the firmware of the SSDs before we begin with the tests. To the point of testing time however no new firmware was found at Samsung, so that for all tests the original firmware version AXM09B1Q was used.
