Xigmatek Centauro 600W PSU Review

Today we published a review of the new Xigmatek Centauro 600W PSU. The 600 Watt Centauro 80PLUS Bronze PSU is modular build and available for a low price. In this review we take a look at the power consumption and the results of the Xigmatek Centauro XTK-CB-0600M and compare these values with some of our previously tested power supplies.

Thanks for the support …

Many thanks for the support with the Centauro 600W by the manufacturer Xigmatek.


The modular Centauro 600 Watt power supply has a price of approx. 79 Euro (11/2012).

The Xigmatek Centauro Power Force PSU is available with following power ratings: Xigmatek Centauro 600 XTK-CB-0600M approx. 79 Euro (11/2012) Xigmatek Centauro 700 XTK-CB-0700M approx. 89 Euro (11/2012) Xigmatek Centauro 800 XTK-CB-0800M approx. 99 Euro (11/2012) Xigmatek Centauro 1000 XTK-CB-1000M approx. 129 Euro (11/2012)

Here you can buy the Xigmatek Centauro 600W power supply for a low price. *Ad

The supply of the Xigmatek 600 Watt PSU …

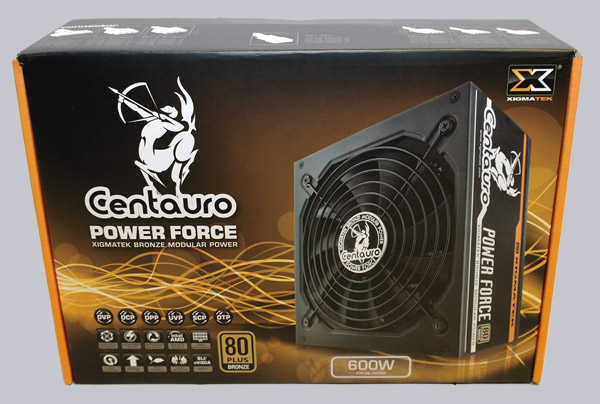

In this cardboard box comes the Xigmatek 80PLUS Bronze power supply with its accessories.

That is contained in the box …

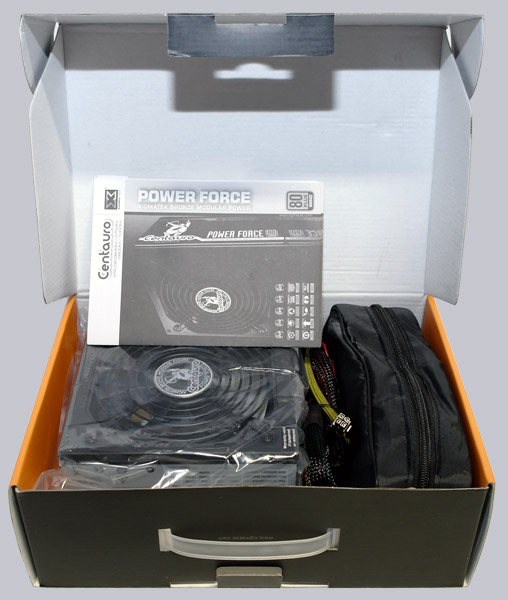

Here is a first look into the Xigmatek PSU box.

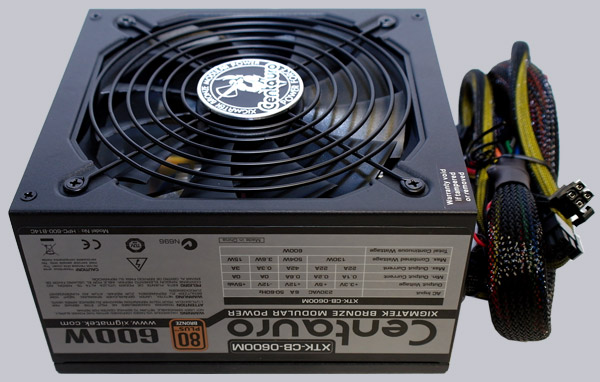

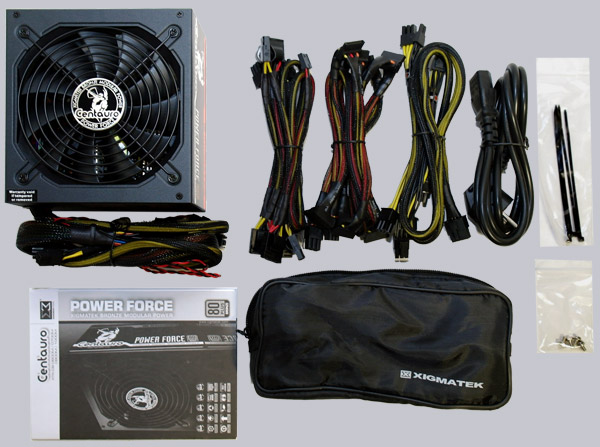

On the following picture one can see the relatively small power supply with its accessories. The ATX cable is approx. 50-52cm long and could be too short for some fullsize tower systems. So one better should measure all lenghts inside of the case, before buying the PSU. In the scope of delivery are the power cable, a bag for unused modular cables, four screws, a few cable straps and a folding sheet which contains a pictured building instruction, warranty (3 years) and the disposal references.

Here you can see a picture with all PSU cables and plugs:

1x 51cm attached ATX / ATX 2.2 cable with one 20+4-pin plug (51cm) 1x 61cm attached 12V CPU cables with 4+4-pin plug (60cm) 2x 54cm attached fan cables with 3-pin fan plug (54cm) 2x 65cm modular PCI-E cables with 2x 6+2-pin plug (50+15cm) 2x 90cm modular cables with four SATA power connectors (45+15+15+15cm) 2x 90cm modular cable with four molex plugs and one floppy connector (45+15+15+15cm) 1x 220V power cable

All connections can be connected well and offers a safe contact.

The technical data of the Xigmatek 600 Watt Bronze power supply unit …
