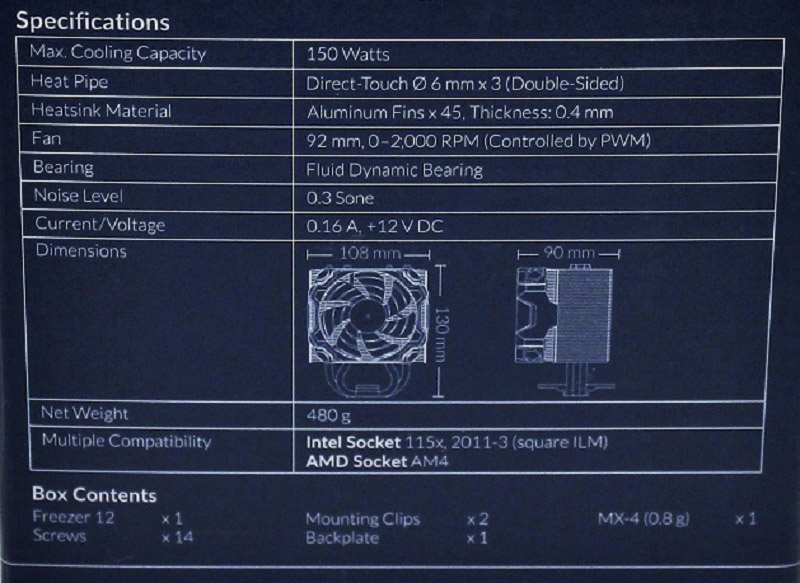

The technical data of the Arctic Freezer 12 …
| Manufacturer | Arctic |
| Designation | Freezer 12 |
| Dimensions radiator | 130 x 108 x 90 mm (HxWxD) |
| Dimensions fan | 92mm |
| Fan speed | 0 – 2000 rpm | Bearing | Hydrodynamic plain bearing |
| Volume | 0.3 sone | Heatpipes | 3x6mm double-sided, direct contact |
| Radiator | 45 aluminum fins, 0.4mm thick |
| Power consumtion | 0.16A / 12V |
| Connection | 4 pin PWM |
| Maximum cooling capacity | 150W |
| Weight | 480g |
| Socket compatibility | Intel 1150, 1151, 1155, 1156, 2011, 2011-3, 2066 (only 80 x 80 mm), AMD AM4 |
Arctic Freezer 12 layout, design and features …
