Arctic Liquid Freezer II 420 Rev. 3 Review

The technical data of the Arctic Liquid Freezer II 420 AIO …

Manufacturer Arctic
Description Liquid Freezer II 420
Product number ACFRE00092A
Fan type Arctic P14 PWM
Fan dimensions 140 x 140 x 27 mm (HxWxD)
Fan speed 200-1700 rpm
Air flow max. 72,8 CFM / 123,76m³/h
Luftdruck 2,4 mmH2O at 1700 rpm
Fan volume 0,3 Sone at 1700 rpm
Fan bearing Liquid slide bearings
Fan starting voltage 3.9 Volt min.
Fan power consumption 0.12 A max.
Fan connection type 4 Pin PWM
Dimensions VRM fan Diameter 40mm
Connection type VRM fan Connected to pump
Dimensions Radiator 458 x 138 x 38 mm (HxWxD)
Material Radiator Aluminium
Pump speed 800-2000 rpm
Connection type pump 4 Pin PWM
power pump + VRM fan 1.0 – 2.7W total
Dimensions radiator block 98 x 78 x 53 mm (HxWxD)
Tube length 450 mm
Socket compatibility Intel 115x / 1200
Intel 2011-3 + 2066 limited
AMD AM4 + AM3+
Compatible RGB Systems no RGB functionality
Warranty 2 years

Very pleasing is the newly added compatibility with the AM3+ socket from AMD. The 1200 socket for the tenth Intel CPU generation is now also officially supported, but this did not require any structural changes to the cooler.

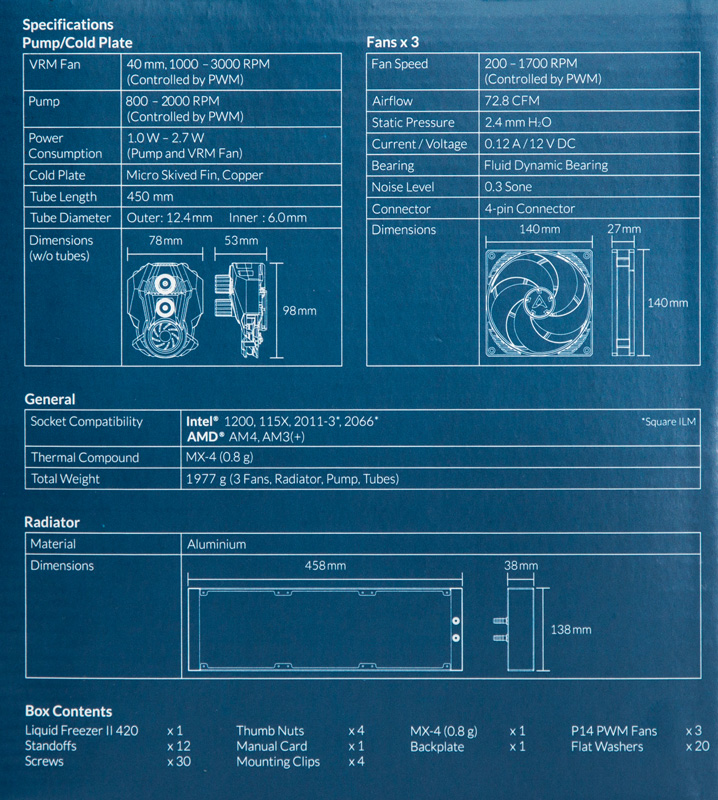

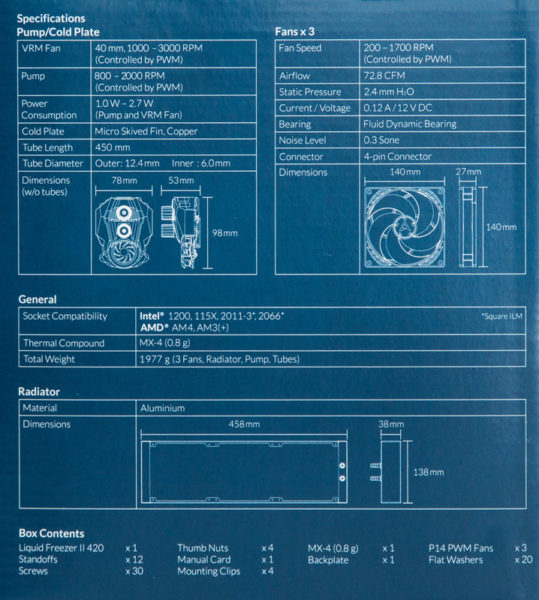

Besides some technical data, a sketch with the most important dimensions of the water cooling system is printed on the packaging.

Next we will take a closer look at the individual components of the Liquid Freezer II 420.

Arctic Liquid Freezer II 420 AIO Wasserkühlung Layout, design and features …
