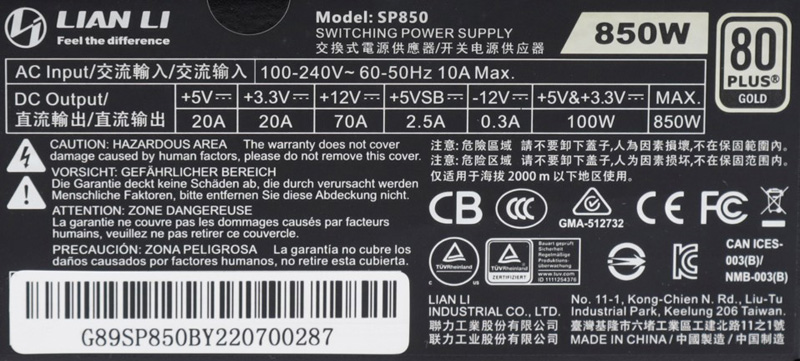

The technical data des Lian Li SP850 PC power supply …
| Manufacturer | Lian Li |
| Description | SP850 |
| Color | available in black and white |
| PFC | Active PFC >0.9 at full load |
| Input voltage | 100-240 VAC |
| Input frequency | 50-60 Hz |
| Dimensions | 100 x 125 x 63.5mm (LxWxH) |
| Weight | 912 gram |
| Fan | 1x 92mm, liquid bearing Zero RPM mode at partial load max. 2800 rpm |
| Protection circuits | OCP OVP OTP OPP SCP UVP |
| Connectors | full modular design 1x mainboard 20+4-pin cable (300 mm, braid) 2x CPU 4+4 pin cable (600 mm, braid) 1x PCIe 6+2 pin cable (400 mm, braid) 1x PCIe 6+2/6+2-pin cable (two connectors, 400 + 120 mm, braiding) 1x PCIe 12-pin high power (400 mm, flat 2-ply) 2x SATA cable (four connectors, 120 + 120 + 120 mm, flat ribbon) 1x Molex cable (four plugs, 120 + 120 + 120 mm, flat ribbon) |
| Efficiency class | 80 Plus Gold |
| Loudness | max. 40.6 dBA |
| Warranty | 5 years |
The SP850 SFX PC power supply is equipped with a 12V rail that can deliver up to 840 watts.
