ASRock Z790 Taichi Motherboard Review


First-class Intel motherboard from ASRock with fantastic basic equipment! A few days ago we already published an unboxing video about it and today we take a detailed look at the ASRock Z790 Taichi motherboard on OCinside.de! The ASRock Z790 Taichi is like the Carrara version an absolute high-end LGA1700 motherboard for Intel Alder Lake and Intel Raptor Lake processors.

Thanks for the support …

Thanks for the support to the manufacturer ASRock.

The ASRock Z790 Taichi and ASRock Z790 Taichi Carrara have currently a price of about 530 Euro (Stand 01/2023).

Here you can buy the ASRock Z790 Taichi motherboard. *Ad

The delivery of the ASRock Z790 Taichi …

The ASRock Z790 Taichi motherboard is delivered in this box with the Taichi logo and gold lettering.

The back of the box shows some new features such as the two new Thunderbolt 4 and USB4 Type-C ports respectively, the USB PD 3.0 port for up to 60 watts of charging power 24+2+1 Power Phase 105A PLC power supply, 2.5 Gb/s LAN, Blazing M.2 PCIe Gen5 x4, M.2 cooler, Steel PCIe Gen5 x16 slots, Polychrome SYNC RGB ports, Killer 802.11AX WiFi 6E with antenna and Bluetooth!

The box is hinged and thus allows a direct view of the chic motherboard.

The packaging contains more boxes, which are divided into two levels. In the upper area lies the well-protected motherboard.

The accessories are located on the level below. Included is a manual, four SATA data cables (angled and straight), four screws for the M.2 sockets, a graphics card holder, a USB slot bracket, WiFi antenna, a Taichi key cap and two Velcro cable ties. The ATX I/O panel is already pre-assembled. Additional USB slot bezels or an ASRock USB 3.2 front panel are optionally available.

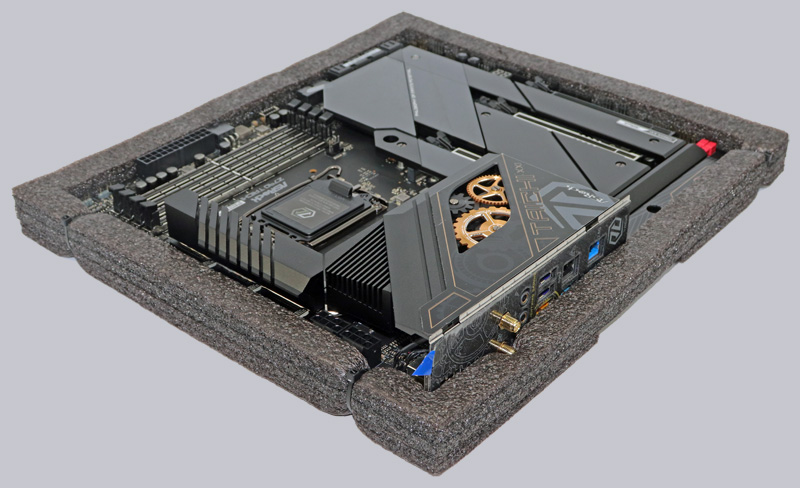

The Z790 Taichi has been encased in foam and covered with an anti-static foil for safe transport.

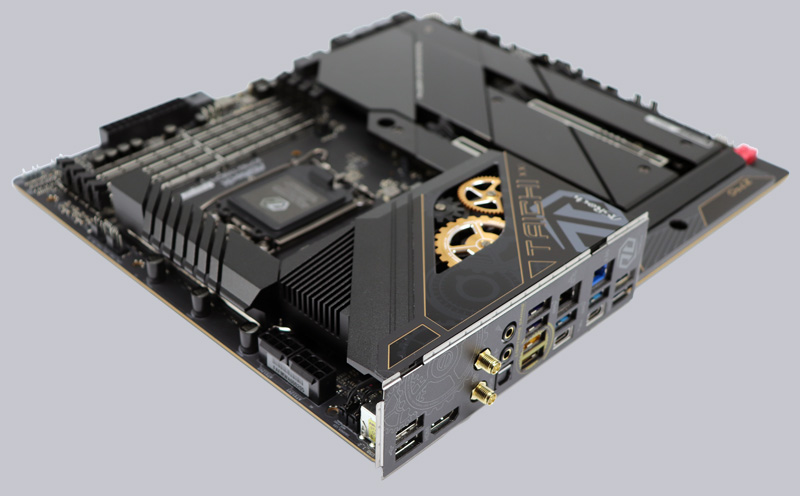

After loosening the cable ties, we can already take a look at the new ASRock Z790 Taichi motherboard.

Here is the complete ASRock Z790 Taichi Unboxing from our OCinside YouTube Channel:
Note: Please allow our cookies first to see this external content!

Let’s first take a look at the technical specifications of the ASRock Z790 Taichi motherboard.

ASRock Z790 Taichi technical specifications …
