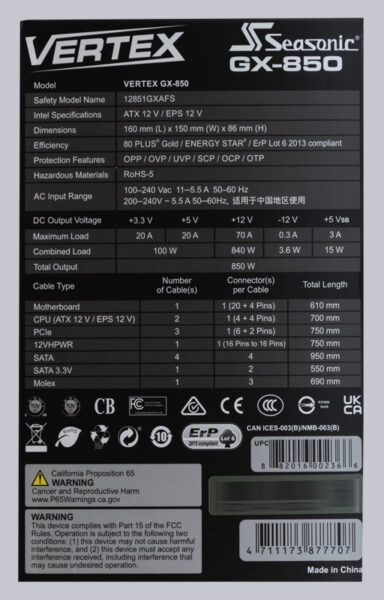

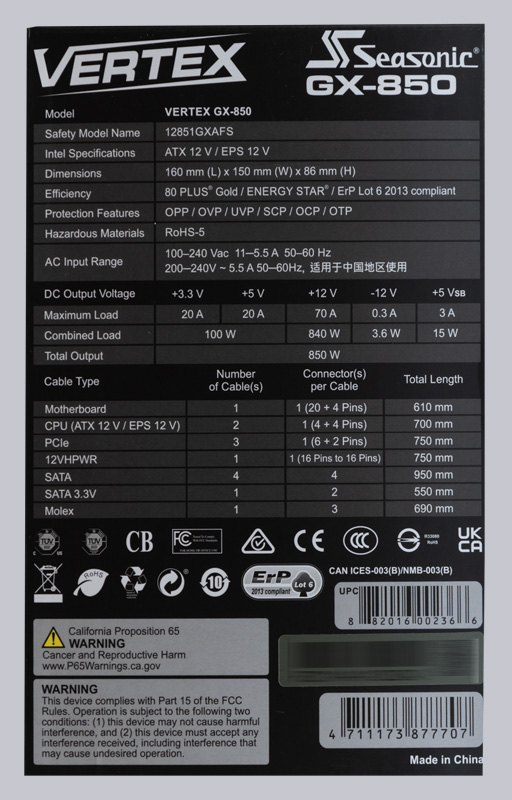

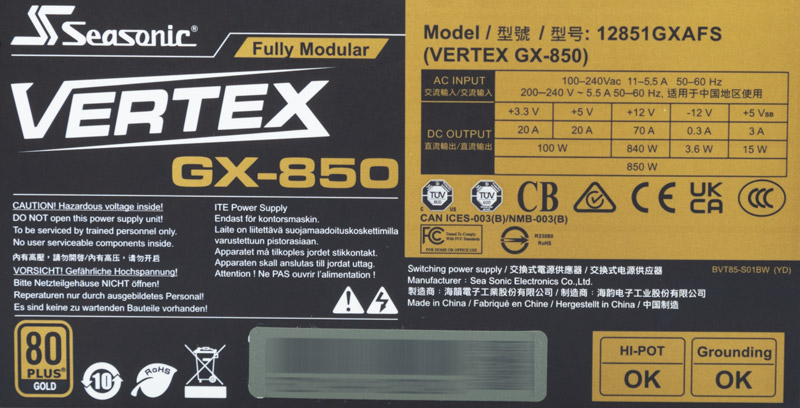

The technical data of the Seasonic Vertex GX-850 ATX Power Supply …
| Manufacturer | Seasonic |
| Description | Vertex GX |
| Product number | 12851GXAFS |
| Colour | black |
| Input voltage | 100-240 VAC |
| Input frequency | 50-60 Hz |
| Power class | 850W |
| Power data | +3.3V: 20A +5V: 20A +3.3V and +5V combined 100W +12V: 70A / 840W -12V: 0.03A / 3.6W +5VSB: 3A / 15W Total power max 850W |
| PFC | 0.984 (115V) 0.947 (230V) |
| Form factor | ATX |
| Dimensions | 160 x 150 x 85mm (LxWxH) |
| Weight | 1822 gram |
| Fan | 1x 135mm, liquid bearing, PWM 0 RPM mode at part load selectable via switch |
| Protection circuits | OPP, OVP, UVP, OCP, OTP, SCP |
| Connectors | full modular design 1x motherboard 20+4-pin cable (16AWG, 18AWG, 610 mm) 2x CPU 4+4 pin cable (16AWG, 700 mm) 3x PCIe 6+2 pin cable (16AWG, 750 mm) 4x SATA cable (18AWG, 950mm, four connectors each) 1x SATA 3.3 cable (18AWG, 550mm, two connectors) 1x Molex cable (18AWG, 690mm, three plugs) 1x PCIe 5.0 12VHPWR (16AWG, 750mm, incl. sense cables) |
| Efficiency class | 80 Plus Gold Cybenetics Platinum Efficiency Level |
| Volume | max. 40.6 dBA Cybenetics Lambda A Noise Level |
| Warranty | 10 Years |
| Conformities | ATX 3.0, EPS 12V, PCIe 5.0 cTUVus, TUV, CB, CCC, BSMI, EAC, CE Energy Star, RoHS, WEEE, ErP Lot 6, REACH, RoHS-5 |
| Miscellaneous | MTBF 100,000h (fan 50,000h) voltage regulation +/-3% for 12V, 5V and 3.3V gold plated contacts on cables for CPU, MB and PCIe connectors |
As is now common with modern PC power supplies, the Vertex GX-850 has a single 12V rail that is rated extremely powerful at 70A / 840W. It also complies with all current national and international regulations and includes all protection circuits against overload and short circuit to ensure the safest possible operation.
Particularly pleasing are the universal voltage input for 100V and 240V networks without a changeover switch and the 10-year warranty.
