After the complicated assembly of the Eclipse IV, the cooler can now show that it can score in the decisive discipline.
Test Setup …
As a test system, the following configuration is used: Intel Core i7 2600K @ 4012 MHz with 1.19 Volt Asus P8P67 Pro Rev 3.1 4x 4 GB DDR3-1600 MSI GeForce 780ti Seasonic Platinum 760 Watt PSU CM Storm Stryker case Windows 7 Ultimate 64 Bit Service Pack 1
Following testing software is used: Prime95 V27.9 Core Temp 1.0 RC6 Asus AiSuite2
Thermal compound:Cooler Master X1 Extreme Fusion 9,5W/mK. *Ad
The idle temperature was measured once at 500 rpm, and additionally at the maximum speed. It can already be seen that the Eclipse IV cooler can come up with a good cooling performance.
X2 Products Eclipse IV test results …

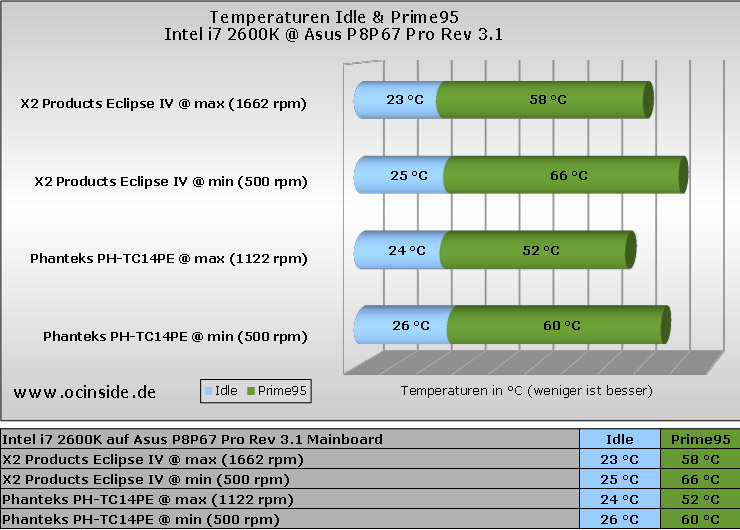

The results of this test, we have shown in the following diagram. Phanteks PH-TC14PE is used as CPU cooler comparison.
Even under full load, the cooler achieved good values. With minimum fan speed the Eclipse IV CPU runs the cpu at moderate 66 °C. And then at maximum fan speed it really shows its power and achieved good 58 °C.
