Mach Xtreme Technology MX-DS Turbo 120GB SATA3 2.5" SSD Review
The introduction ...
Mach Xtreme Technology shows with this MX-DS Turbo 120GB SATA III SSD, what SSDs can reach with the SF-2281 Controller.
The brand-new SandForce SSD is tested with some benchmark tools in AHCI and Legacy IDE mode at SATA3 port and all values are compared to all SSDs tested at ocinside.de so far.
We will see the strengths and the weaknesses of this SSD, which even received the Redaktion ocinside.de Overclocking Dream Award 09/2011 in this review.
Thanks for the support ...
Many thanks to Caseking.de for the support with the Mach Xtreme Technology MX-DS Turbo 120GB 2.5" SSD.
The Mach Xtreme MX-DS Turbo 120GB SATA3 2.5" SSD MXSSD3MDST-120G has at present a price of approx. 200 Euro (09/2011).
The MX DS Turbo SSD 2.5-inch series contains at present the following types:
Here you can buy the Mach Xtreme Technology SSD for a low price.
Mach Xtreme Technology MX-DS Turbo 60GB MXSSD3MDST-60G
Mach Xtreme Technology MX-DS Turbo 120GB MXSSD3MDST-120G
Mach Xtreme Technology MX-DS Turbo 240GB MXSSD3MDST-240G
Mach Xtreme Technology MX-DS Turbo 480GB MXSSD3MDST-480G
The performance of this Mach Xtreme Technology MX-DS Turbo SSD Series with SF2281 Controller doesn't alter depending on the capacities like the previously tested Crucial C300 or Crucial m4.
So the 60GB SSD has already a very high read and write performance.
The supply of the Mach Xtreme Technology MX-DS Turbo 120GB SATA3 SSD ...
Here is the cardboard box of the new MX-DS TURBO SSD from Mach Xtreme Technology:
That is contained ...
Mach Xtreme Technology delivers the S511 2.5" SSD with a 2.5" to 3.5" mounting bracket and screws.
Here is a picture of the Mach Xtreme Technology DS Turbo SSD with its accessories:
The following picture shows the front of the 2.5" Mach Xtreme Technology DS Turbo 120GB SSD:
On the flipside one can see the label with the full part number MXSSD3MDST-120G and on the left side one can see the SATA3 connectors for data and power.
SATA3 connections are identical to conventional SATA2 and SATA3 hard disk connections, so this SATA3 SSD can also operate with slower speed at an SATA2 interface:
Here you can see the SandForce 2281 Controller IC, more detailed SF-2281VB1-SDC and eight of altogether sixteen 25nm Intel 25nm Multi Level Cell NAND components of the SATA3 SSD with each 8GB capacity to reach a total capacity of 128GB or 120GB without overprovisioning:
On the PCB back are the remaining eight Intel 29F64G08ACME2 8GB MLC components:
Contained was also a bay to install the 2.5" SSD in the 3.5" HDD cage of the PC enclosure:
The technical data ...
||Mach Xtreme Technology
||MLC - Multi-Level-Cell
||2.5" (99,8 x 69,63 x 9,3mm)
||Read up to 555 MB/s / Write up to 510 MB/s
||1,6 Watt idle / 2,8 Watt in operation
||2 million hours
||TRIM Support, NCQ Support, SMART Support, GC Support
Here is a Snipping screenshot of the CrystalDiskInfo 3.5.3 SSD and HDD information software:
SSD firmware update ...
Usually we update the firmware of the SSDs before we begin with the tests.
To the point of testing time however no new firmware was found at Mach Xtreme Technology, so that for all tests the original firmware version 2.1 was used.
In the meanwhile Mach Xtreme Technology offers a new firmware version 2.32 for download, but unfortunately we had to return the SSD directly after review, so it was not possible to test it agian with the newer firmware.
Benchmark values and test results ...
Let us continue with the benchmark results.
SATA2 drives are currently tested with an ASRock M3A790GXH/128M motherboard and SATA3 drives are currently tested with an ASRock 890GX Extreme3 motherboard.
At present, Microsoft Windows 7 Ultimate Edition is used as the operating system.
The SSD drive speed was examined and compared with the following benchmark software:
AS SSD benchmark result ...
The SSD benchmark values offers a very good reference point of the maximal possible reading and writing performance, the speed with smaller files and the respective access time.
The MX-DS Turbo 120GB Mach Xtreme Technology SSD achieved in AHCI mode the to date highest sequential read performance.
In IDE mode however in spite of correct SSD alignment it reached like the ADATA S511 and Crucial C400 a much slower performance.
Additionally the TRIM procedure of the SandForce 2281 controller is not as easy comprehensible.
The administration of the Dirty Cells is controlled in the background by the sandforce controller chip.
With other SSDs one can do a direct TRIM by filling and erasing the SSD data, but with the MX-DS Turbo SSD there was no recognizable TRIM after filling and erasing the cells procedure for cleaning the so-called "dirty cells".
In IDE mode the SSD exceeded with approximately 346 MB/s the maximum transfer rate of the Serial ATA 2.0 interface, so that a SATA3 interface is really the best choice for this SSD.
The write performance in IDE mode reached relatively slow 162 MB/s.
But also in IDE mode the overall score reached very good 310 points, because for example the OCZ Agility 120GB SATA2 SSD reached only 138 points, ADATA S511 120GB reached 311 points, the 256GB m4 SSD reached 291 points and a 256GB C300 SSD reached 290 points.
Here is a Snipping screenshot of the AS SSD benchmark results (SATA3 IDE):
In AHCI mode also another result beneath the read performance was much higher than in the IDE mode and that is the important value "4K-64Thrd".
4K means that small 4K blocks are read and/or written and with the 4K 64Thrd this is distributed on 64 Threads at the same time.
Thus the benchmark program simulate for example a typical program start.
Since the weighting of this value is very high in the AS-SSD benchmark tool,the total score in AHCI mode is with 491 points much higher than the previous one in IDE mode.
In AHCI mode the Mach Xtreme Technology MX-DS Turbo 120GB reached a very high read performance of 502,06 MB/s and a write performace of 161,23 MB/s which is almost identical to the legacy IDE result.
Who think now about changing its SATA port in the BIOS from native IDE and/or legacy IDE to AHCI, should change first for example (if possible) only one part of the SATA port, where the drive with the operating system is not installed.
Because if one like to save the new Windows installation, one must install the hard disk controller driver before changing SATA mode from IDE to AHCI - alternatively there are also Registry entries for it.
If you like to upgrade from HDD to SSD, you should not copy the content 1:1 only with a tool like Norton Ghost or Acronis Backup.
It is better to install a fresh Windows7 or adjust at least the SSD Alignment.
We help you with questions to this topic or all other PC related questions at any time 24/7 in our PC Forum.
Here is a Snipping screenshot of the AS SSD benchmark results (SATA3 AHCI):
Here is a Snipping screenshot of the AS SSD iops results to measure the input/output speed (SATA3):
And here is a Snipping screenshot of the AS SSD iops AHCI results to measure the input/output speed, with a drastic rise (SATA3 AHCI):
In order to get an impression of the speed, here is another Snipping screenshot of the AS SSD copy benchmark (SATA3):
Also the AS SSD copy benchmark is much faster in AHCI (SATA3 in AHCI mode):
The comparison of the AS SSD benchmark results is extended with each new HDD/SSD test.
Here we see several SSDs in comparison to the Mach Xtreme Technology MX-DS Turbo 120GB 2.5" SSD in IDE and in AHCI mode, whereby the diagram is updated shortly with new SSDs.
Currently, the Crucial m4 256GB SSD is at the to of all result, which offered the highest sequential write performance.
Directly followed by the Mach Xtreme Technology MX-DS Turbo 120GB SSD and the similarly build ADATA S511 120GB SSD.
Here is a comparison of the AS SSD benchmark values, which are getting updated with soon coming drives:
ATTO Disk benchmark result ...
The ATTO disk benchmark values gives a very good overview about the write and read rate on different file sizes.
Here we see once again a huge difference between legacy IDE and AHCI, especially with this SSD.
Its read and write (red) performace is in legacy IDE mode nearly identically, but in AHCI we see a much higher read performance.
Here is a Snipping screenshot of the ATTO Disk benchmark values (SATA3):
Compared to this result, the read performance in AHCI mode is significantly increased in all transfer sizes.
Here we see a comparison of the conventional native IDE mode and the modern AHCI mode, which offers beside the higher performance also advantages like e.g. the support of NCQ (Native Command Queuing) and Hot-Plug.
This SSD reached in ATTO to date highest read rate and the to date highest write rate in our reviews.
Here is a Snipping screenshot of the ATTO Disk benchmark values (on SATA3 AHCI):
These ATTO disk benchmark values are compared with a small transfer size of 32KB and a large transfer size of 8192KB.
The bar chart already shows a first comparison to the Hitachi Deskstar 7K1000.C 1TB hard disk drive, OCZ Agility 120GB SSD, Crucial 256GB C300 RealSSD and a few other SSDs, where the best 8192K result is reached by the Mach Xtreme Technology MX-DS Turbo with nearly identical values like the S511 120GB SSD.
Here is a comparison of the ATTO disk benchmark values, which are getting updated with soon coming drives:
With CrystalDiskMark one receives a balanced measurement of the performance with different transfer sizes.
Here is a Snipping screenshot of the CrystalDiskMark values (SATA3):
As seen in the previous 4K-64Threads results, especially the read and write 4K QD32 and the sequential read result is much higher when operating in AHCI mode.
Here is a Snipping screenshot of the CrystalDiskMark values (SATA3 AHCI):
The following diagram shows the CrystalDiskMark results once again compared with other SSDs and platter drives, which are extended step by step.
In the CrystalDiskMark comparison one can see significant differences between the to-date tested Solid State Drives and Hard Disk Drives, where the tested Mach Xtreme Technology MX-DS Turbo 120GB SSD has currently the best read result in AHCI.
Here is a comparison of the CrystalDiskMark values, which are getting updated with soon coming drives:
HD Tach result

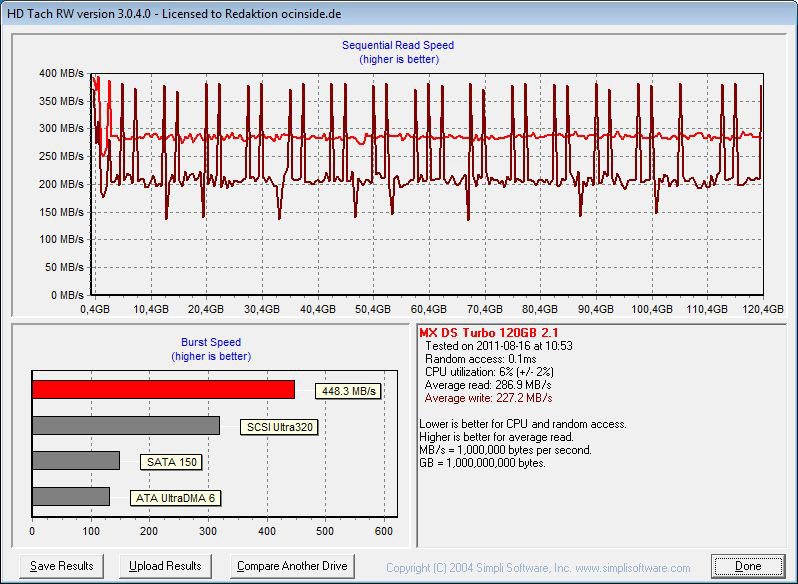

Here is a Snipping screenhot of the HD Tach benchmark values:
The comparison of the HD Tach benchmark results shows the faster reading speed, writing speed and the lower average access time of the Solid State Drive compared to hard disk drives with their much higher access time.
Here is an impressive comparison of the HD Tach benchmark values, which are getting updated with soon coming drives:
SiSoftware Sandra benchmark result
Of course, SiSoftware Sandra benchmark should not be missing in this test series.
SiSoftware offers with their SiSoft Sandra program a very comprehensive tool, which contains a lot of tools to get very reliable test results of all hardware components.
The average access time of the Mach Xtreme Technology MX-DS Turbo 120GB SSD was in SiSoftware Sandra with 50us (equal to 0.05ms) low.
The drive index was in IDE mode 338,76 MB/s and in AHCI mode very high 495,43 MB/s.
Here is a Snipping screenshot of the SiSoftware Sandra benchmark values (SATA3):
Here is a Snipping screenshot of the SiSoftware Sandra benchmark values in AHCI mode (SATA3 AHCI):
Here is a comparison of the SiSoftware Sandra benchmark values, which are getting updated with soon coming drives:
Result and general impression ...
The Mach Xtreme Technology MX-DS Turbo 2.5" 120GB SATA3 SSD MXSSD3MDST-120G achieved a very high read rate on SATA3 port in AHCI mode and in ATTO benchmark the to-date highest write performance.
The Mach Xtreme Technology MXSSD3MDST-120G 120GB MLC Solid State Drive with SandForce Controller and 25nm Intel NAND was tested both in more current AHCI mode, and in legacy IDE mode, whereby the AHCI mode showed clear advantages.
All read and write performance values were nearly identical to the ADATA S511 SSD with the same controller IC and 25nm Intel MLC memory as well.
Most write performance values were below the read performance, except the ATTO benchmark values, where the SSD reached in our tests the to-date highest transfer rates.
In AHCI mode on the SATA3 Controller we measured much higher 4k-64Thrd and sequential read performance than in legacy IDE with this Mach Xtreme Technology MX-DS Turbo 2.5" 120GB SATA3 SSD.
So one should change the SATA controller mode in the BIOS to AHCI before installing the operating system.
The Microsoft Windows 7 Ultimate boot procedure from start screen to login screen only 8 seconds and the Windows 7 performance index reached 7.9 from 7.9 possible points !
All in all the Mach Xtreme Technology MX-DS Turbo 120GB SSD offers an extreme high performance in AHCI mode at a very good cost-performance ratio and received the Redaktion ocinside.de Overclocking Dream Award 09/2011 for this great result.
