AMD Ryzen 5 7600X Review

The technical data …

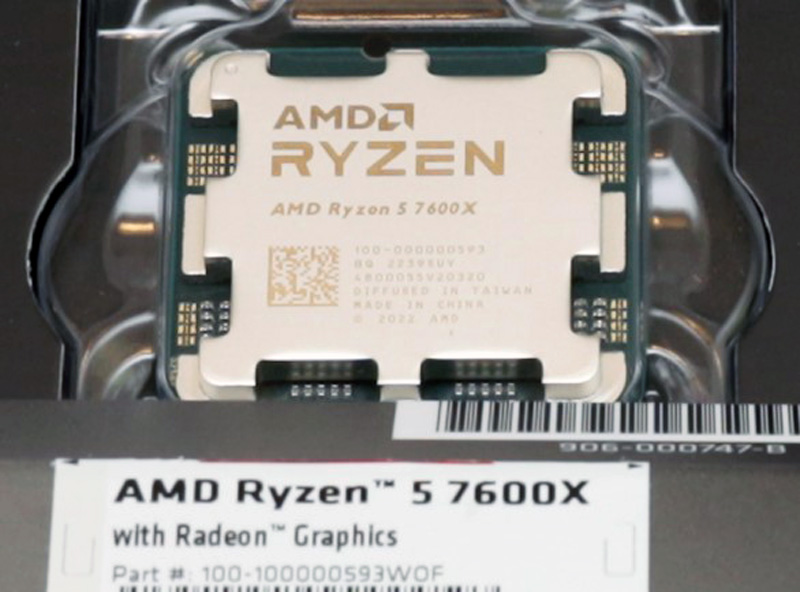

Here is an overview of the technical data of the Ryzen 5 7600X CPU:

Manufacturer AMD
Description Ryzen 5 7600X
Model number 100-100000593WOF
Codename Raphael
Architecture Zen 4
Socket AM5
Construction 1 Compute DIE @5nm, 1 I/O DIE incl. graphics unit @6nm
Number of cores 6
Number of threads 12
Base clock rate 4.7GHz
Max. Power clock rate 5.3GHz
Total L1 cache 384KB
Total L2 cache 6MB
Total L3 cache 32MB
max temp (Tjmax) 95°C
Multiplier open
PCI Express Version PCIe 5.0
Standard power consumption / TDP 105W
Memory type DDR5
Max. Memory clock frequency 5200MHz
max. RAM capacity 128GB
Memory channels 2
Platform Desktop
Command sets AES, AMD-V, AVX, AVX2, AVX512,
SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64
Date of publication September 27, 2022
Special features Only available without cooler now.
AM4 cooler fit if the original AMD backplate is retained.

These are the technical data of the integrated graphics unit, of the Ryzen 5 7600X CPU:

Description AMD Radeon Graphics
Architektur AMD RDNA 2
max. number of displays 4
max. resolution 4K @60Hz
Interfacen HDMI 2.1 @48Gb/s, Display Port 2.0 @UHBR10
Base clock freq 400MHz
max. clock freq. 2200MHz
Memory 512MB shared RAM
API DX 12.2, OpenGL 4.6
Video Encoder H.264, H.265
Video Decoder AV1, VP9, H.265, H.264
