Arctic Liquid Freezer II 360 Rev. 2 Review

The technical data of the Arctic Liquid Freezer II 360 AIO …

Manufacturer Arctic
Description Liquid Freezer II 360
Product number ACFRE00068A
Fan type 3x Arctic P12 PWM
Fan dimensions 120 x 120 x 25 mm (HxWxD)
Fan speed 200-1800 rpm
Air flow max. 56.3 CFM / 95.65m³/h
Air pressure 2.2 mmH2O at 1800 rpm
Fan volume 0.3 Sone at 1800 rpm
Fan bearing Liquid slide bearing
Starting voltage fan 3.9 Volt min.
Fan power consumption 0.08 A max.
Fan connection type 4 Pin PWM
Dimensions VRM fan diameter 40mm
Connection type VRM fan connected to pump
Radiator dimensions 398 x 120 x 38 mm (HxWxD)
Material Radiator Aluminium
Pump speed 800-2000 rpm
Pump connection type 4 Pin PWM
Pump current consumption + VRM Fan 0.49 A total max.
Radiator block dimensions 98 x 78 x 53 mm (HxWxD)
Tube length 450 mm
Socket compatibility Intel 115x
Intel 2011-3 + 2066 limited
compatible RGB systems no RGB functionality
Warranty 2 years

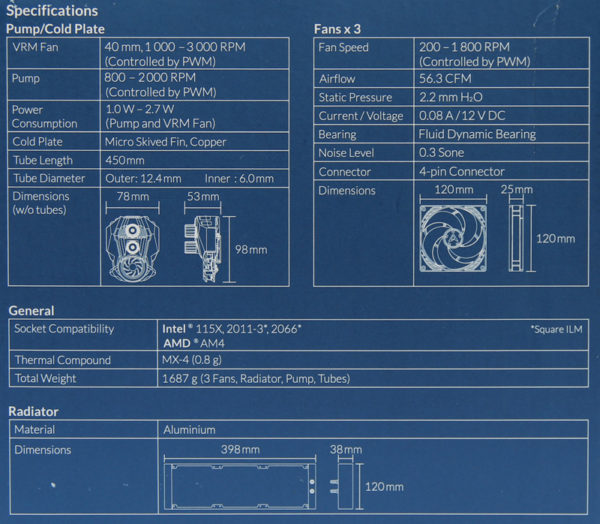

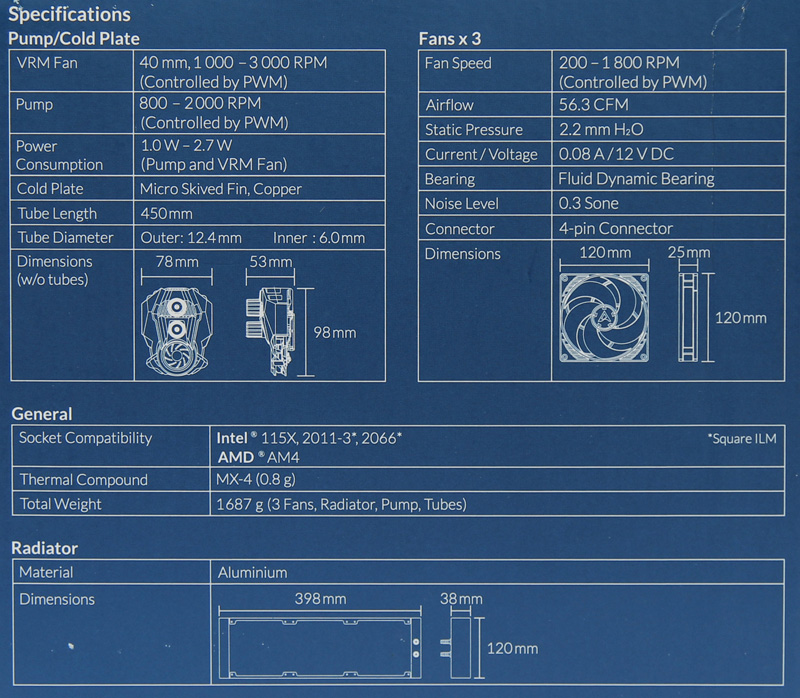

Besides some technical data, a sketch with the most important dimensions of the water cooling system is printed on the packaging.

In the next section, we reveal what Arctic has changed in the new product revision.

Liquid Freezer II 360 AIO Layout, design and features …
