ASRock G10 Gaming Router Review

The technical data …

Manufacturer ASRock
Description G10 Gaming Router AC2600
Dimensions 266.5 mm x 184 mm x 82 mm (HxWxD)
Weight 620g
Color Black
Connections 1x RJ45 10/100/1000 WAN Port
DHCP, Static IP, PPPoE, PPTP, L2TP
4x RJ45 10/100/1000 LAN Ports
2x USB 3.0 Ports for USB Storage / Printer Server
Buttons Power on / off
2.4 G WLAN WPS
5G WLAN WPS
Reset
Wireless Beamforming with eight internal WLAN High Performance Antennas
Guest Wireless Networks (Up to 6 additional)
802.11a, 802.11b, 802.11g, 802.11n, 802.11ac
Dual-Band, 2.4 GHz 800 Mbps, 5 GHz 1733 Mbps
WDS Modi Access Point, Repeater and Router
Security 64, 128 Bit WEP
WPA, WPA2
SPI Firewall, NAT
Miscellaneous Easy Setup
Memory 256 MB Flash, 512 MB DRAM
IPv4, IPv6 Support
Parental Control
Self-healing
Gaming Boost
MU-MIMO
IOT support – IR learning & remote control
ASRock Router APP
H2R (HDMI 2 in 1 Router)
Power Source Input: 100-240V~ 50/60Hz 0.9A max, Output: 12Vdc / 3A
Operating temperature 0°C bis 40°C (32F bis 104F)
Operating humidity 90% maximum relative humidity, noncondensing

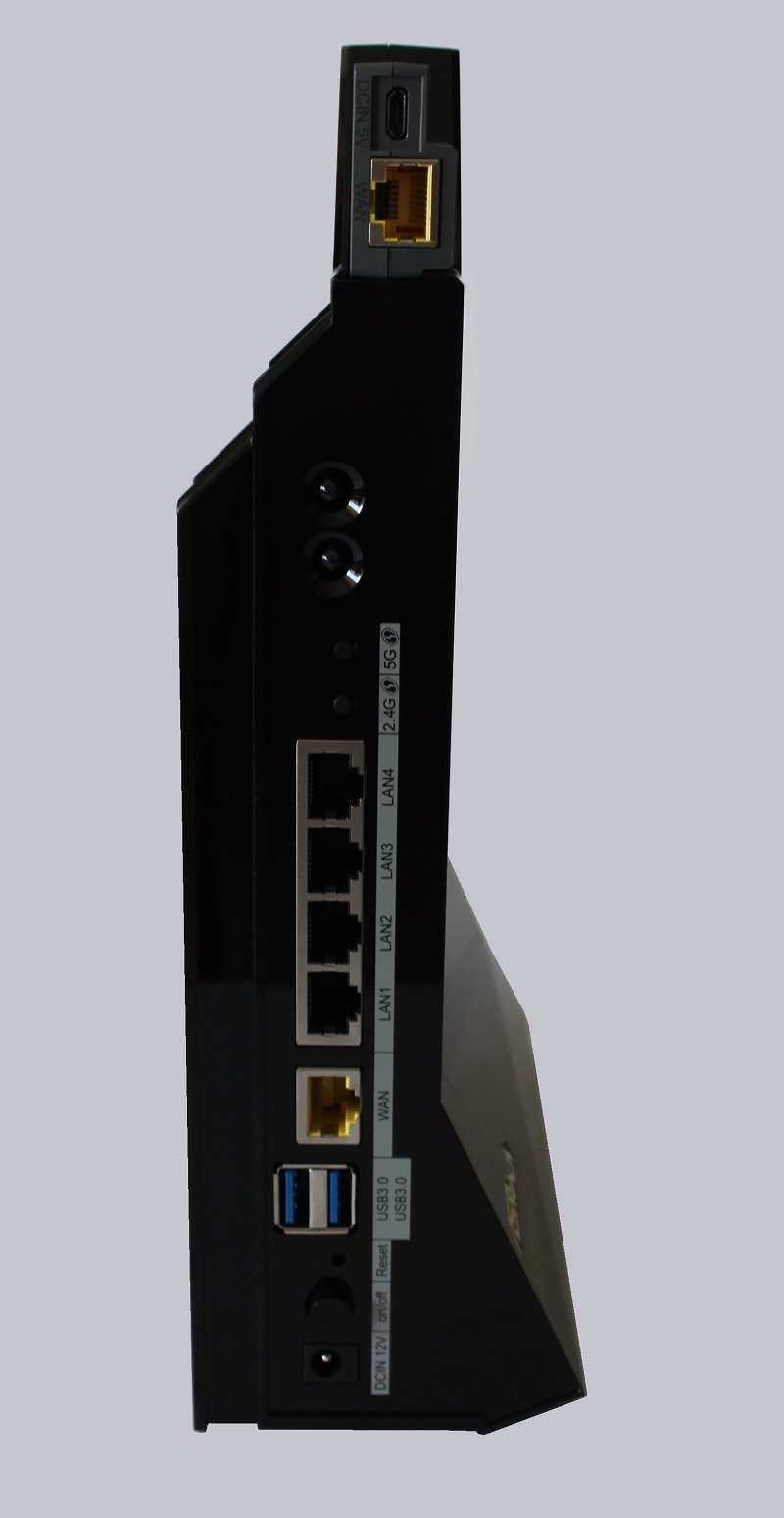

asrock_g10_gaming_router_7

ASRock G10 gaming router layout, design and features …
