The technical data of the Cooler Master MasterLiquid ML240P Mirage …
| Manufacturer | Cooler Master |
| Description | MasterLiquid ML240P Mirage |
| Product number | MLY-D24M-A20PA-R1 |
| Fan dimensions | 120 x 120 x 26 mm (HxWxD) |
| Fan speed | 650-2000 U/Min |
| Air flow | max. 59 CFM |
| Air pressure | 2.33 mmH2O |
| Fan volume | 7 – 26 dBA |
| MTTF Fan | 160 000 h |
| Fan power consumption | 0.12 A |
| Connection type Fan | 4 Pin PWM + 3 Pin aRGB |
| Dimensions radiator | 277 x 120 x 27 mm (HxWxD) |
| Material Radiator | Aluminium |
| Pump volume | max. 20 dBA |
| MTTF Pump | 160 000 h |
| Pump connection | 4 Pin PWM + 3 Pin aRGB |
| Pump power consumption | 0.33 A |
| Dimensions radiator block | 85 x 80 x 43.2 mm (HxBxT) |
| Tube length | 450 mm |
| Socket compatibility | Intel 775, 1150, 1151, 1155, 1156, 1366, 2011, 2011-3, 2066 AMD FM1, FM2, FM2+, AM2, AM2+, AM3, AM3+, AM4, TR4 |
| Compatible RGB-Systems | ASUS Aura Sync, ASRock Polychrome Sync, Gigabyte RGB Fusion, MSI Mystic Light Sync |
| Warranty | 5 years |

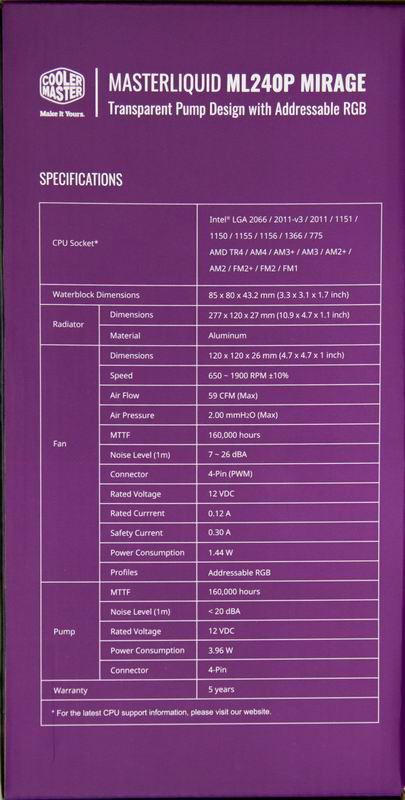

The information on air pressure and maximum fan speed was not completely correct on our packaging. The correct values can be found on the Cooler Master website.
Cooler Master MasterLiquid ML240P Mirage Layout, design and features …
