Enermax T.B.RGB AD Review

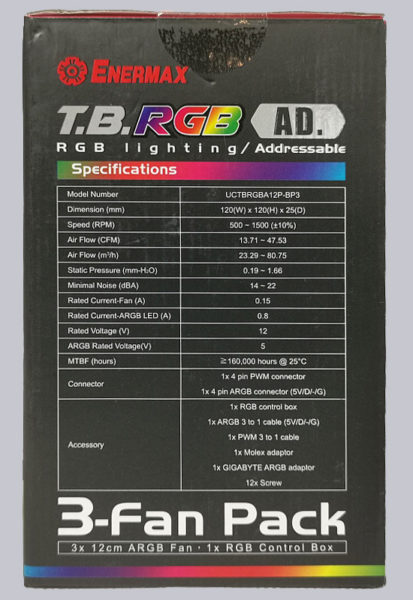

The technical data …

Manufacturer Enermax
Description T.B.RGB AD
Manufacturercode UCTBRGBA12P-BP3
Fan dimensions 120 x 120 x 25 mm
Fan bearing Twister Bearing
Nominal voltage 12V
Fan power consumption 0,15A
Nominal voltage LED 5V
Rated current LED 0,8A
Fan speed 500 – 1500 rpm+/- 10%
MTBF 160.000 Std
Connectors 4 Pin PWM (fan) + 4 Pin (ARGB)
Air flow (CFM) 13,7 – 47,53>/td>
Air flow (m²/h) 23,29 – 80,75
Static pressure (mm-H²O 0,19 – 1,66
Minimal noise (dBA) 14 – 22
RGB compatibility Asus Aura, ASRock RGB LED, MSI Mystic Light, Gigabyte RGB Fusion (only 4 Pin), Enermax RGB Controller

Enermax T.B.RGB AD 3-Fan Pack with RGB Control Box Layout, design and features …
