Fractal Design North Review

The technical data of the Fractal North case …

Manufacturer Fractal Design
Description North
Model no. North Charcoal Black Mesh FD-C-NOR1C-01
North Charcoal Black Glas FD-C-NOR1C-02
North Chalk White Mesh FD-C-NOR1C-03
North Chalk White Glas FD-C-NOR1C-04
EAN / UPC North Charcoal Black Mesh – 7340172704706 / 843276104702
North Charcoal Black Glas – 7340172704713 / 843276104719
North Chalk White Mesh – 7340172704720 / 843276104726
North Chalk White Glas – 7340172704737 / 843276104733
Dimensions 447 x 215 x 469 mm (LxWxH)
incl. feet
Weight 7.6kg – mesh
7.7kg – glass
Motherboard compatibility M-ITX, M-ATX, ATX
Number of expansion card slots 7
Number of 5.25″ drives not possible
Number of 3.5″ drives 2
+1 with optionally available holder
Number of 2.5″ drives 4
+1 with optionally available holder
Casel fan support front 2x 140mm included
or 3x 120mm
Casel fan support roof 2x 120/140mm
Casel fan support rear 1x 120mm
Casel fan support lateral 2x 120/140mm – mesh variant only
Radiator Support Front 240mm, 280mm, 360mm
Radiator Support Roof 240mm
Radiator Support rear 120mm
CPU cooler support max. 170mm high
max. 145mm high with side fans
Graphics cardn support max. 355mm long,
less with front radiator installed
PSU Support max. 255mm long,
167mm space with 2 HHD trays installed
Materials Steel, plastic, glass (for glass side panel)

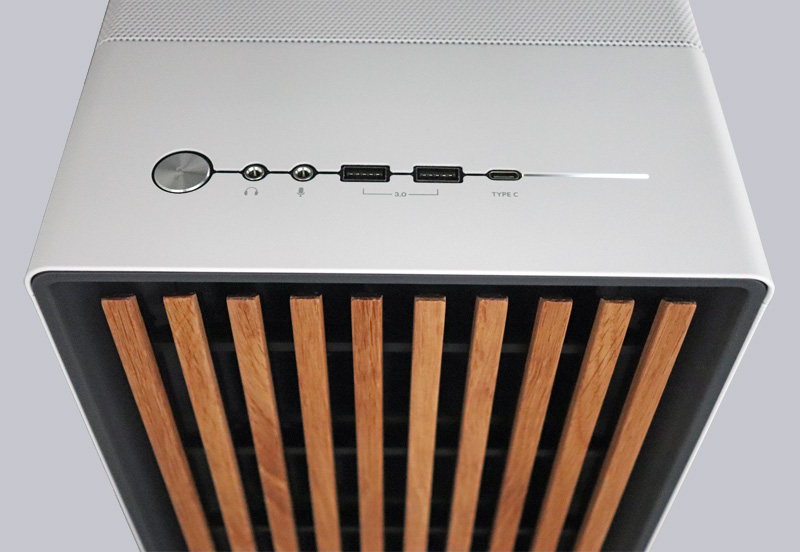

Connection 1x 3.5mm jack for headphones
1x 3.5mm jack for microphone
1x USB 3.1 Gen2 Type-C (10Gb/s)
2x USB 3.1 Gen1 Type-A (5Gb/s)
Buttons 1x power
no reset
Other Dust filter on the front and for PSU fan
Screws largely captive
1 additional HDD tray optionally expandable
Cable management
no RGB
no HDD LED
power LED

Fractal Design North Layout, design and features exterior …
