ASRock AB350 Gaming K4 AMD AM4 Motherboard Review

Quickly to the right hardware equipment …

Layout, Design and Features
ASRock AB350 Gaming K4 Equipment and other features
ASRock AB350 Gaming K4 Expansion cards
ASRock AB350 Gaming K4 Memory
ASRock AB350 Gaming K4 Hard disk drive connectors
ASRock AB350 Gaming K4 USB and Firewire
ASRock AB350 Gaming K4 Network
ASRock AB350 Gaming K4 Sound
ASRock AB350 Gaming K4 ATX back panel connectors
ASRock AB350 Gaming K4 PC System

Layout, Design and Features …

Here you see the gaming cardboard box of the ASRock Fatal1ty AB350 Gaming K4 Socket AM4 motherboard.
asrock_ab350_gaming_k4_1

The back of the package shows some features like PCIe Steel Slot, ASRock RGB LED, Dual M.2, USB Type-C and much more.
asrock_ab350_gaming_k4_2

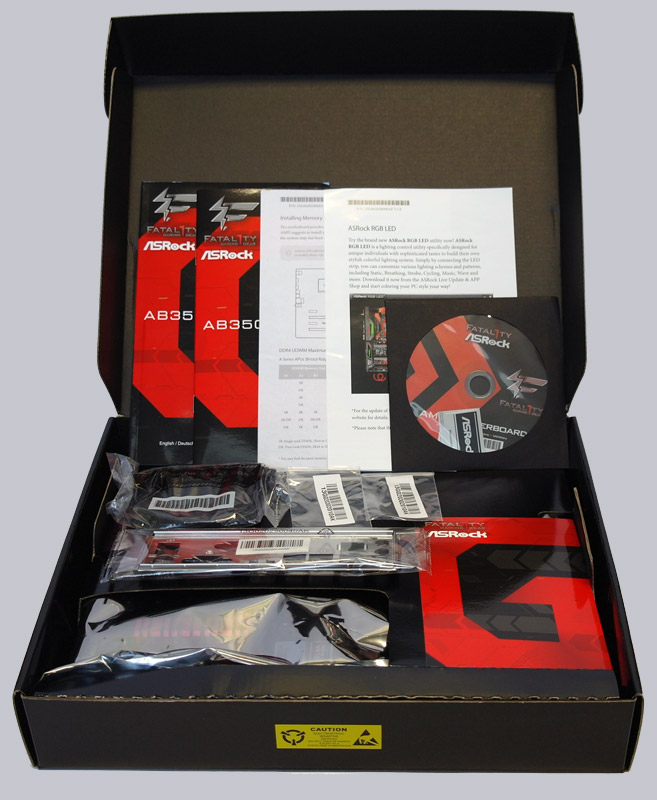

After opening the box, we take a first look at the contents.
asrock_ab350_gaming_k4_3

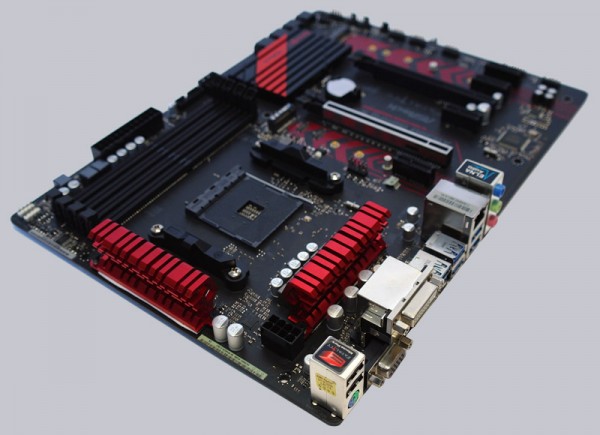

The ASRock Fatal1ty AB350 Gaming K4 makes a good impression, but of course it cannot compete with the high end boards from ASRock. It has solid caps, 6+3 Power Phase Design, Digi power, 7.1 HD Creative SoundBlaster Cinema 3 over ALC892 supports AMD Socket AM4 AMD Bristol Ridge A-Series APUs as well as AMD Summit Ridge Ryzen CPUs.
asrock_ab350_gaming_k4_4

The ASRock Fatal1ty AB350 Gaming K4 offers one Ultra M.2 slot for PCIe Gen3 x4 modules with up to 32 GB/s.
and one M.2 Slot for 2230/2242/2260/2280/22110 SATA3 6.0 Gb/s modules.
asrock_ab350_gaming_k4_5

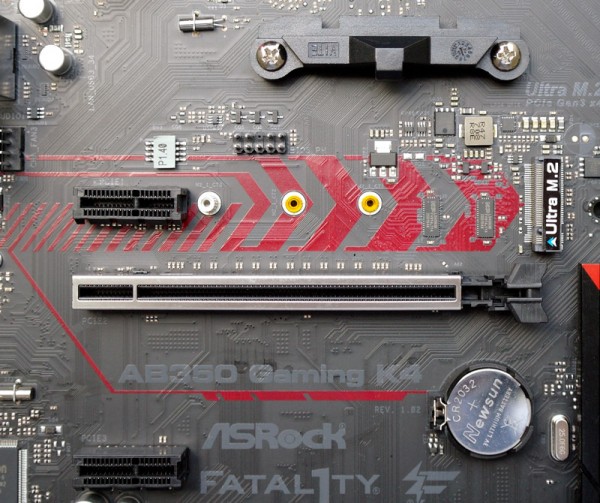

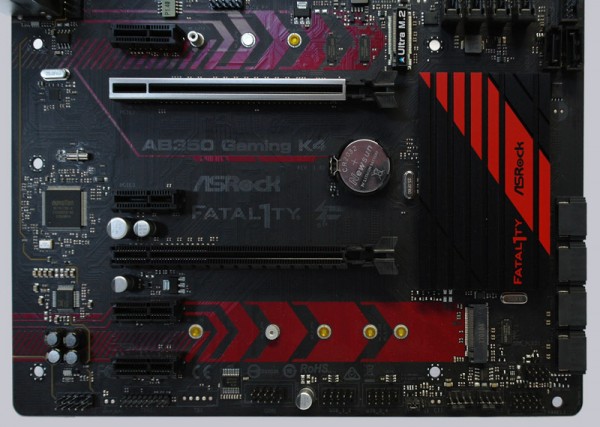

On the picture you can see the new PCIe Steel slots and the Ultra M.2 slot, where you can install 2230/2242/2260/2280 M.2 modules.
asrock_ab350_gaming_k4_6

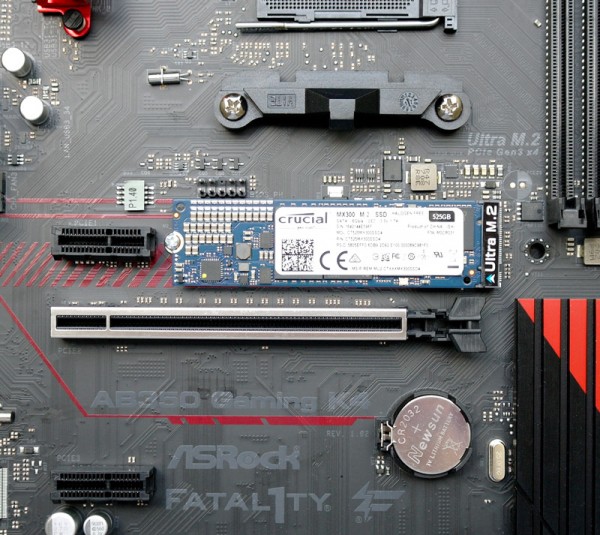

We have tested the AB350 Gaming K4 with a Crucial MX300 M.2 SSD.
asrock_ab350_gaming_k4_7

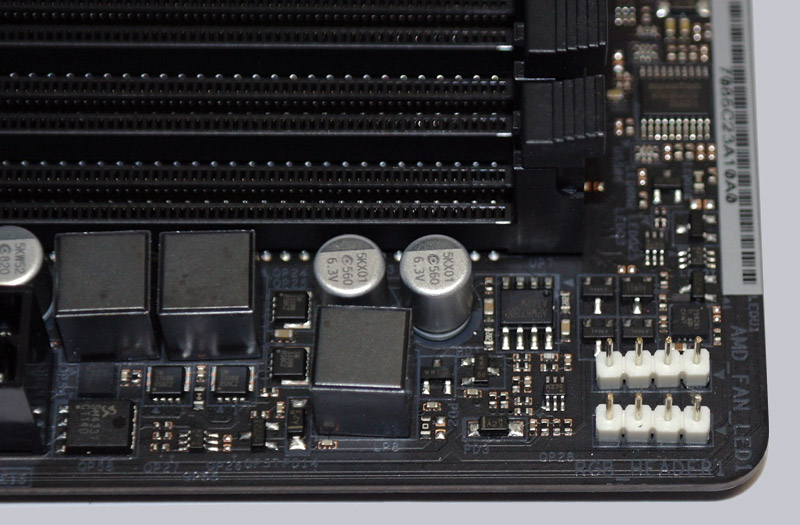

These white 4-pin 12V RGB headers are new as well. Here, you can connect conventional RGB stripes in order to lighting the chassis.
asrock_ab350_gaming_k4_8

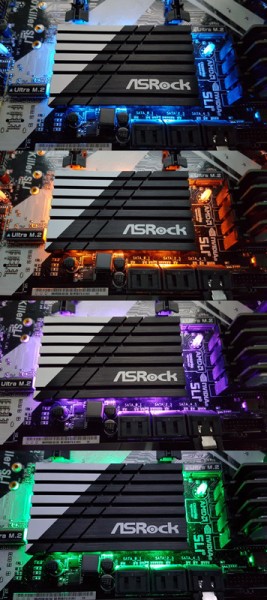

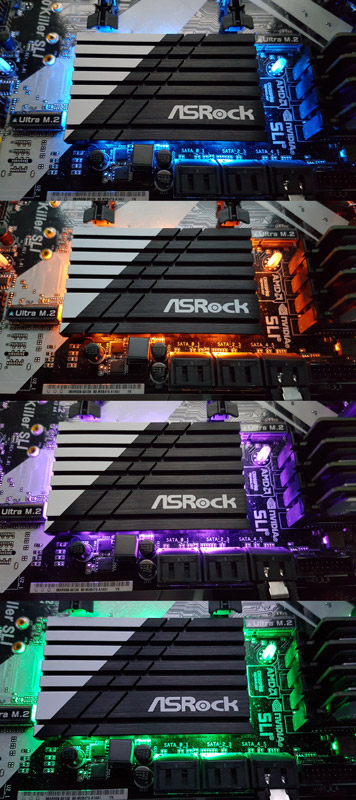

ASRock has also RGB LEDs integrated under the chipset heatsink, which can be controlled as desired. The following image shows a few freely-selected colors on the previously tested ASRock Z270 Killer SLI motherboard:
asrock_ab350_gaming_k4_9

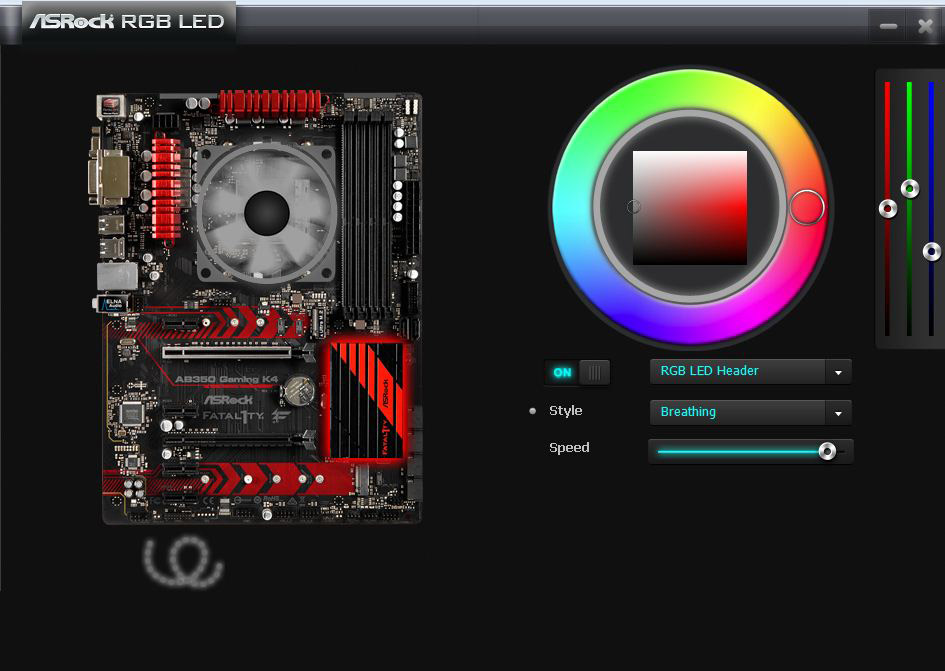

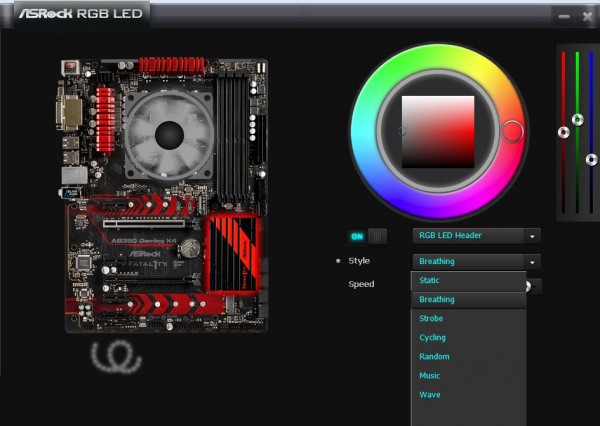

The RGB LED header and the integrated RGB LEDs are controlled by the supplied ASRock RGB LED software. Currently there’s no RGB setting in the UEFI like known from Z270 Killer SLI except deactivation. The ASRock RGB LED menu offers a lot of variations like e.g. different colors.
asrock_ab350_gaming_k4_31

You can select, if you like to control the RGB header separately or together with the RGB lighting under the chipset cooler.
asrock_ab350_gaming_k4_32

And you can adjust in the ASRock RGB LED menu, if the LEDs should light continuously, breathe, random or even light up to the music. The user has numerous ways how and how fast light up the LED stripes or the chipset cooler LEDs and can of course also completely disable it. Certainly as already mentioned in the previous ASRock Z270 Killer review, it’s no “must have” feature, but definitely “nice to have”!
asrock_ab350_gaming_k4_33

Here you can see the internal USB3.0 header and the 24-pin ATX power connector as well as a few of the solid caps capacitors and the RGB LED connectors.
asrock_ab350_gaming_k4_10

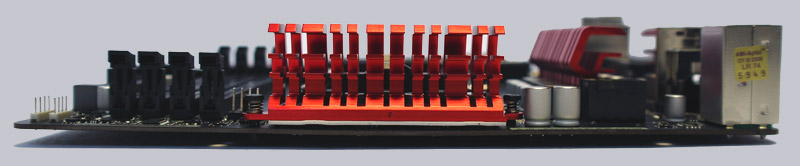

Here you can see a motherboard side view with the relatively small heat sinks made of aluminium alloy, which are carefully installed on the MOSFETs and VRs.
asrock_ab350_gaming_k4_11

Equipment and other features …

The ASRock Fatal1ty AB350 Gaming K4 motherboard came with a manual, software setup guide, DVD, two SATA data cables, two screws for the M.2 sockets and an ATX I/O shield. USB Slot brackets and the ASRock 3.5-inch USB 3.0 front panel are optional available.

The ASRock Fatal1ty AB350 Gaming K4 offers numerous features like for example the ASRock F-Stream Tool, ASRock Instant Flash, ASRock Internet Flash, ASRock Easy RAID Installer, ASRock Easy Driver Installer, 6+3 Power Phase Design, Digi Power, ASRock RGB LED and ASRock FAN-Tastic Tuning.

Expansion cards …

The AMD B350 chipset supports altogether up to 6x PCIe lanes. This board offers two PCI Express 3.0 x16 slots for AMD CrossFireX or nVidia SLI, whereby either one graphics card with x16 bandwidth and another graphics cards with x4 lanes bandwidth can be installed. In addition to the PCI Express 3.0 slots, there are four PCIe 3.0 x1 slots.

Memory …

The ASRock Fatal1ty AB350 Gaming K4 can be equipped with up to four DDR4 modules and is expandable depending upon operating system used (see list) up to maximally 64 GB memory.

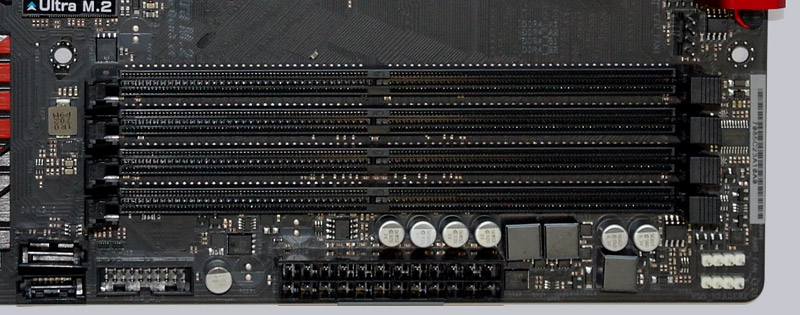

Here you can see a picture of the four DDR4 memory slots with dual channel support, you should install them first in the slots DDR4_A2 and B2:
asrock_ab350_gaming_k4_23

The Intel AMD AM4 motherboard supports DDR4 memory modules and can be optimized in the BIOS for DDR4-2667 Dual Channel modules with AMD Ryzen processor. UEFI offers the selection for DDR4-1866 up to DDR4-3200.

Thanks to XMP support (Extreme Memory Profiles), XMP memory modules are set correctly with one mouse click in the UEFI and of course there are far more memory adjustments and more OC-options, but more on that later. Before buying the RAM, you should check the officially supported RAM modules at the ASRock memory support page, this is not only for AMD Ryzen systems very important.

Hard disk drive connectors …

The ASRock Fatal1ty AB350 Gaming K4 offers four angled SATA3 ports and two SATA3 ports over the ASMedia ASM1061 chip.

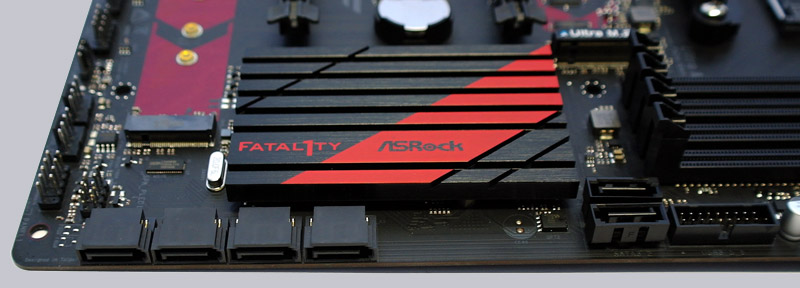

Here you can see the SATA3 ports, whereby depending on the M.2 modules used, the SATA_3_3 is disabled:
asrock_ab350_gaming_k4_24

The SATA 3 ports are supporting RAID 0, RAID 1, RAID 10, NCQ, AHCI and the Hot Plug function in AHCI mode (AHCI stands for Advanced Host Controller Interface and should be selected for SSDs). Thanks to the UEFI BIOS also drives with more than 2 TB for the installation of Windows 10, Windows 8.1 or Windows 7 x64 can be installed. Installing the drivers was absolutely no problem with Windows 10, so the Windows 10 installation was done very quickly. But also for Windows 7 AMD offers their All-in-One driver packet.

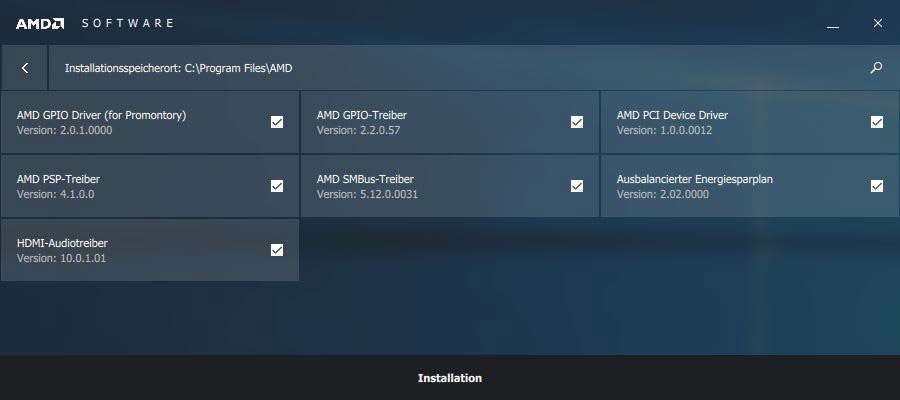

At review date we got a fresh AMD chipset driver 17.10 (amd-chipset-drivers-software-17.10rcp22-apr17) with optimized Ryzen Power Plan.
asrock_ab350_gaming_k4_36

Drivers for Windows 10, Windows 8 and Windows 7 32-Bit and 64-Bit can be installed over the Easy Driver Installer or Easy RAID Installer button in the UEFI, are provided on the DVD, and can be downloaded at the ASRock support page. Windows 10 is currently the preferred operating system.

USB and FireWire …

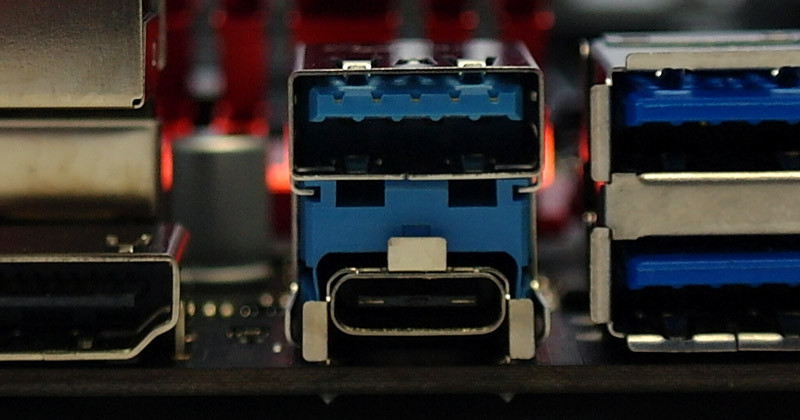

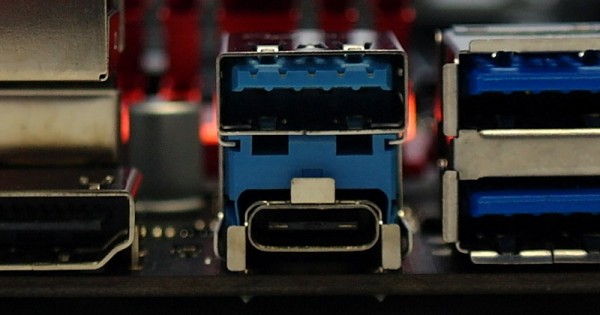

The ASRock Fatal1ty AB350 Gaming K4 has six USB 3.0 ports at the ATX panel. On the picture you see 1x USB 3.0 Type-A (top) and 1x USB 3.0 Type-C (bottom, can be inserted in both directions).
asrock_ab350_gaming_k4_25

Furthermore this Fatal1ty Killer motherboard offers a special USB 2.0 Fatal1ty mouse port, which you can configure by the supplied F-stream software, to set the mouse sample rate from 125 Hz to 1000 Hz.

Internally there are two USB 2.0 connectors for up to four optional USB 2.0 ports, as well as one USB 3.0 connector for up to two optional USB 3.0 ports. The 20-pin connector can be connected either to an optional USB3.0 front panel or to an enclosure with USB3.0 support.

Network …

The ASRock Fatal1ty AB350 Gaming K4 motherboard is equipped with a Realtek RTL8111GR offering the 10/100/1000 network connectors on the ATX panel. The LAN connections are WoL capable, offers LAN cable detection, supports the 802.3az energy efficient Ethernet standard and supports Intel Remote Wake Technology, ASRock Full Spike Protection, PXE and more.

Sound …

The ASRock Fatal1ty AB350 Gaming K4 motherboard is equipped with the ALC892 audio codec with content protection, premium Blu-Ray audio support and Creative SoundBlaster Cinema3, which supports 7.1 surround sound at the internal front panel audio connector and has analog output over 3x 3.5mm connectors on the ATX panel. But there is no optical SPDIF connector available.

ATX back panel connectors …

From left to right, you can see the USB 2.0 Fatal1ty Mouse Port and 1x USB 2.0 Port and 1x PS/2 connector for PS/2 keyboard or PS/2 mouse, DVI-D and D-Sub and HDMI, 1x USB 3.0 Type-A Port and 1x USB 3.0 Type-C Port, 2x USB 3.0 Type-A Port, RJ45 Gigabit LAN and 2x USB 3.0 Type-A Port, 3x 3.5mm jacks for the sound.
asrock_ab350_gaming_k4_26

Test System …

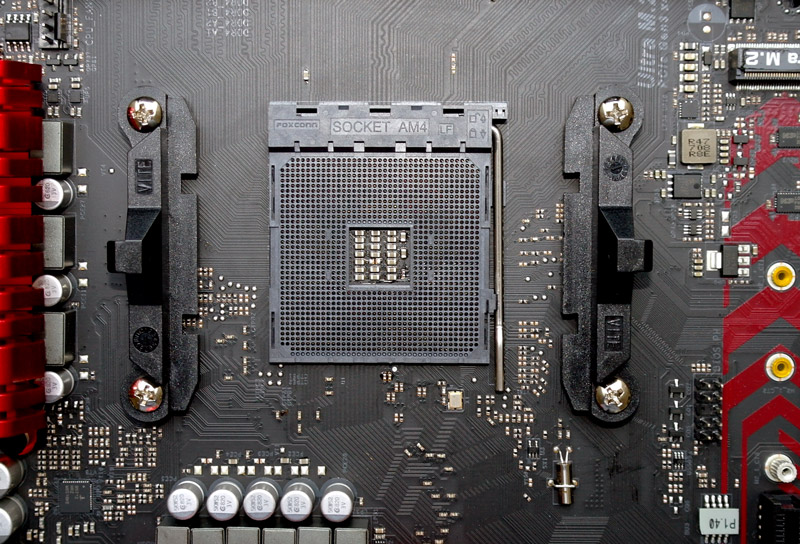

Now we come to the AMD AM4 CPU socket.
asrock_ab350_gaming_k4_12

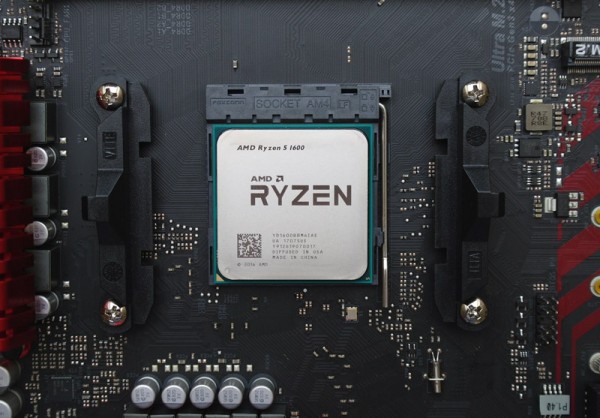

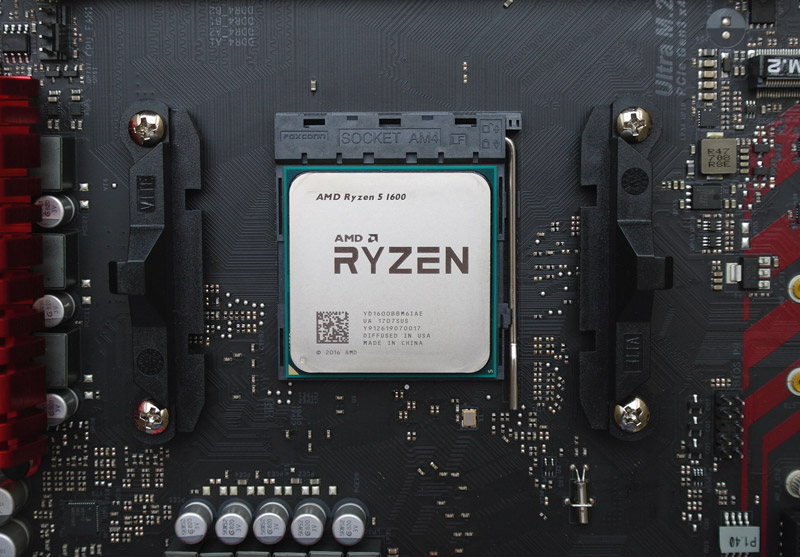

First, we have installed the new AMD Ryzen 5 1600 Summit Ridge, then we have tested the motherboard with an AMD Ryzen 7 1800X CPU and hopefully also soon with an A Series Bristol Ridge processor with integrated GPU.
asrock_ab350_gaming_k4_13

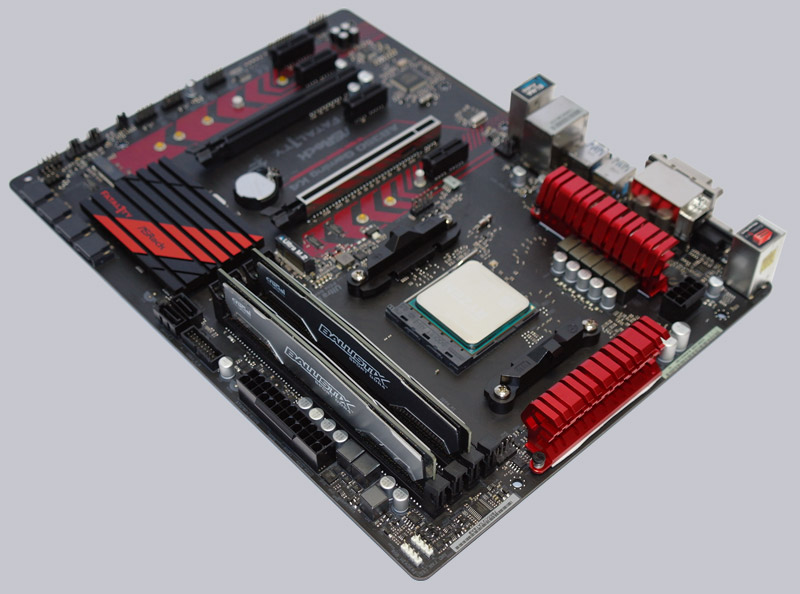

This is how two of four possible memory modules have to be installed on this AMD B350 motherboard to get dual channel mode support.
asrock_ab350_gaming_k4_14

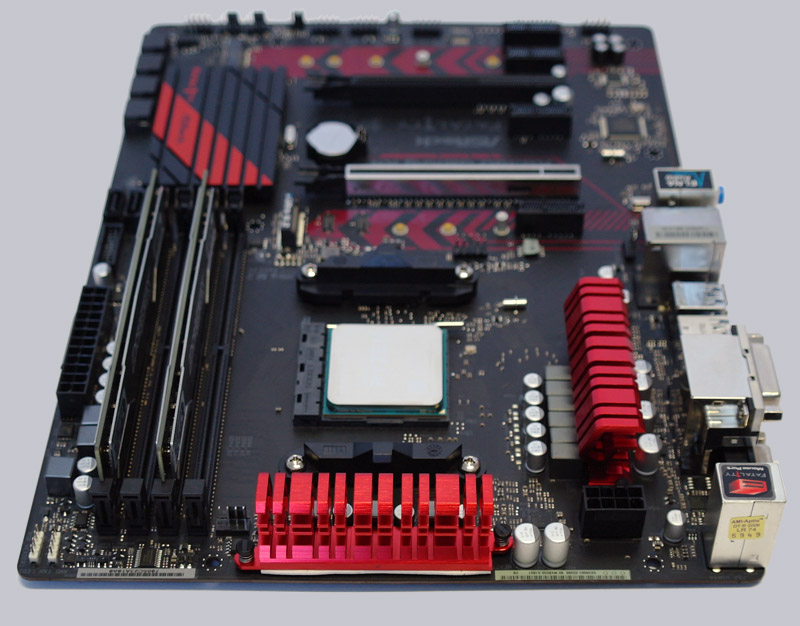

Here is again a side view of the correct memory assembly.
asrock_ab350_gaming_k4_15

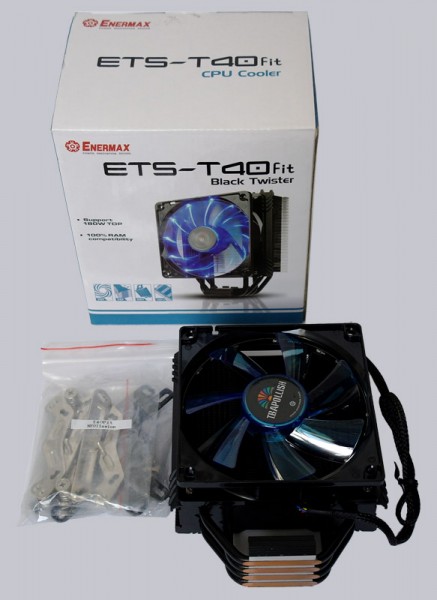

As we have already reported in detail on OCinside.de, for many CPU coolers new AMD Ryzen upgrade kits are required. To test such a AM4 upgrade kit, we have requested one from the company Enermax to make the tested Enermax ETS-t40f-BK suitable for AMD Ryzen.
asrock_ab350_gaming_k4_16

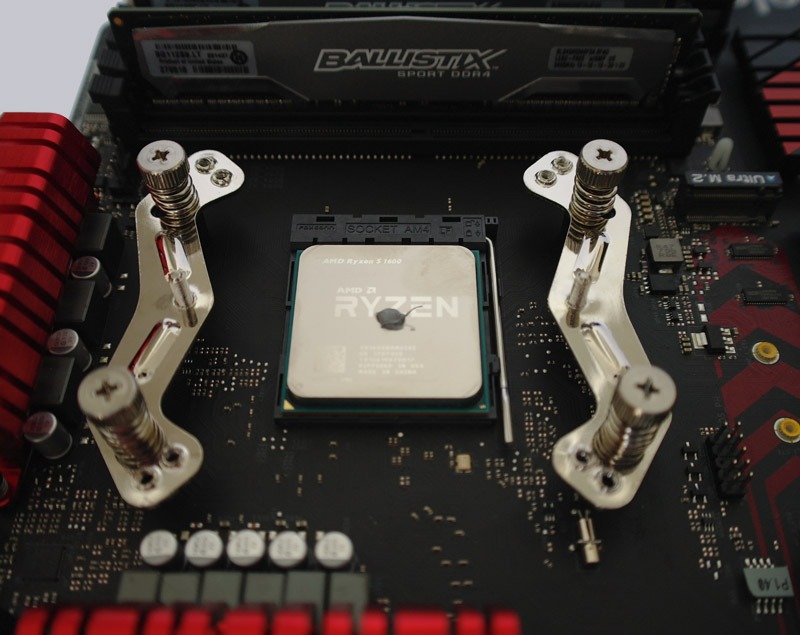

Here you can see the pre-assembled mounting bracket of the AM4 upgrade kit. Now put a drop of thermal paste on the CPU and install the cooler.
asrock_ab350_gaming_k4_17

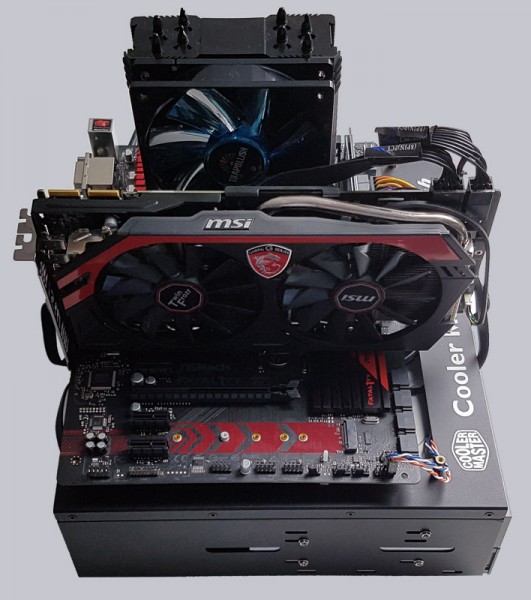

Here is the AMD AM4 test system with the Enermax ETS-T40Fit cooler MSI Radeon R9 280 video card.
asrock_ab350_gaming_k4_18

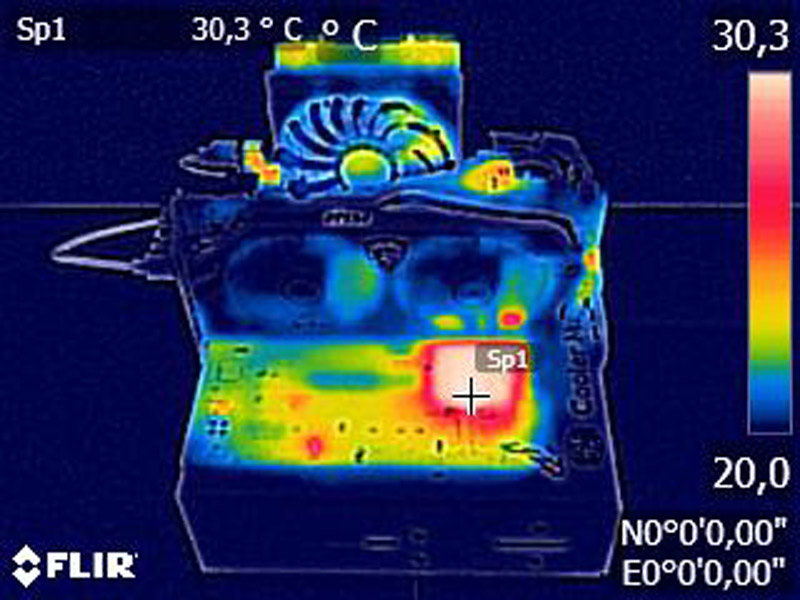

The AMD Promontory B350 Mainstream chipset stays cool, as you can see here on the thermal image.
asrock_ab350_gaming_k4_19

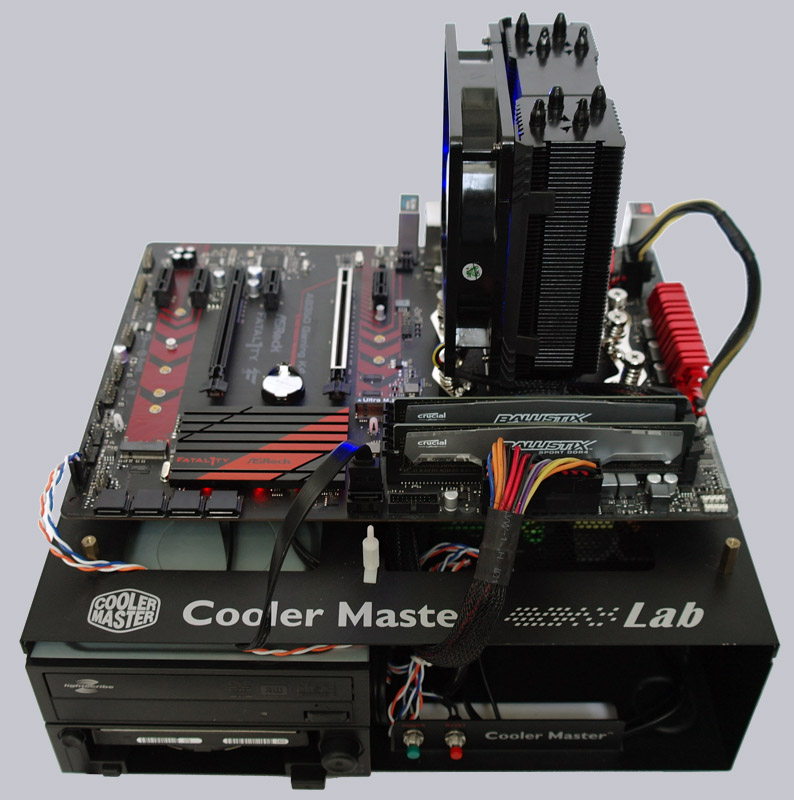

And here you can see the Intel test system with the new Icy Dock MB171SP-B Turbo Swap for fast replacement of SSD and HDD from front, this time without graphics card.
asrock_ab350_gaming_k4_20

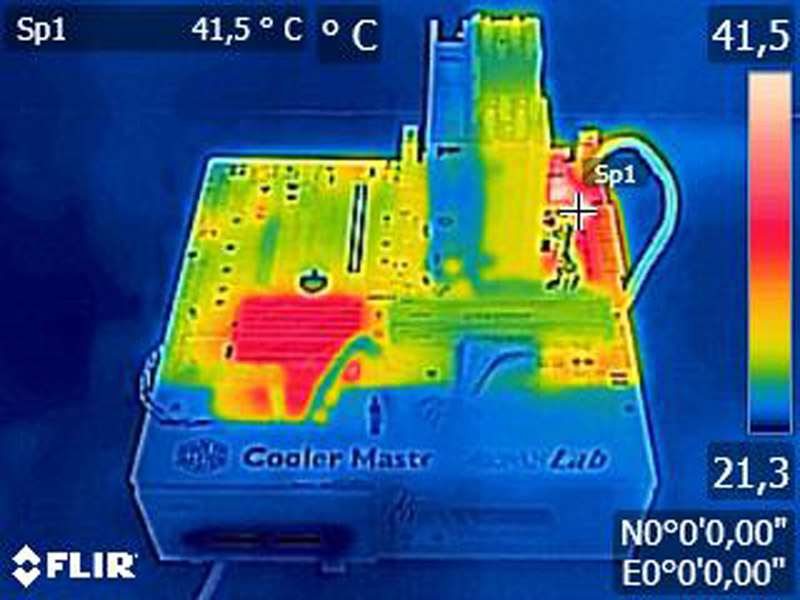

Without graphics card you can see very good the thermal distribution on the ASRock Fatal1ty AB350 Gaming K4 motherboard. In the left part, you can see the AMD B350 cooler temperature in the upper right you can see a clear temperature increasement of the voltage regulators.
asrock_ab350_gaming_k4_21

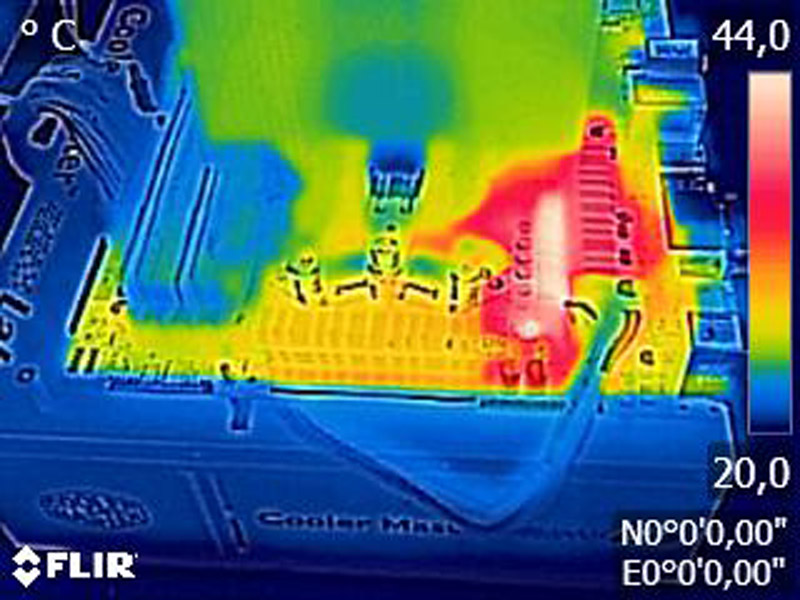

And here is another thermal picture of the voltage converters and 42A power chokes on the ASRock Fatal1ty AB350 Gaming K4 motherboard, to see the heating during higher overclocking.
asrock_ab350_gaming_k4_22

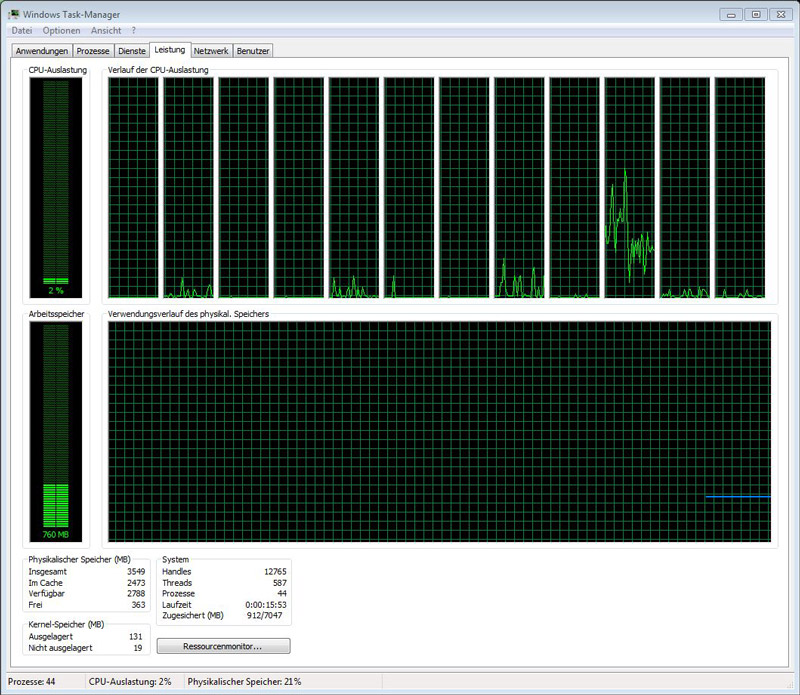

Here you can see the 6 cores with SMT (12 threads) of the AMD Ryzen 5 1600 CPU in the task manager.
asrock_ab350_gaming_k4_34

And these are the 8 cores with SMT (16 threads) of the AMD Ryzen 7 1800X CPU in the task manager.
asrock_ab350_gaming_k4_35

ASRock Fatal1ty AB350 Gaming K4 BIOS and Overclocking …
