The technical data of the Sapphire Nitro+ S360-A AIO …
| Manufacturer | Sapphire |
| Designation | Nitro+ S360-A |
| Product number | S360-A |
| Radiator | |
| Dimensions | 394mm x 120.5mm x 27mm |
| Dimensions with fan | 394mm x 120.5mm x 52.5mm |
| Material | Aluminium |
| Fan | |
| Description | FD1225H12D |
| Fan dimensions | 120 x 120 x 25,5mm |
| Fan bearing | Dual Ball Bearing |
| Rated voltage | 12V | Fan power consumption | 0.35A | Power consumption fan | 4.2W |
| Fan speed | 250-2400 +- 300 rpm |
| Connection | Proprietary |
| Water pump | |
| Material CPU Block | Copper |
| Rated voltage | 12V |
| Pump speed | 800 – 2800 + 300 rpm |
| Connection | SATA (Power), 1x 4 pin PWM fan, 1x 3pin aRGB in, 1x 3pin aRGB out, 1x CPU fan, Proprietary fan connector 8 pin |
| Socket compatibility | AMD AM4 Intel LGA115X/1200/20XX/1700 |

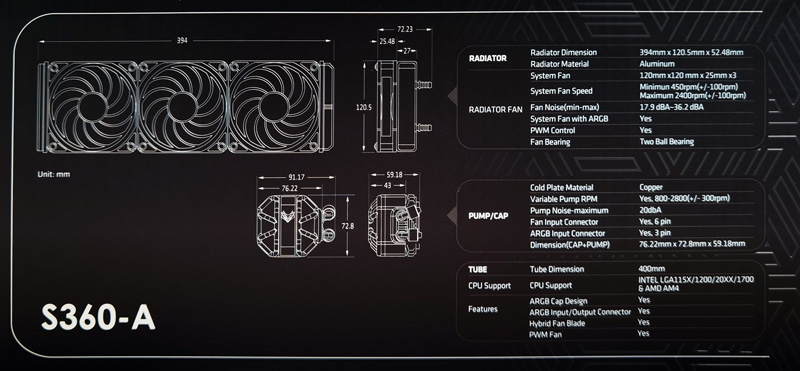

Sapphire Nitro+ S360-A Layout, design and features …
