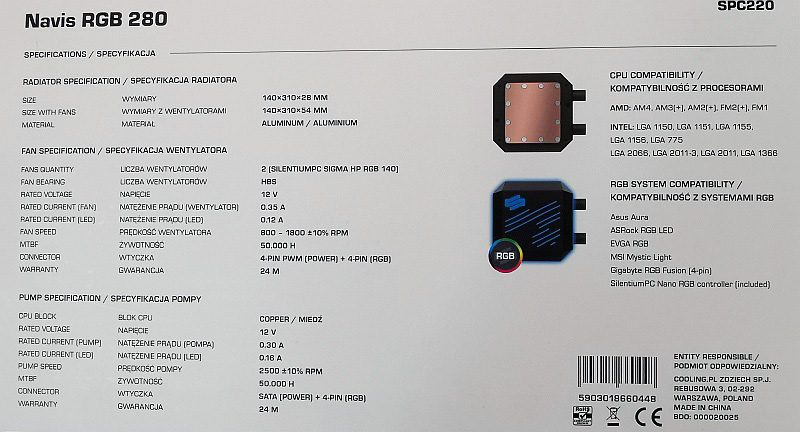

The technical data …
| Manufacturer | SilentiumPC |
| Description | Navis RGB 280 |
| Manufacturercode | SPC220 |
| Radiator | |
| Dimensions | 140 x 310 x 28 mm |
| Dimensions with fan | 140 x 310 x 54 mm |
| Material | Aluminum |
| Fan | |
| Description | 2x SilentiumPC Sigma HP RGB 140 |
| Dimensions fan | 2x 140 x 140 x 25 mm |
| Fan bearing | Liquid bearing (HBS) |
| Rated voltage | 12V |
| Fan power consumption | 0.35A |
| Rated consumption LED | 0.12A | Fan speeds | 800 – 1800 U/Min +/- 10% |
| Estimated lifetime | 50 000 hours |
| Connectors | 4 Pin PWM (Fan) + 4 Pin (RGB) |
| Water pump | |
| Material CPU Block | Kupfer |
| Rated voltage | 12V |
| Pump current consumption | 0.30A |
| Power consumption LED | 0.16A |
| Pump speed | 2500 U/Min +/- 10% |
| Estimated lifetime | 50 000 hours |
| Connectors | SATA (Power) + 4 Pin (RGB) |
| Socket compatibility | Intel 775, 1150, 1151, 1155, 1156, 1366, 2011, 2011-3, 2066 AMD FM1, FM2, FM2+, AM2, AM2+, AM3, AM3+, AM4 |
| RGB compatibility | ASRock RGB LED, Asus Aura, EVGA RGB, MSI Mystic Light, Gigabyte RGB Fusion (only 4 Pin), SilentiumPC Nano RGB Controller (included) |
