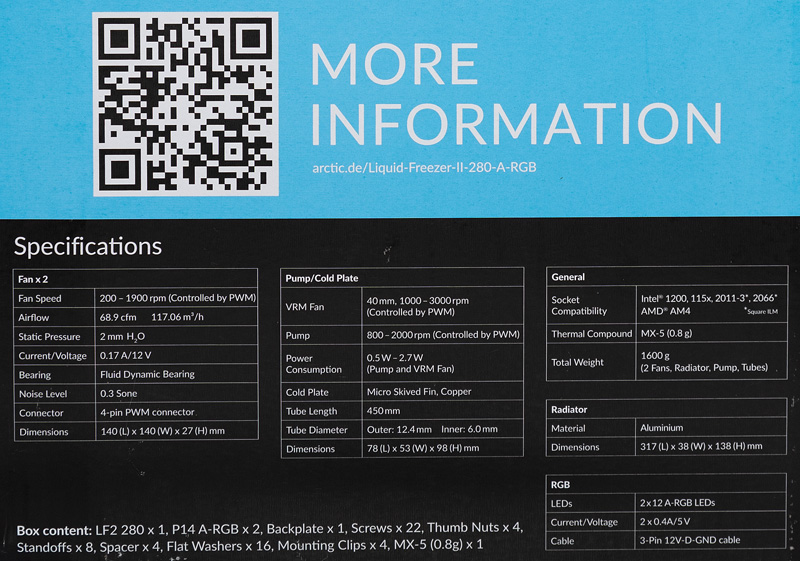

The technical data der Arctic Liquid Freezer II 280 A-RGB AIO …
| Manufacturer | Arctic |
| Description | Liquid Freezer II 280 A-RGB |
| Product number | ACFAN00106A |
| Fan model | Arctic P14 PWM PST A-RGB |
| Fan dimensions | 140 x 140 x 27 mm (HxWxD) |
| Fan speed | 200-1900 rpm |
| Air flow | max. 68.9 CFM 117.06 m³/h |
| Air pressure | 2 mmH2O at 1900 rpm |
| Fan volume | 0.3 Sone at 1900 rpm |
| Fan bearing | Liquid plain bearing |
| Fan power consumption | 0.17 A max. |
| Power consumption RGB per fan | 0.4 A max. |
| Fan connection type | 4 Pin PWM |
| Dimensions VRM fan | Diameter 40mm |
| Speed VRM fan | 1000-3000 rpm |
| Connection type VRM fan | connected to pump |
| Dimensions Radiator | 317 x 138 x 38 mm (HxWxD) |
| Material Radiator | Aluminium |
| Pump speed | 800-2000 rpm |
| Connection type pump | 4 Pin PWM |
| Power pump + VRM fan | 0,5 – 2,7W gesamt |
| Dimensions Radiator block | 98 x 78 x 53 mm (HxWxD) |
| Hose length | 450 mm |
| Hose diameter | inside: 6mm outside: 12,4mm |
| Socket compatibility | Intel 115x / 1200 Intel 2011-3 + 2066 Partially restricted AMD AM4 |
| RGB System | 12 RGB LED per fan A-RGB 5V 3-pin fan with A-RGB Y-splitter |
| Total Weight | 1600 Gramm |
| Warranty | 6 years |
Meanwhile, the warranty for all Liquid Freezer II coolers has been increased to 6 years. Compatibility exists for the Intel sockets 115x, 1200, 2011-3 and 2066 and now also for the socket LGA 1700. Despite a larger heatspreader for Intel’s 12th Gen. Core CPUs, Arctic guarantees optimal heat dissipation with the Liquid Freezer 2 water cooler. Unfortunately, there are now some motherboards with LGA 1700 socket from different manufacturers known, where the Liquid Freezer 2 water cooler can not be mounted due to space limitations. On the following page you can check if your own motherboard is affected: support.arctic.de/LF2-280-ARGB.
In terms of AMD, only socket AM4 is now supported, although for AMD Ryzen 3000/5000 (Zen2 / Zen3) CPUs the cooler can be mounted offset to better place the cooler over the hotspot of the CPU. The mounting holes for AM3 have since been removed from the brackets.
Liquid Freezer II 280 A-RGB Wasserkühlung Layout, design and features …
