Arctic Liquid Freezer III 280 A-RGB Review

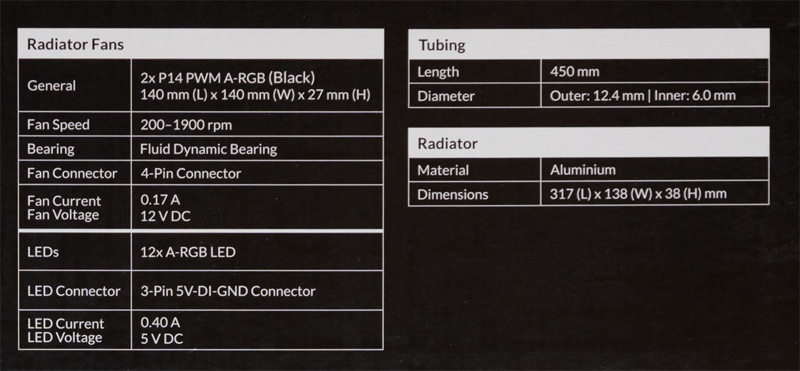

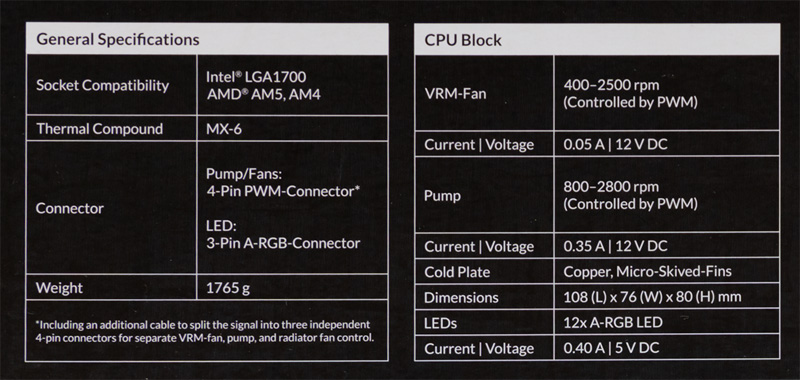

The technical data des Liquid Freezer III 280 A-RGB Black …

Manufacturer Arctic
Description Liquid Freezer III 280 A-RGB Black
Product number ACFRE00143A
Fan model Arctic P14 PWM PST A-RGB
Fan dimensions 140 x 140 x 27 mm (HxBxT)
Fan speed 200-1900 rpm
Air flow max. 68,9 CFM
117,06 m³/h
Air pressure 2 mmH2O at 1900 rpm
Fan volume 0,3 Sone at 1900 rpm
Fan bearing Fluid plain bearing
Fan power consumption 0,17 A max.
Power consumption RGB per fan 0,4 A max.
Fan connection type connected to pump,
separate PWM control possible
Dimensions VRM Fan Diameter approx. 50mm
Speed VRM Fan 400-2500 rpm
Connection type VRM Fan connected to pump
Separate PWM control possible
VRM fan power 0.05A / 0.6W
Power VRM A-RGB 0.4A / 5V / 2W
Dimensions Radiator 317 x 138 x 38 mm (LxWxD)
Material Radiator Aluminium
Pump speed 800-2800 rpm
Pump connection type 4 Pin PWM
Pump output 0.35A / 4.2W total
Dimensions Radiator block 108 x 76 x 80 mm (LxWxD)
Tube length 450 mm
Tube diameter inside: 6mm
outside: 12.4mm
Socket compatibility Intel LGA 1700
RGB System 12 addressable RGB LEDs per fan
A-RGB 5V 3-pin
Radiator fan with A-RGB Y-splitter
Total weight 1765 gram
Warranty 6 years

The technical data has changed little compared to the tried and tested Arctic Liquid Freezer II. The pump now manages a maximum of 2800 rpm instead of the previous 2000 rpm. However, we will check whether this has an effect on the noise development later.

The dimensions of the radiator and the fans have remained the same, as they proved to be exceptionally good in the previous model. The new top thermal paste Arctic MX-6 is sufficient for approx. 2-3 applications and the 6-year warranty is also included again.

Next, we take a close look at the individual components of the new water cooler from Arctic.

Arctic Liquid Freezer III Layout, design and features …
