The technical data …
| Manufacturer | Cooler Master |
| Description | MasterLiquid ML240L V2 RGB |
| Product number | MLW-D24M-A18PC-R2 |
| Fan dimensions | 120 x 120 x 25 mm (HxWxD) |
| Fan speed | 650-1800 rpm |
| Air flow | max. 62 CFM |
| Air pressure | max. 2.5 mmH2O |
| Fan volume | 8 – 27 dBA (according to manufacturer) |
| Fan power consumption | 0.15 A only fan 0,37 A (incl. RGB lighting) |
| Fan connection type | 4 Pin PWM + 4 Pin RGB 12V |
| Fan lifetime | MTTF 160 000 h |
| Dimensions Radiator | 277 x 120 x 27 mm (HxWxD) |
| Material Radiator | Aluminium |
| Pump connection type | 3 pin fan connector 12V and 4 pin RGB 12V |
| pump speed | no specification, throttling not recommended |
| power consumption pump | 2.36 W |
| Dimensions cooler/pump block | 80 x 76 x 47 mm (LxWxD) |
| Pump lifetime | MTTF 70 000 h |
| Tube length | 300 mm (incl. fittings) |
| Socket compatibility | Intel 115X; 1366, 2011, 2011-V3, 2066 AMD FM1, FM2, AM2, AM3, AM4 |
| Compatible RGB systems | ASUS Aura Sync, ASRock Polychrome Sync, Gigabyte RGB Fusion, MSI Mystic Light Sync |
| Guarantee | 2 years |

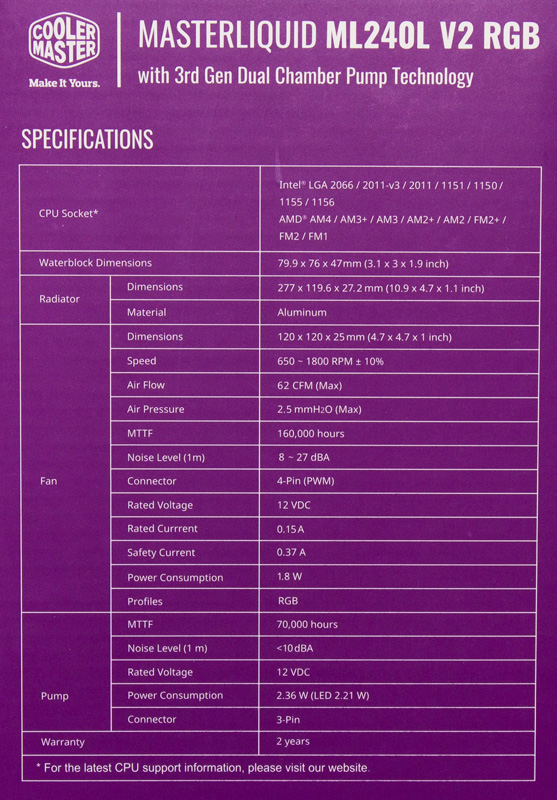

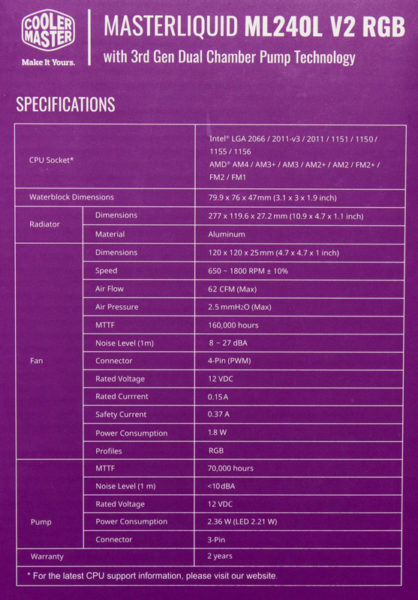

Here is a photo of the data on the product packaging.

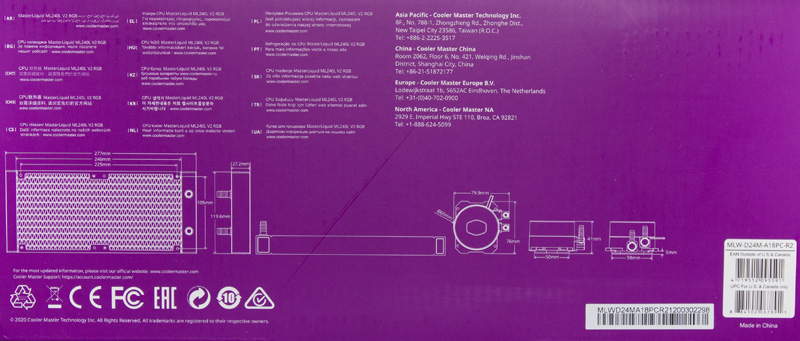

The main dimensions of the water cooler are also printed on the outside of the box. However, Cooler Master is silent about the relatively short tube length.
Next, we’ll see what improvements Cooler Master has made to the refreshed design.
Cooler Master MasterLiquid ML240L V2 RGB Layout, design and features …
