Technical data …
| Manufacturer | Cryorig |
| Description | C7 CR-C7A |
| Socket | Intel LGA 1150, 1151, 1155, 1156; AMD Sockel FM1, FM2(+), AM2(+), AM3(+) |
| Heatpipes | 4x 6mm |
| Material base | nickel-plated copper |
| Size including fan (L x W x H) | 97 x 97 x 47mm |
| Weight without fan | 295g |
| Size fan | 92 x 92 x 15mm |
| Voltage | 12 V DC |
| Power intake | 0.2 A / 2.4 W |
| Fan speed | 600 – 2500 rpm |
| Airflow | 40.5 CFM |
| Loudness | 30 dBA |
| Fan connector | 4-Pin PWM |

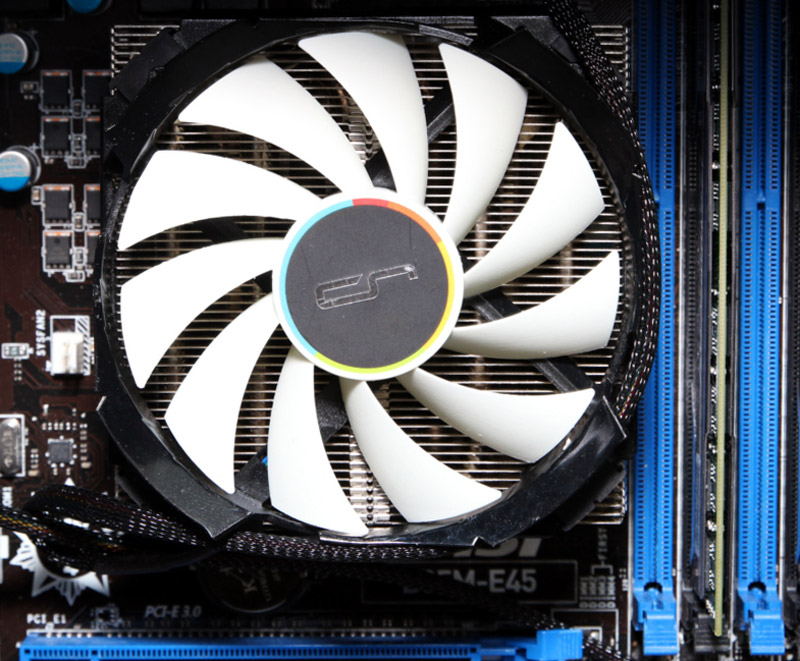

Cryorig C7 layout, design and other features …
