The technical data …
| Manufacturer | Icy Dock |
| Description | ToughArmor MB516SP-B |
| Dimensions | 157.5 x 146 x 84mm (LxWxH) |
| Color | Black |
| Weight | 1550 g |
| Host Interface | 4 x miniSAS HD (SFF-8643) |
| Number of media | 16x S-ATA/SAS |
| Power supply | 4x S-ATA |
| Übertragungsrate | SATA up to 6GBit/s (depending on drive speed) SAS up to 12GBit/s (single channel) |
| Compatible drives | 2.5″ drives up to max. 7mm height |
| Suitable for | 2x 5.25″ Drive bays |
| Status-LED | Ready for operation: Green lit Access: Green flashing |
| Material | Metal |
| Cooling | Active cooling via rear 80 mm fan (regulated), but also passive cooling via heat dissipation via metal. |
| Manufacturer warranty | 3 years |
The specifications on the box are interestingly different from those on the website. The box specifies only 1x S-ATA as the power connector, but the 4x S-ATA specified on the website is correct. The box certifies a maximum data rate of 6 Gbit/s, while the website states 12 Gbit/s. Mini-SAS HD has a capacity of 4x 12 Gbit/s and since the MB516SP-B has four Mini-SAS HD connections with four lanes each, each drive should be connected with 12 Gbit/s as stated on the website, if it is a SAS drive. Thus, the MB516SP-B supports a total data rate of 4x (4x 12 Gbit/s) = 192 Gbit/s when fully equipped with SAS SSDs. Thus, the limiting factor is rather the HBA or its PCI-E slot, but more about that later.

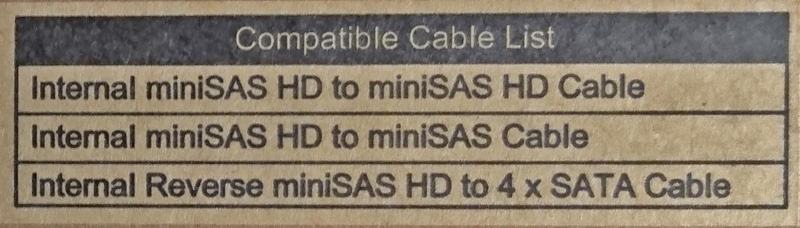

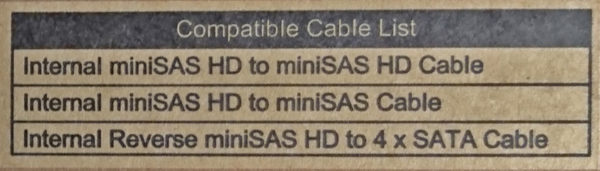

Furthermore, compatibility information has been added on the box via stickers. Thus, the removable frame can alternatively be connected via:
– Internal miniSAS HD to miniSAS HD Cable
– Internal miniSAS HD to miniSAS Cable
– Internal Reverse miniSAS HD to 4x SATA Cable
Consequently, you can connect the removable frame in different ways, even directly with SATA connections. Of course, a reduction to a maximum of 6 Gbit/s per drive has to be accepted.
Another possibility to connect the MB516SP-B, which also works, was not listed here. But more about that later.
