The technical data …
| Manufacturer | Icy Dock |
| Label | MB524SP-B |
| Dimensions | 147.6mm x 146mm x 41.3mm / 5.25″ |
| Color | black |
| Weight | 558.3g |
| Fans | 1x 40mm Lüfter, |
| Connectors | 1x 15 pin SATA power connector / 4x 7 pin SATA data connector |
| Compatible drives | 4x 2.5″ SAS (Single-Channel) / SATA HDD / SSD |
| Supported heights | Up to 9.5mm |
| Transmission rate | Up to 6GBit/s (depending on drive speed) |
| Connectivity | Direct SATA connector |
| Material | Metal case, partly plastic |
| LED indication |
Ready for operation (blue light) HDD access (flashing blue) |
| Hot-Swap-function | yes |
| Manufacturer’s guarantee | 3 years |

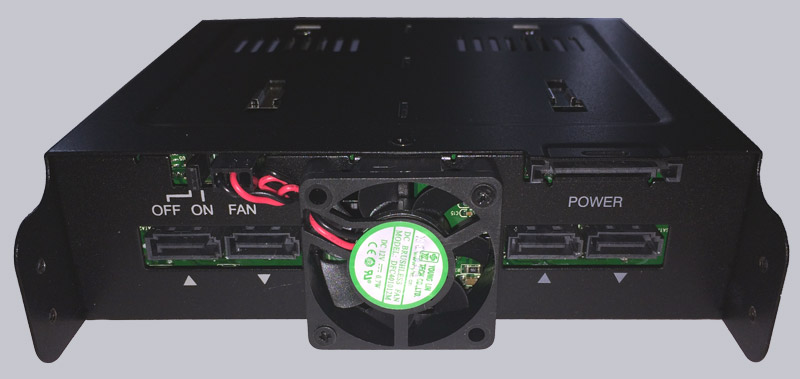

In the following table we have collected a short overview with the technical data of the fan.
| Manufacturer and label | YOUNG LIN TECH DDDFC401012M |
| Voltage | 12V DC |
| Operating voltage range | 10.8-13.2V DC |
| Start-up voltage | 9V DC |
| Current | 0.6A |
| Power usage | 0.7W |
| Max. rotations | 5400 rpm +-15% |
| Air flow | 4.78-6.45 CFM |
| Volume level | 24.87 dBa |
| Life expectancy | 30000 h |
Icy Dock FlexiDock MB524SP-B mobile rack layout, design and features …
