The technical data …
Of course, we are also interested in the technical data, so here is an overview:

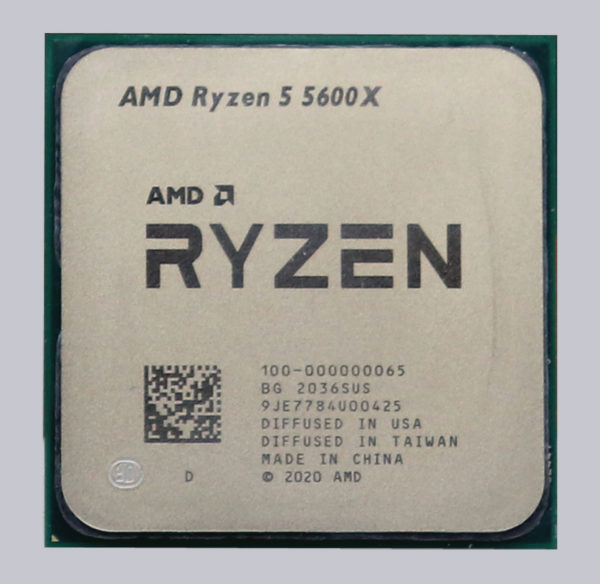

| Manufacturer | AMD |
| Description | Ryzen 5 5600X |
| Model number | 100-000000065BOX |
| Socket | AM4 |
| Number of cores | 6 |
| Number of threads | 12 |
| Base clock rate | 3.7GHz |
| Max. Power clock rate | 4.6GHz |
| Total L1 cache | 512KB |
| Total L2 cache | 3MB |
| Total L3 cache | 32MB |
| Multiplier | open |
| manufacturing process | TSMC 7nm FinFET |
| PCI Express Version | PCIe 4.0 x16 |
| Standard power consumption / TDP | 65W |
| Max. Memory clock frequency | 3200MHz |
| Memory type | DDR4 |
| Platform | Desktop |

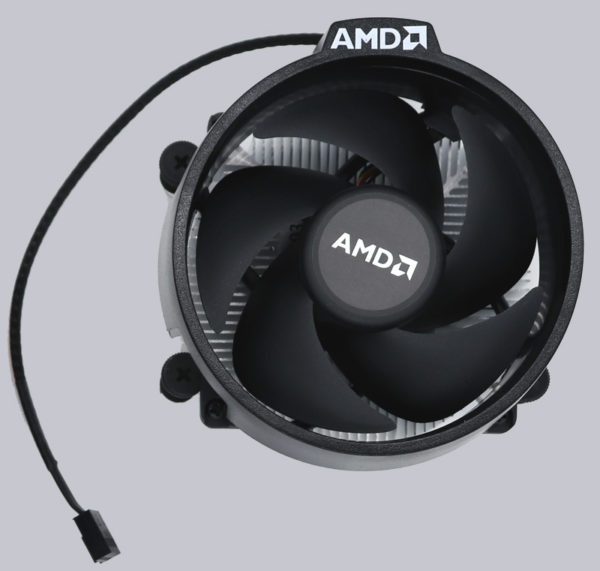

Of course, we won’t leave out the included cooler.
| Manufacturer | AMD |
| Description | Wraith Stealth |
| Model number | 712-000046 Rev:D |
| Socket | AM4 |
| Cooling capacity | 65W |
| Weight | 293g |
| Dimensions (WxHxD) | 103x56x109mm |
| Design | Top-blow cooler |
| Connection | 4-pin PWM |
AMD Ryzen 5 5600X layout, design and features …
