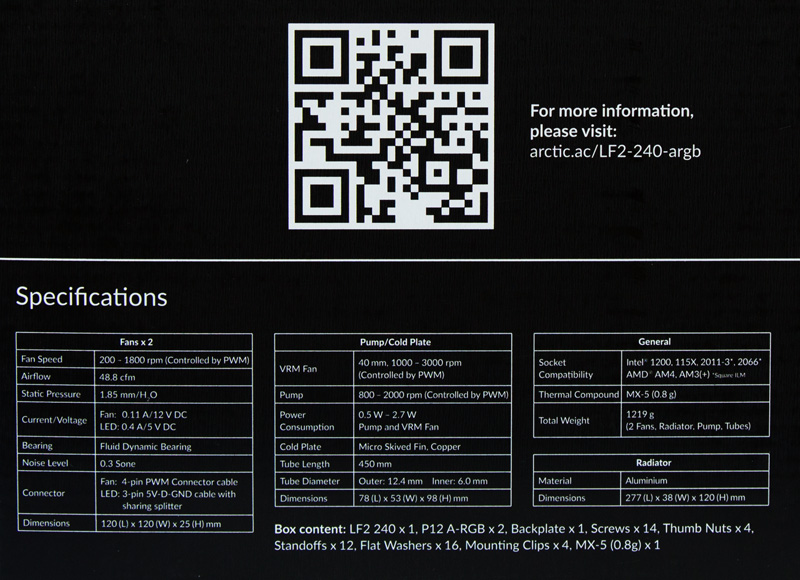

The technical data of the Arctic Liquid Freezer II 240 A-RGB AIO …
| Manufacturer | Arctic |
| Description | Liquid Freezer II 240 A-RGB |
| Product number | ACFRE00093A |
| Fan model | Arctic P12 PWM PST A-RGB |
| Fan dimensions | 120 x 120 x 25 mm (HxWxD) |
| Fan speed | 200-1800 rpm |
| Air flow | max. 48.8 CFM |
| Air pressure | 1.85 mmH2O at 1800 rpm |
| Fan volume | 0.3 sone at 1800 rpm |
| Fan bearing | Liquid plain bearing |
| Fan power consumption | 0.11 A max |
| Power consumption RGB per fan | 0.4 A max. |
| Fan connection type | 4 pin PWM |
| Dimensions VRM fan | Diameter 40mm |
| Connection type VRM fan | Connected to pump |
| Dimensions Radiator | 277 x 120 x 38 mm (HxWxD) |
| Material Radiator | Aluminum |
| Rotation speed pump | 800-2000 rpm |
| Pump connection type | 4 pin PWM |
| Power pump + VRM fan | 0.5 – 2.7W total |
| Dimensions radiator block | 98 x 78 x 53 mm (HxWxD) |
| Hose length | 450 mm |
| Socket compatibility | Intel 115x / 1200 Intel 2011-3 and 2066 restricted AMD AM4 / AM3+ |
| RGB system | 12 RGB LED per fan A-RGB 5V 3-pin Fan with A-RGB splitter |
| Total weight | 1219 grams |
| Warranty | 6 years |
Compared to the previous Liquid Freezer II models, the warranty has now been increased to 6 years, which is a very clear sign from Arctic that they also stand by the quality of their product. Like the last revision of the unlit models, compatibility with Intel sockets 115x , 1200, 2011-3 and 2066 is given here. On the AMD side, the AM4 and AM3+ sockets are supported, although for Ryzen 3000/5000 CPUs, the cooler can be mounted offset to better place the cooler over the hotspot of the CPU.
Liquid Freezer II 240 A-RGB water cooling Layout, design and features …
